Installation Procedure
- Place the window module in position in the door.

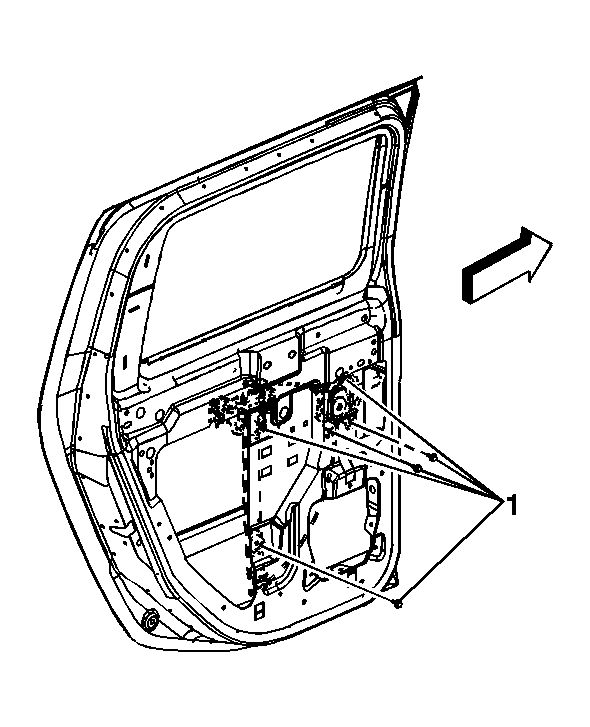

- Install the 5 fasteners (1) to the window regulator.
Tighten: Tighten the fasteners to 9 N.m (7 lb ft).
- Place the window in the window clamps, and tighten the clamps.
Tighten: Tighten the clamps to 9 N.m (7 lb ft).
- Connect the window motor electrical connector.
- Operate the window module to inspect for proper operation.
- Install the water deflector. Refer to Water Deflector Replacement - Front Door .
- Install trim panel. Refer to Trim Panel Replacement - Side Front Door .
