2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

Removal Procedure

CAUTION: Refer to SIR Caution .

Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
Remove the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
Use the tilt lever to tilt the column to the UP position.

Fig 1: Tilting Column To Up Position
Courtesy of GENERAL MOTORS CORP.

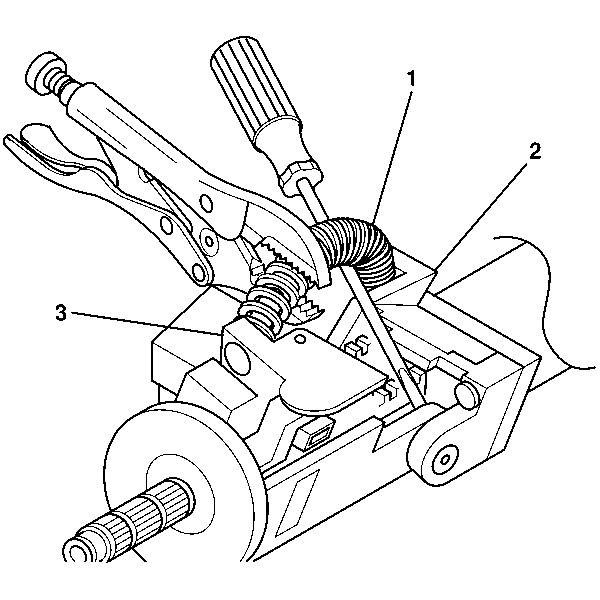

Fig 2: Removing Tilt Spring From Steering Column Support Assembly

Courtesy of GENERAL MOTORS CORP.
