2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Use the tilt lever to tilt the column to the UP position.

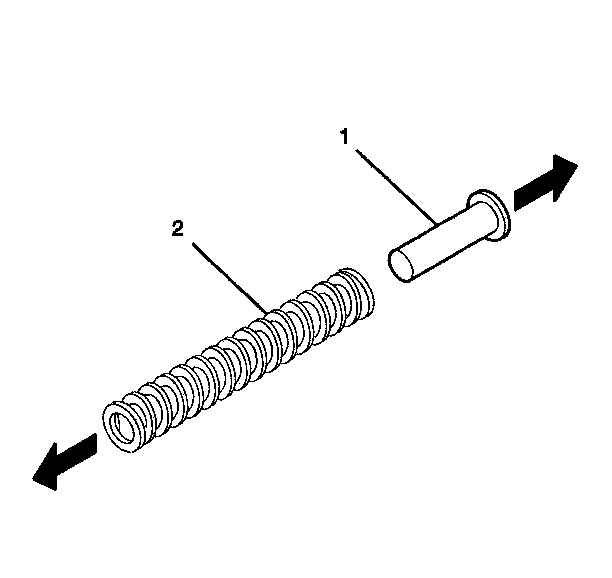

- Install the spring guide (1) into the tilt spring (2).
- Install the tilt spring (1) onto the steering column support assembly (2) and onto the steering column tilt head assembly by using the following procedure:
- Install the tilt spring (1) onto the steering column tilt head assembly.
- Install the tilt spring (1) onto the post on the steering column support assembly (2).
- Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
- Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
