2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the steering wheel. Refer to Steering Wheel Replacement .

Fig 1: View Of Shroud & Screws

Courtesy of GENERAL MOTORS CORP.

Remove the shroud retaining screws from the back of the steering wheel.
Remove the shroud from the steering wheel.

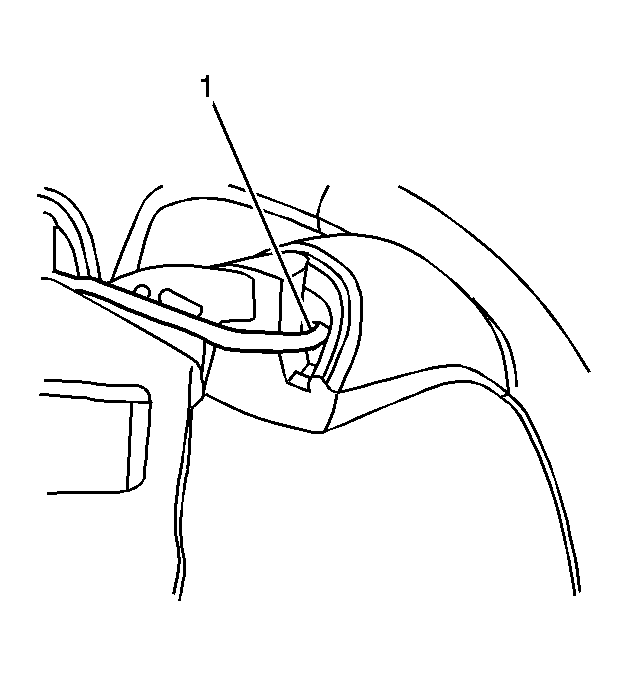

Fig 2: Locating Wire Harness Cavity

Courtesy of GENERAL MOTORS CORP.

Position a blunt ended tool into the wire harness cavity (1) and apply moderate pressure in order to partially remove the steering wheel control switch from the steering wheel.

Fig 3: View Of Steering Wheel Control Switch Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the steering wheel control switch electrical connector.

IMPORTANT: The bulbs in the steering wheel control switches are not serviceable. The switches should be replaced only as an assembly.

Remove the steering wheel control switch from the steering wheel.
