2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headliner. Refer to Headlining Trim Panel Replacement .

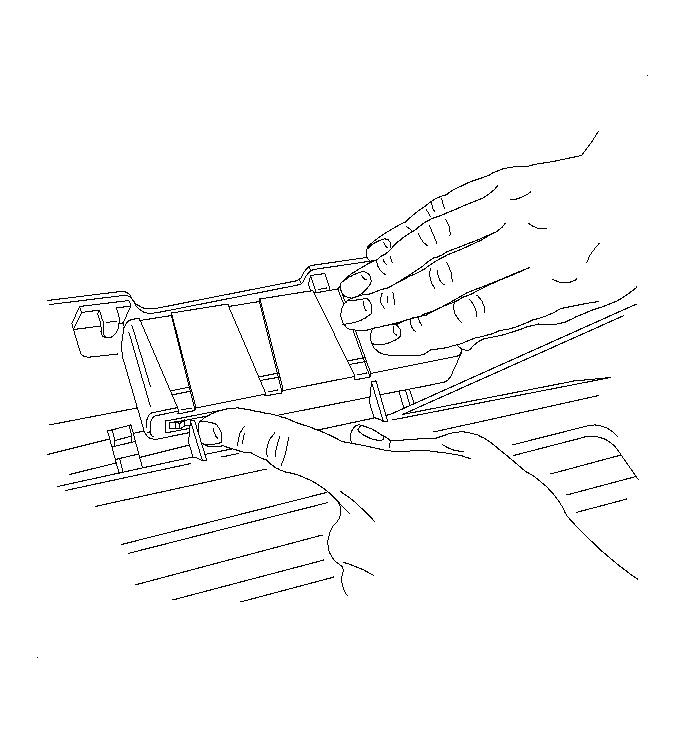

Fig 1: View Of Sunroof Control Module

Courtesy of GENERAL MOTORS CORP.

Depress the tab on the side of the control module.
With the tab depressed, slide the sunroof control module toward the sunroof motor. This will release the control module from the sunroof module.

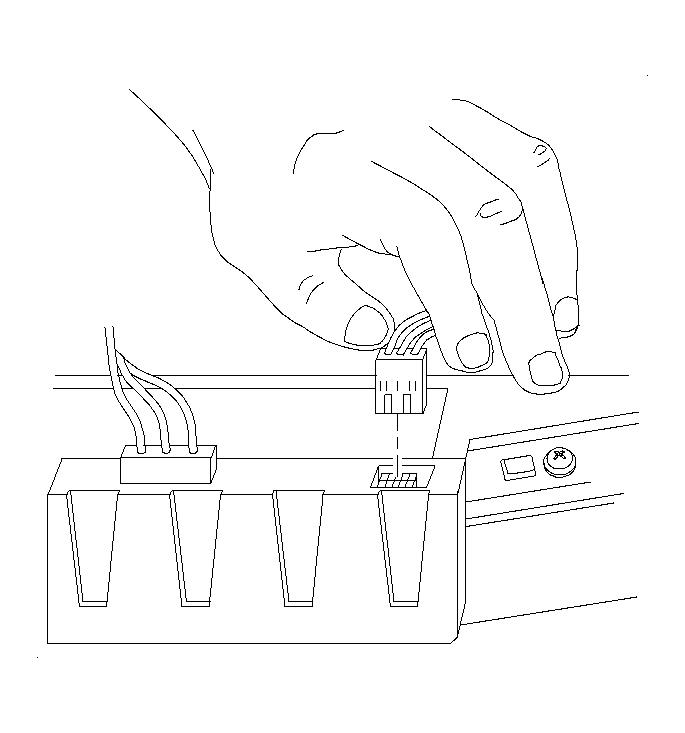

Fig 2: Disconnecting/Connecting Electrical Connector To Sunroof Control Module

Courtesy of GENERAL MOTORS CORP.

Remove the control module from the sunroof module and disconnect the electrical connector.
