2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connector to the sunroof control module.

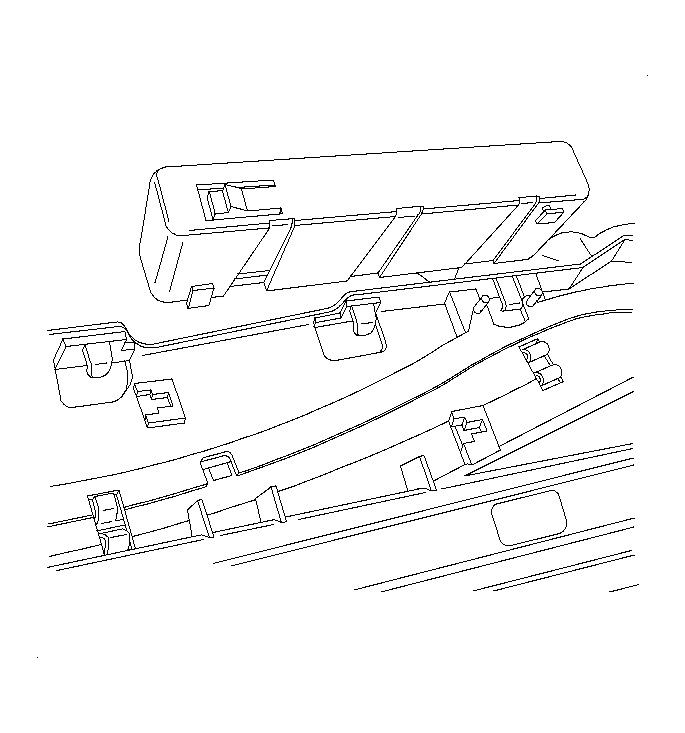

- Insert the control module tabs into the sunroof module slots.
- Slide the sunroof express module away from the sunroof motor until it is fully engaged.
- Verify the proper operation of the sunroof before securing the headliner.
- Install the headliner. Refer to Headlining Trim Panel Replacement .
- Refer to Control Module References for programming and setup information.
