2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Sunroof Control Module C1
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

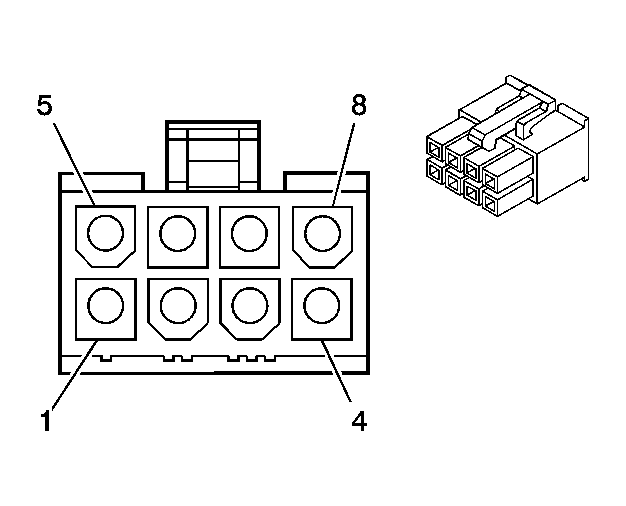

Sunroof Control Module C1 Connector Parts Information
Connector Part Information
|
Sunroof Control Module C1 Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | YE | 133 | Low Reference |
| 2-3 | - | - | Not Used |
| 4 | D-GN | 2074 | Sunroof Switch Express Signal |
| 5 | D-BU | 128 | Low Reference |
| 6 | BN | 100 | Sunroof Switch Open Signal |
| 7 | OG/BK | 144 | Sunroof Switch Open Vent Signal |
| 8 | RD | 132 | Sunroof Limit Switch Soft Stop Signal |
