2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER .
- Pull out the accessary switch housing.
- Disconnect the electrical connectors.

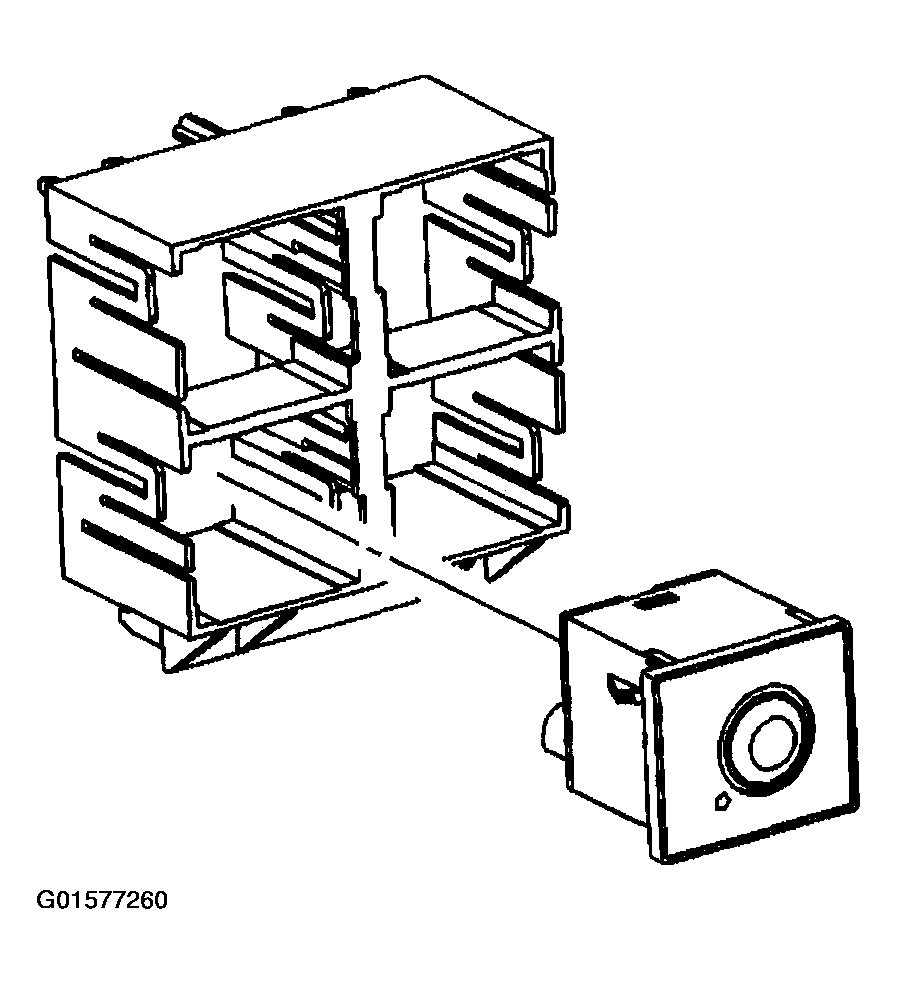

- Remove the fog lamp switch from the accessary switch housing.
