2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Front Toe Adjustment
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

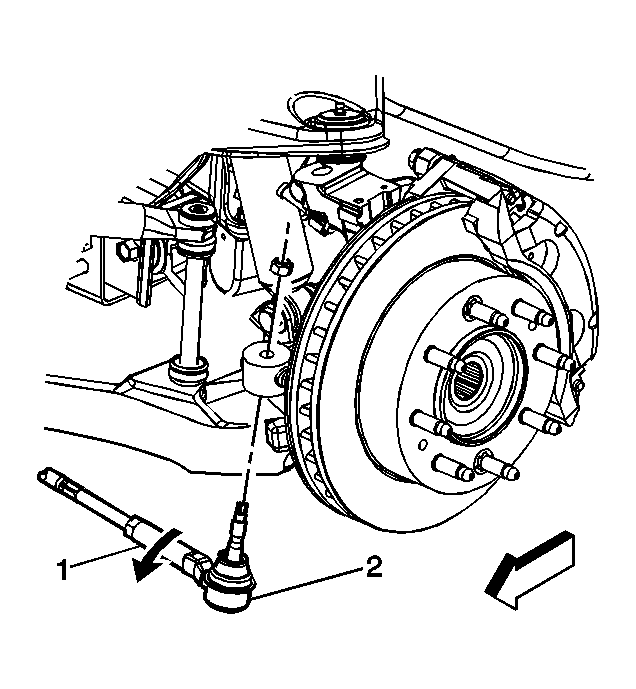

- Loosen the jam nut on the tie rod (1).
- Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications .
- Tighten the jam nut on the tie rod.
Tighten: Tighten the tie rod jam to 68 N.m (50 lb ft).
- Check the toe setting after tightening.
- Re-adjust the toe setting if necessary.
NOTE:
Refer to Fastener Notice in Cautions and Notices.
