2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

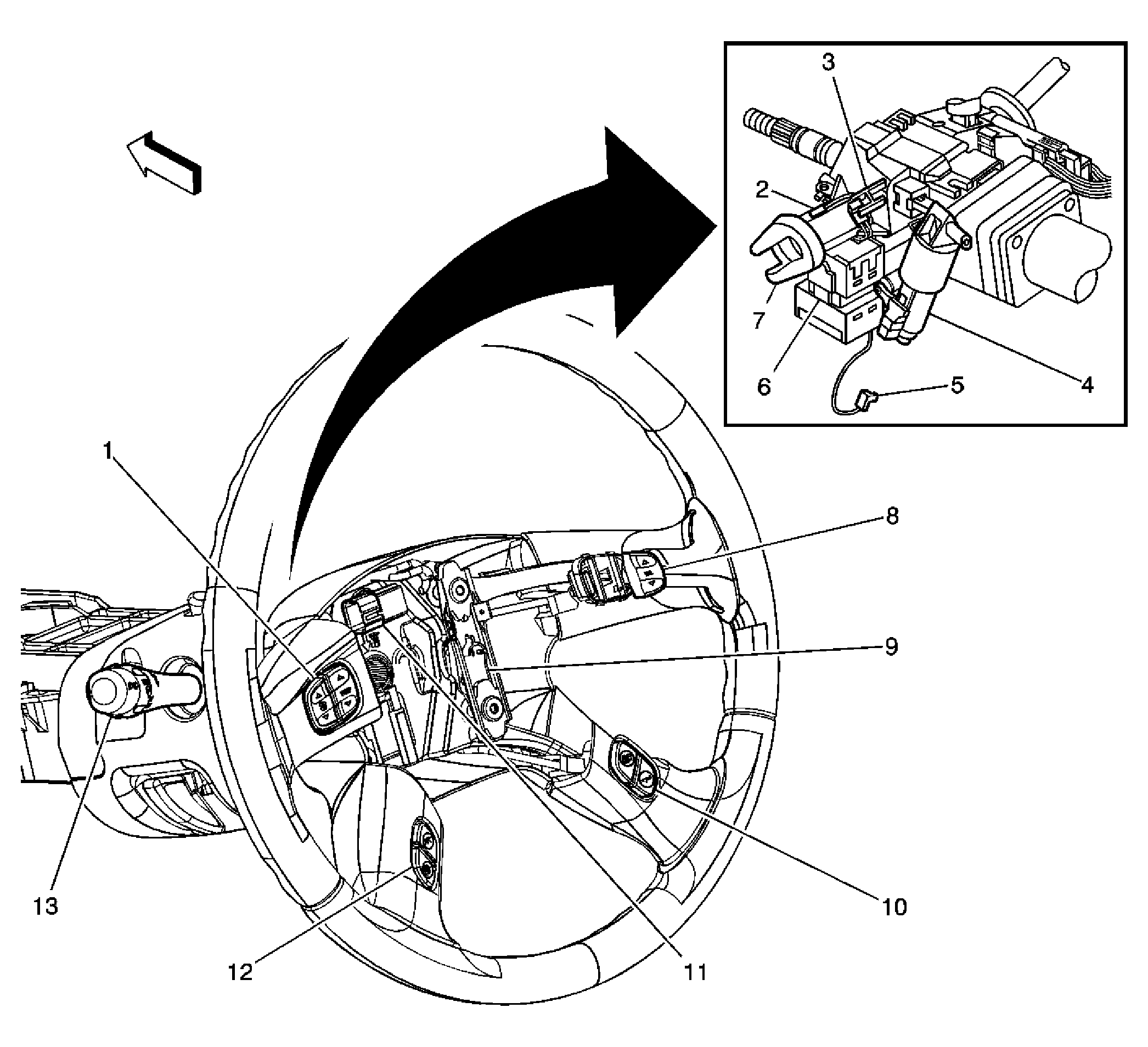

Cruise Control Component Views
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Steering Wheel Audio Controls - Left |
| 2 | Passlock Sensor Connector |
| 3 | Ignition Key Alarm Switch |
| 4 | Ignition Lock Cylinder Control Actuator |
| 5 | Ignition Lock Cylinder Control Actuator Connector |
| 6 | Ignition Switch |
| 7 | Ignition Key Cylinder |
| 8 | Steering Wheel Audio Controls - Right |
| 9 | Horn Switch |
| 10 | Steering Wheel Driver Information (DIC) Controls - Right |
| 11 | C277 |
| 12 | Steering Wheel Driver Information Center (DIC) Controls - Left |
| 13 | Turn Signal/Multifunction Switch |
