2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Entertainment Component Views
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

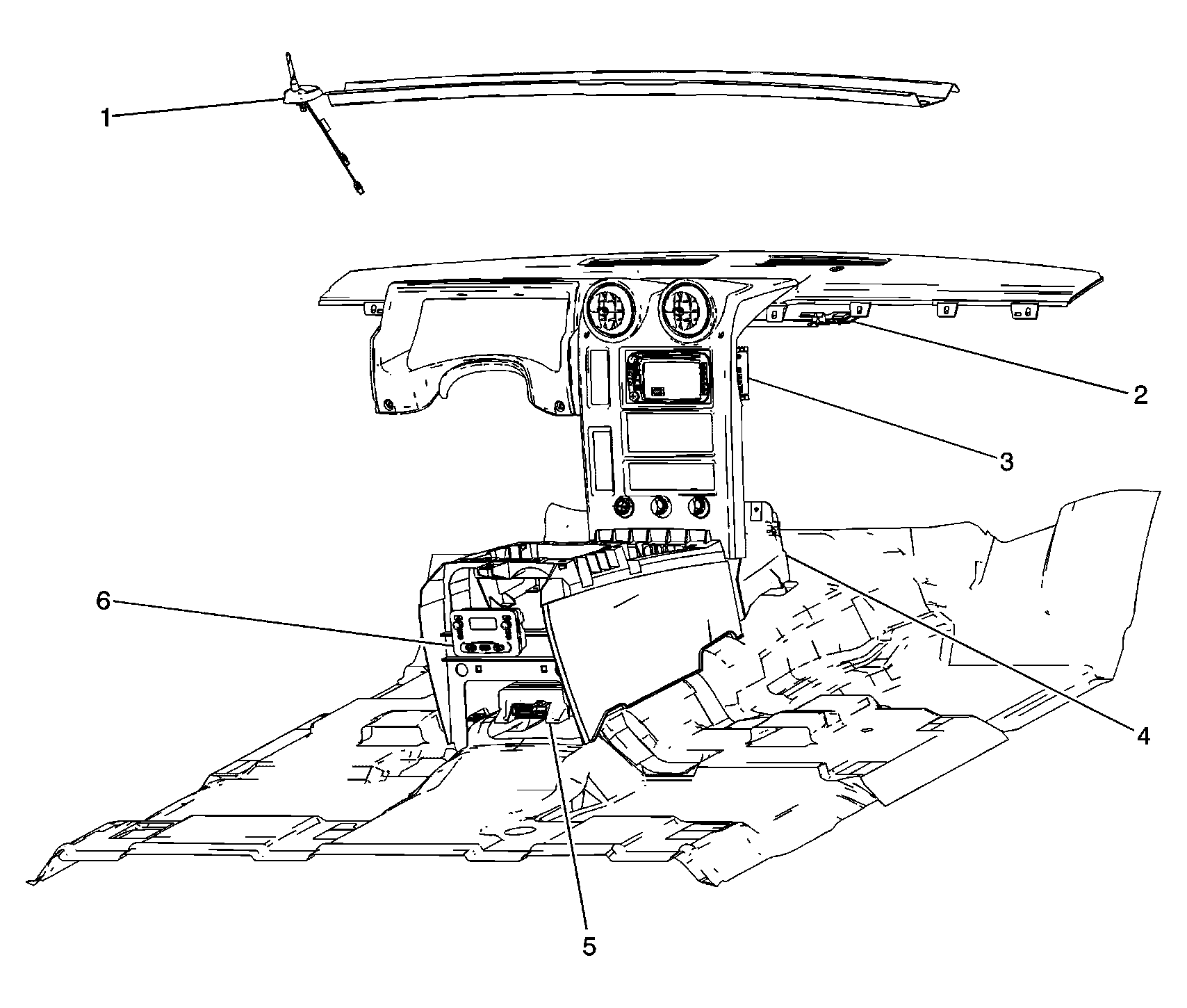

| Callout | Component Name |
|---|---|
| 1 | Cellular and Navigation Antenna |
| 2 | Navigation Radio Antenna (UM8) |
| 3 | Radio w/DVD |
| 4 | Speaker - Front Subwoofer |
| 5 | Audio Amplifier |
| 6 | Rear Seat Audio (RSA) Controller |

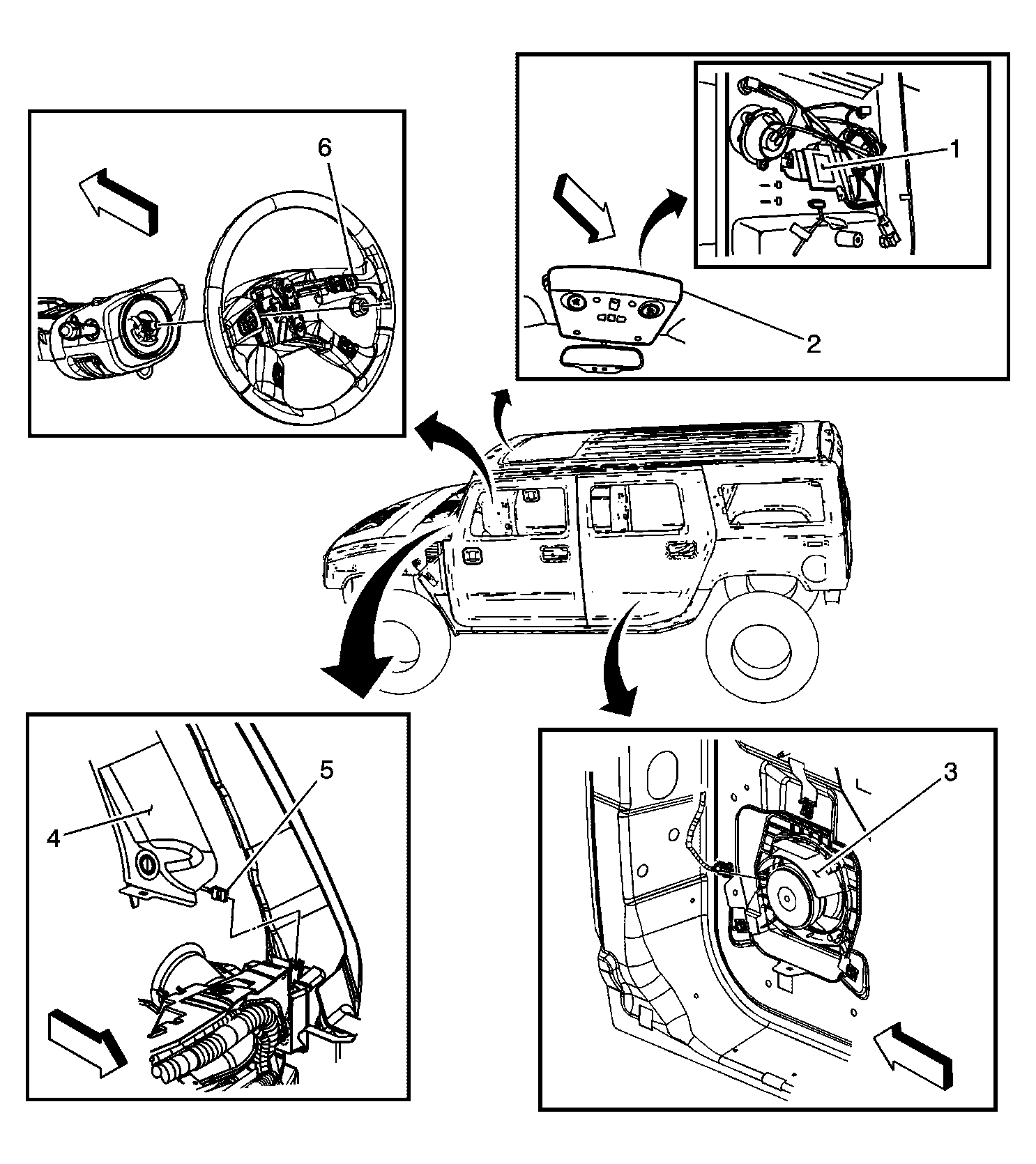

| Callout | Component Name |
|---|---|
| 1 | Garage Door Opener |
| 2 | Overhead Console |
| 3 | Speaker - LR Door |
| 4 | Windshield Side Garnish Molding |
| 5 | Speaker - Left A Pillar Tweeter Connector |
| 6 | Steering Wheel Controls |

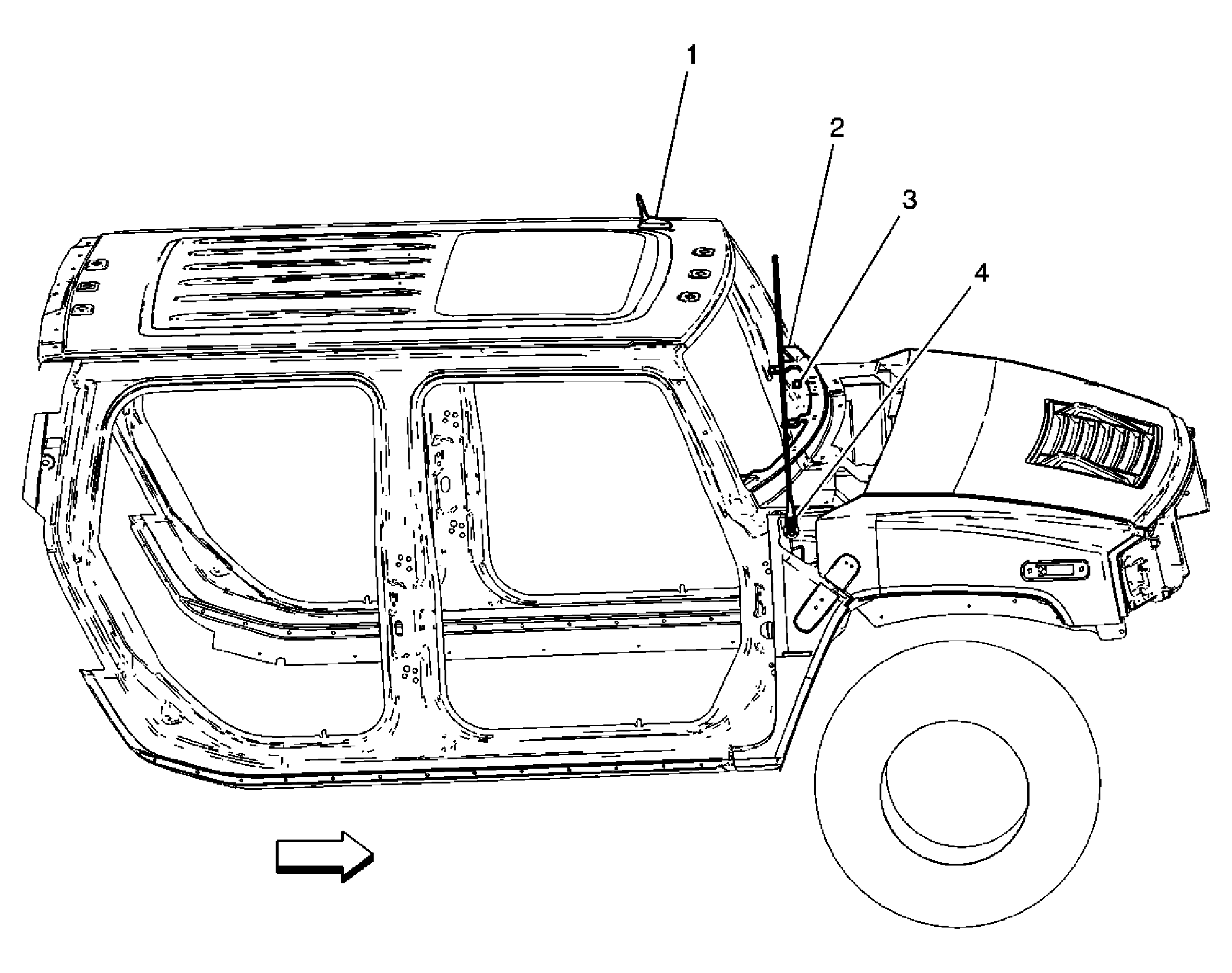

| Callout | Component Name |
|---|---|
| 1 | Cellular and Navigational Antenna |
| 2 | Radio Antenna |
| 3 | Global Positioning System (GPS) Antenna (I/P) |
