WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cell Phone/GPS Antenna Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clearance Lamp-LF
2	Roof Marker Lamp Harness
3	Clearance Lamp Connector-LF
4	Cell Phone/GPS Antenna
5	Roof Lamp-Center Front
6	Roof Lamp-Center Front
7	Splice S345
8	Roof Lamp-Center Front
9	Splice S303

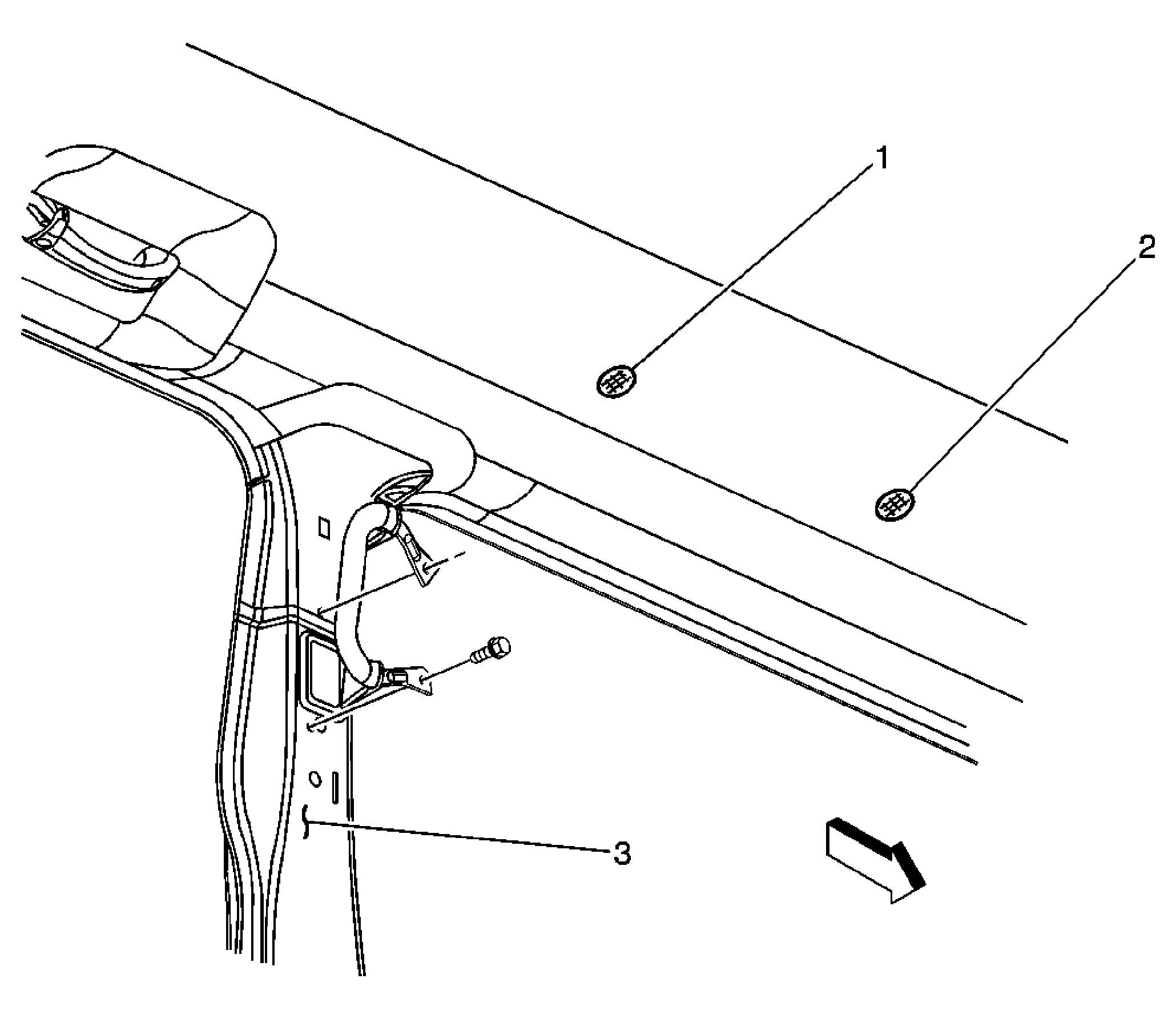

Fig 2: Cellular Telephone Microphone Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Assembly-Inside
2	Cellular Telephone Microphone
3	B Pillar-Left Side

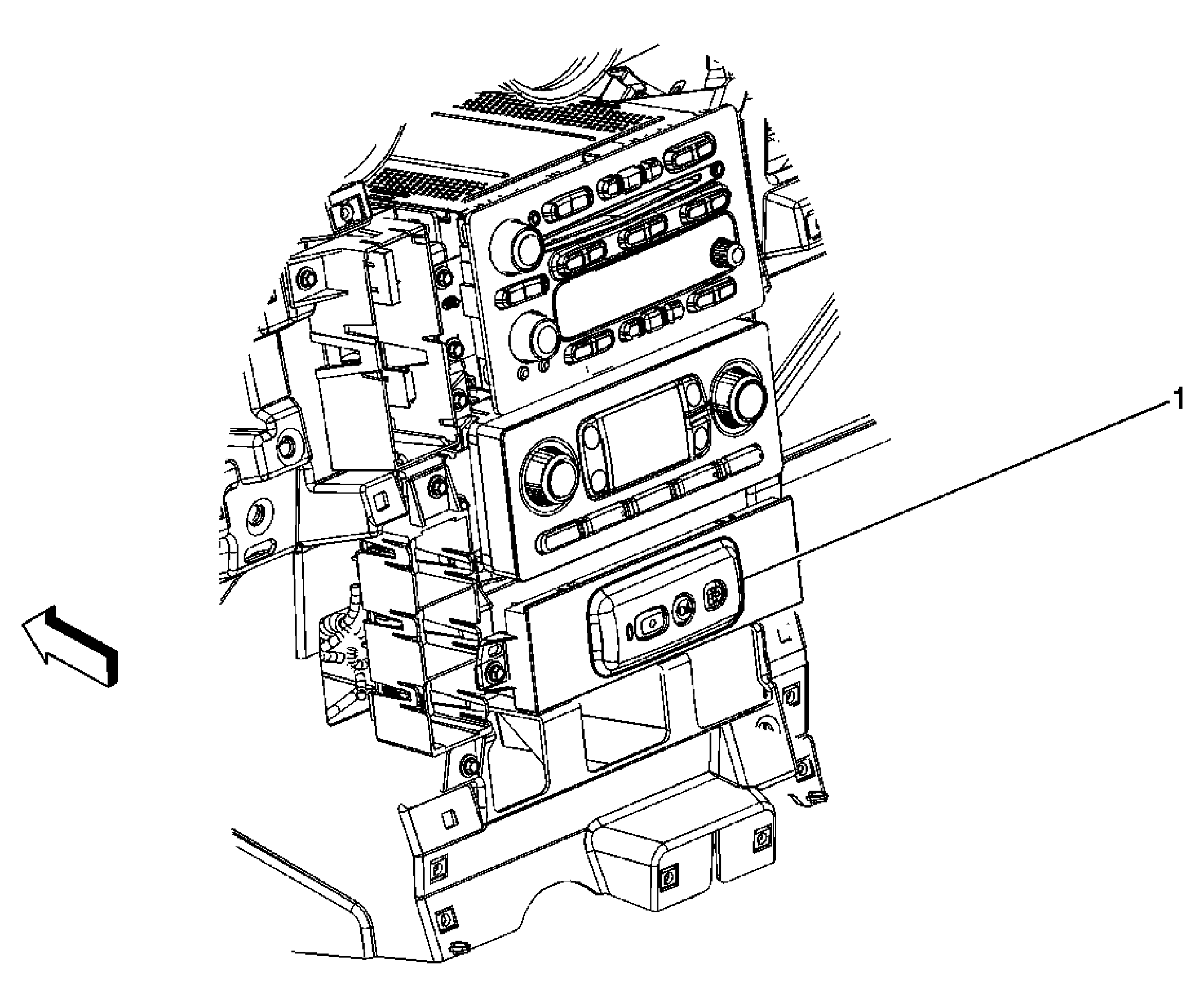

Fig 3: OnStar Button Assembly Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	OnStar Button Assembly w/VCIM

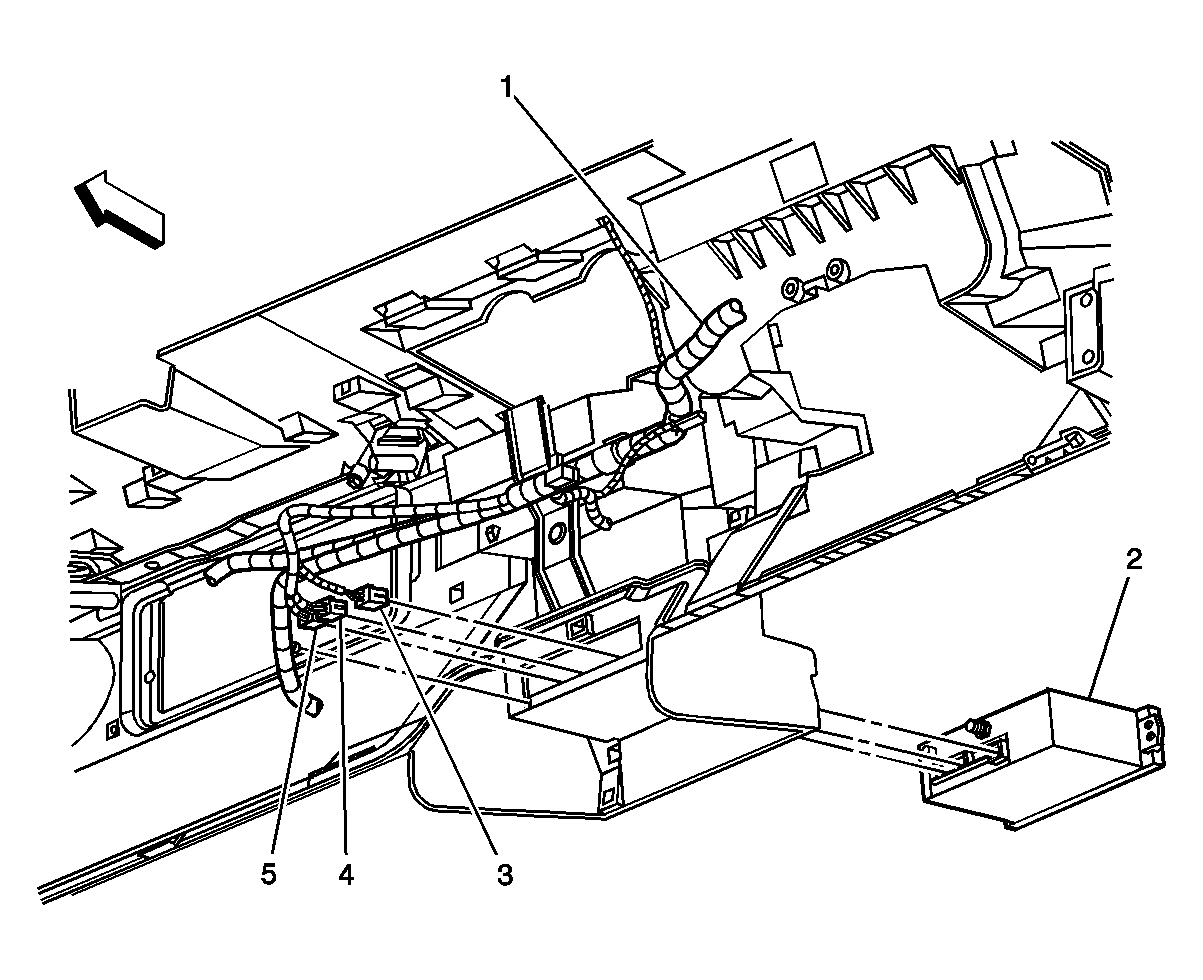

Fig 4: Vehicle Communication Interface Module Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Vehicle Communication Interface Module
3	Vehicle Communication Interface Module-C3
4	Vehicle Communication Interface Module-C2
5	Vehicle Communication Interface Module-C1
