Installation Procedure

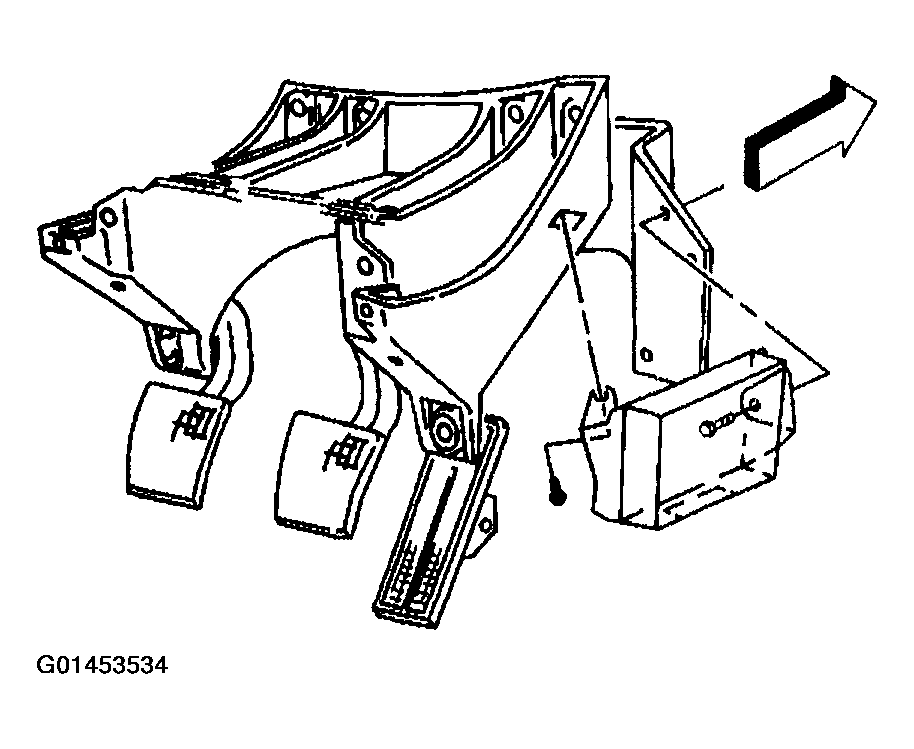

- Install the Bose® signal processing module into position on the steering column bracket.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the Bose® signal processing module retaining bolts.
Tighten
Tighten the Bose® signal processing module retaining bolts to 2.5 N.m (22 Ib. in).

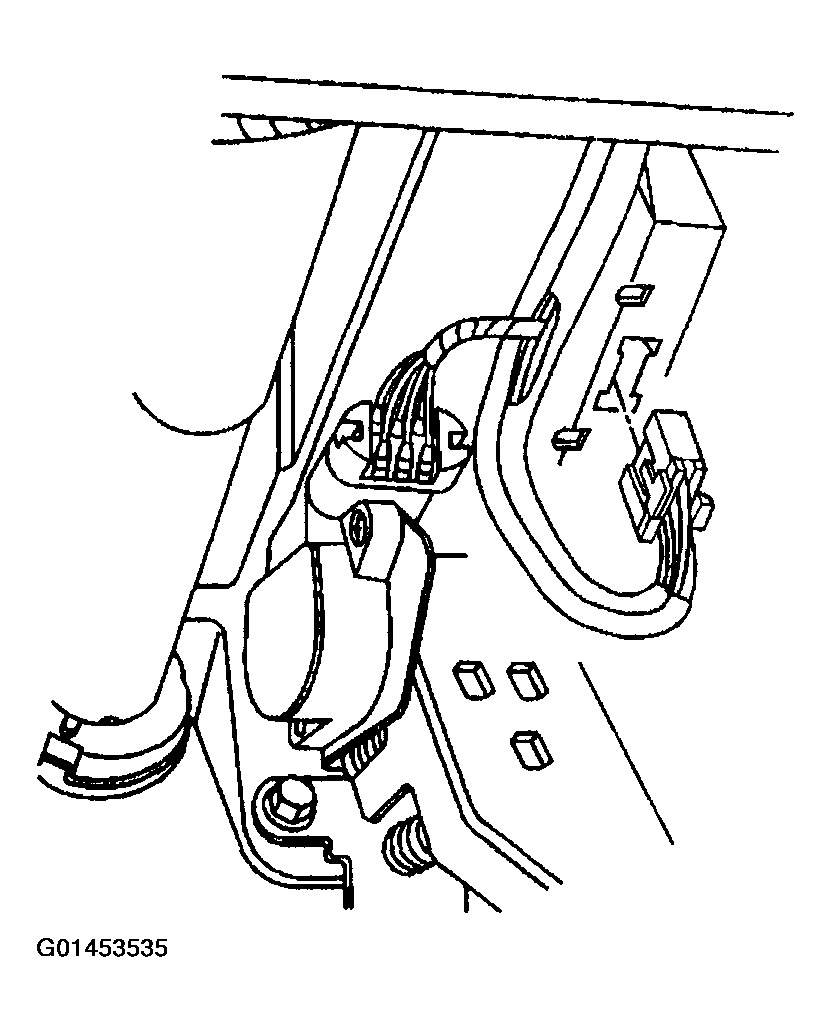

- Connect the electrical/audio connector to the signal processing module.
- Install the IP left lower insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
- Install the RDO/ANT MiniFuse® #24 to the IP electrical center.
- Install the cover to the I/P electrical center.
- Install the front floor kick-up panel. Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR in Interior Trim.
