Installation Procedure

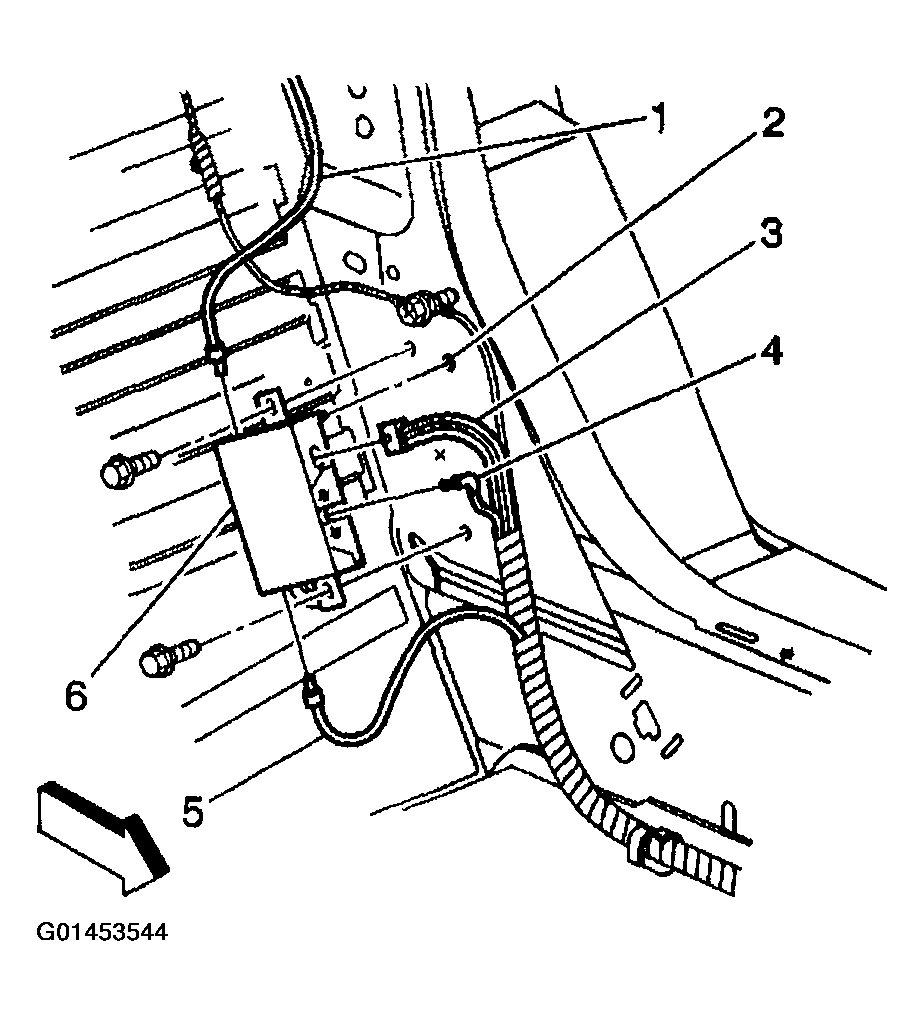

- Install the antenna module (6) into position on the lock pillar.
Align the module locator tab to the lock pillar locating hole (2).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices. - Install the antenna module (6) retaining screws.
Tighten
Tighten the antenna module retaining screws to 1.8 N.m (16 lb in).
- Connect the following three coaxial cables to the antenna module (6).
- Rear lift window antenna extension (1)
- Radio control (4)
- Front windshield antenna (5)
- Connect the electrical/audio connector (3) to the antenna module (6).
- Install the lock pillar trim panel. Refer to TRIM REPLACEMENT - LOCK PILLAR (UPPER CONVERTIBLE) or TRIM REPLACEMENT - LOCK PILLAR (COUPE) or TRIM REPLACEMENT - LOCK PILLAR (LOWER CONVERTIBLE AND HARD TOP) in Interior Trim.
- Install the door sill plate. Refer to DOOR SILL PLATE REPLACEMENT in Interior Trim.
