Install the headlamp control module into position on the headlamp bracket.
Install the nuts mounting the module to the headlamp bracket.

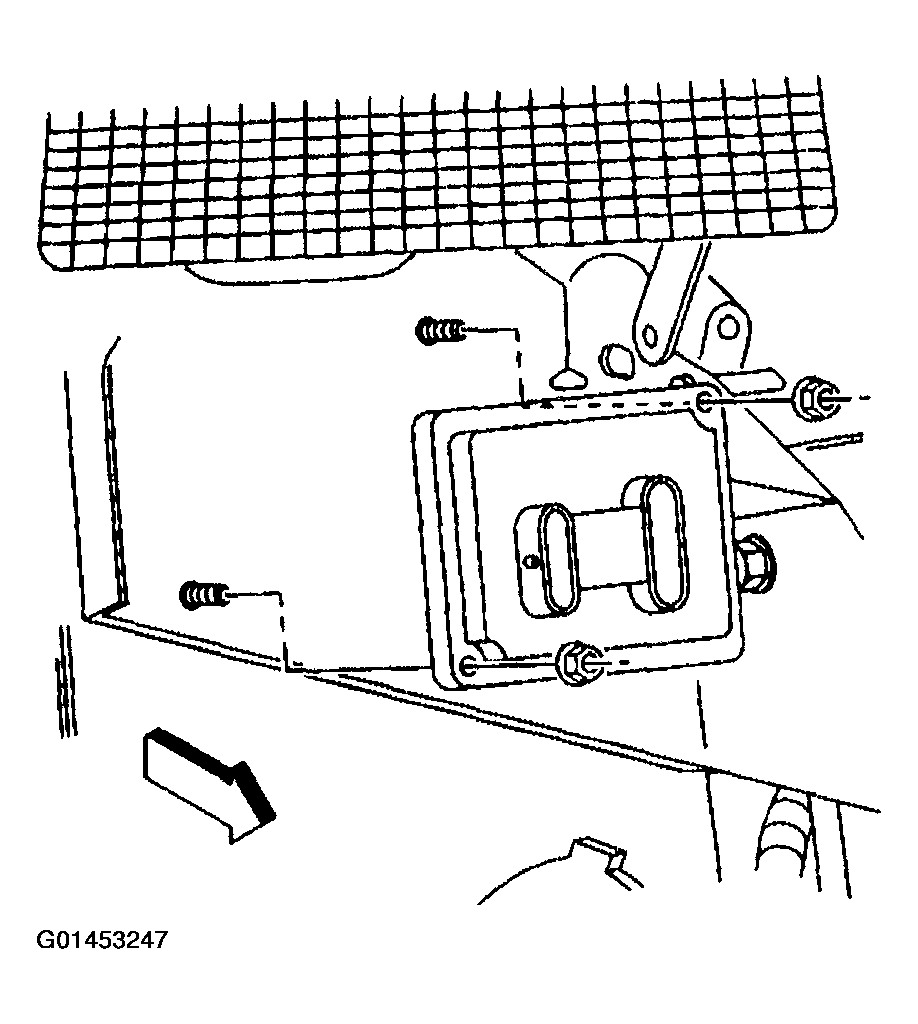

Fig 1: Installing Headlamp Control Module Into Position On Headlamp Bracket
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors to the module.

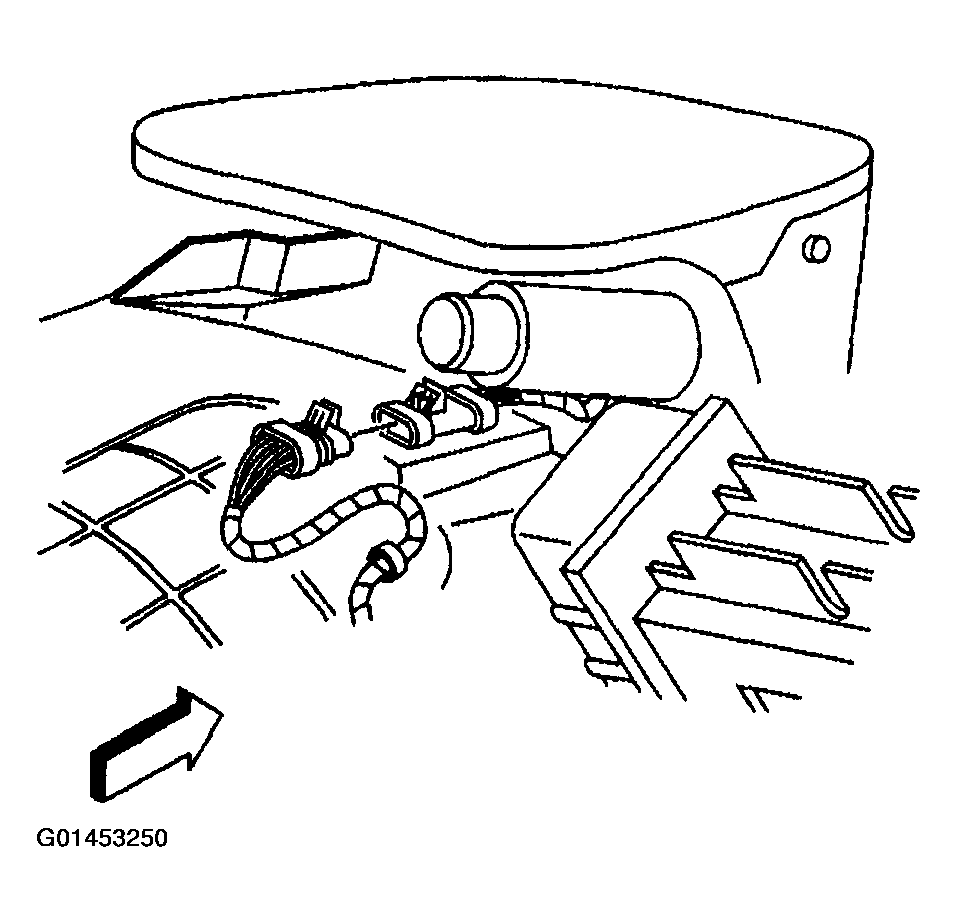

Fig 2: Connecting Electrical Connectors To Module
Courtesy of GENERAL MOTORS CORP.
Position the brake caliper cooling duct to the front fascia and push to secure.
Install the front fascia lower closeout panel. Refer to CLOSE OUT PANEL - FRONT BUMPER FASCIA LOWER in Bumpers.
Lower the vehicle.

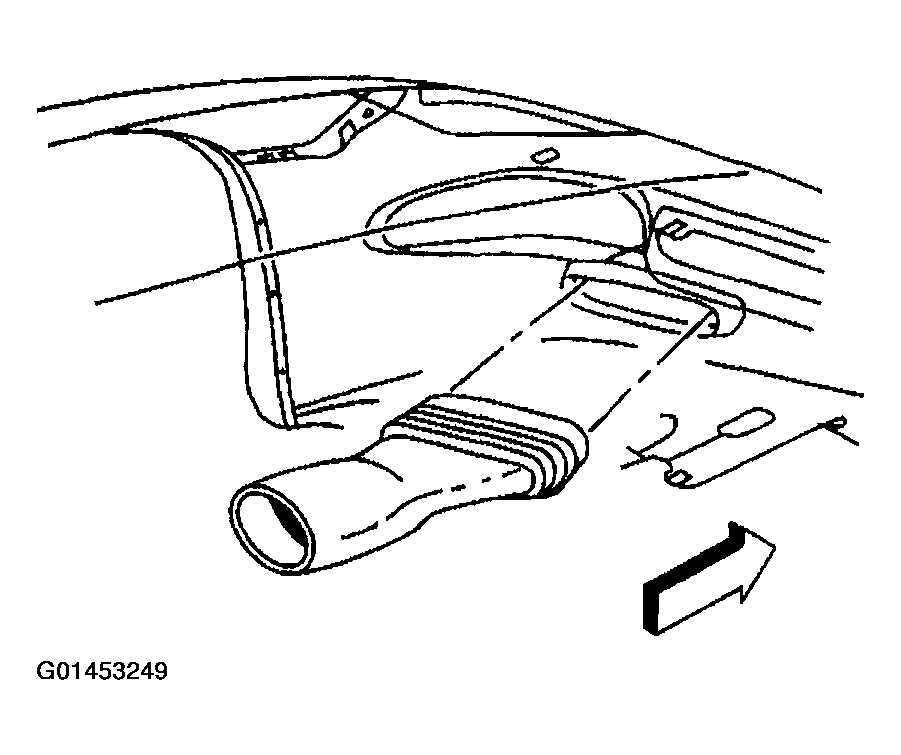

Fig 3: Positioning Brake Caliper Cooling Duct To Front Fascia
Courtesy of GENERAL MOTORS CORP.
Connect the RH headlamp wiring harness electrical connector to the forward lamp wiring harness.
Lower the RH headlamp manually.
Turn the headlamp motor/actuator manual control knob clockwise to lower the headlamp.

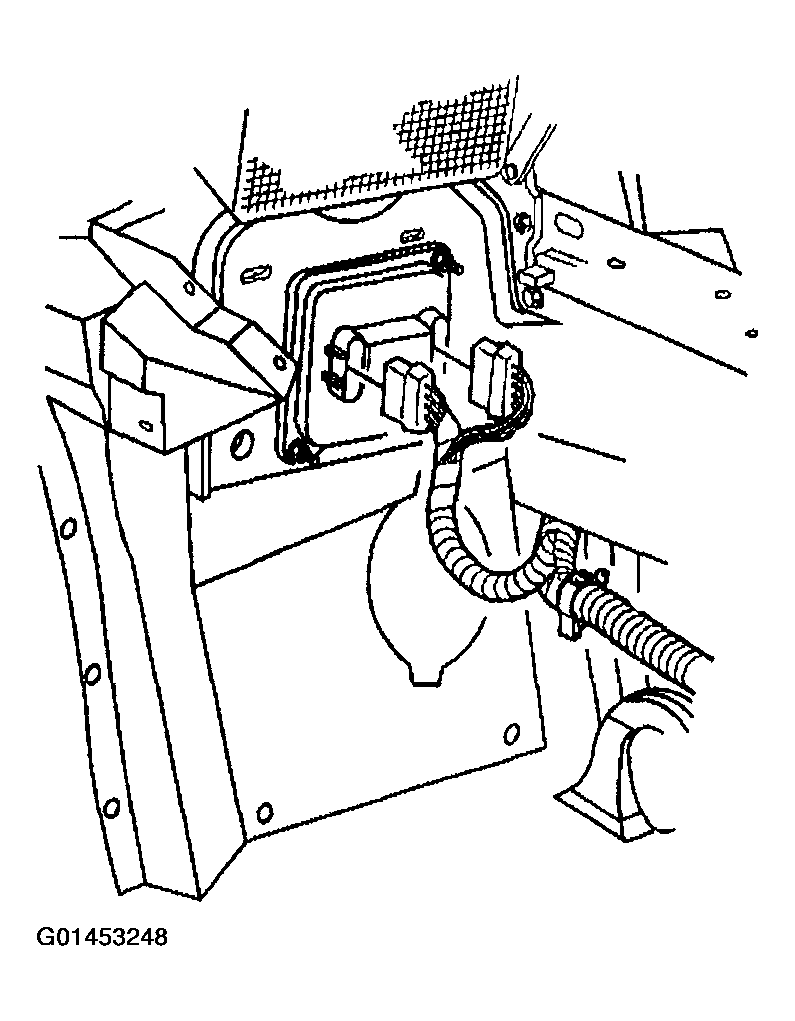

Fig 4: Connecting RH Headlamp Wiring Harness Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the headlamp circuit breaker into the IP electrical center.
Install the floor kick up panel covering the IP electrical center.
Close the hood.

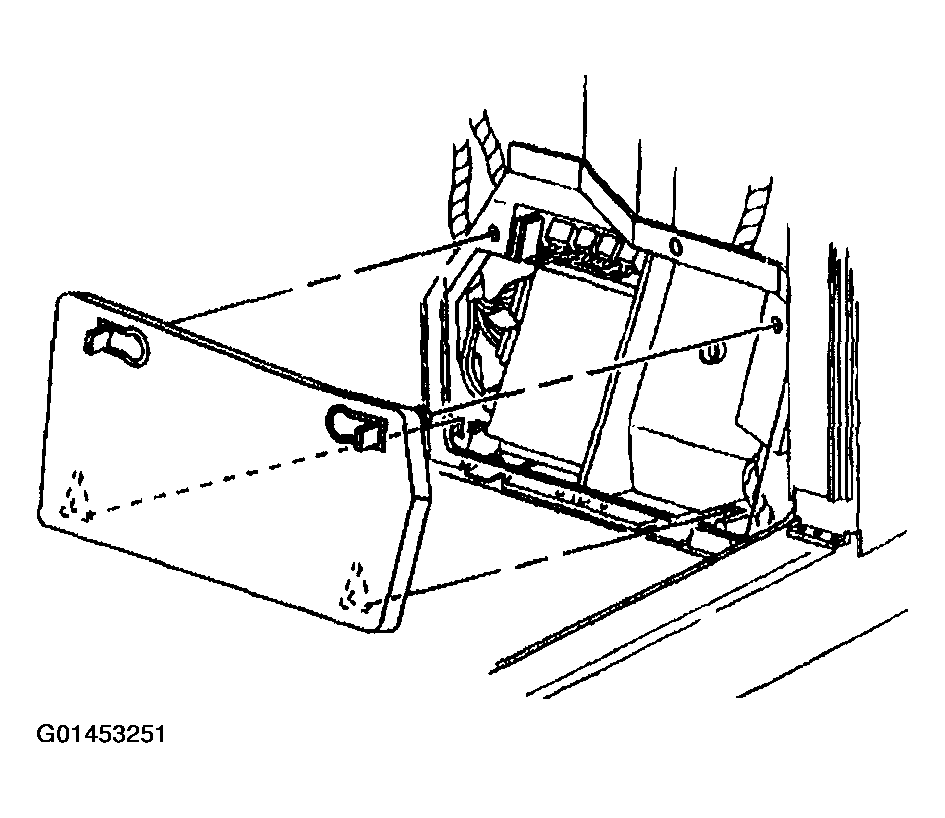

Fig 5: Installing Floor Kick Up Panel Covering IP Electrical Center
Courtesy of GENERAL MOTORS CORP.
