2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Removal Procedure
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the starter/generator control module (SGCM) cooling system. Refer to Draining and Filling Cooling System - Starter/Generator Control Module .

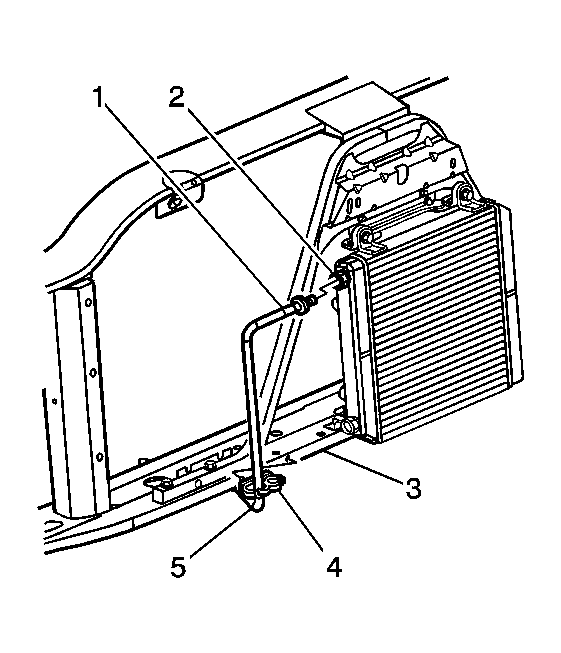

- Remove the SGCM radiator outlet hose (1) from the SGCM radiator (2). Refer to Coolant Pipe Quick Connect Fitting - Starter/Generator Control Module .

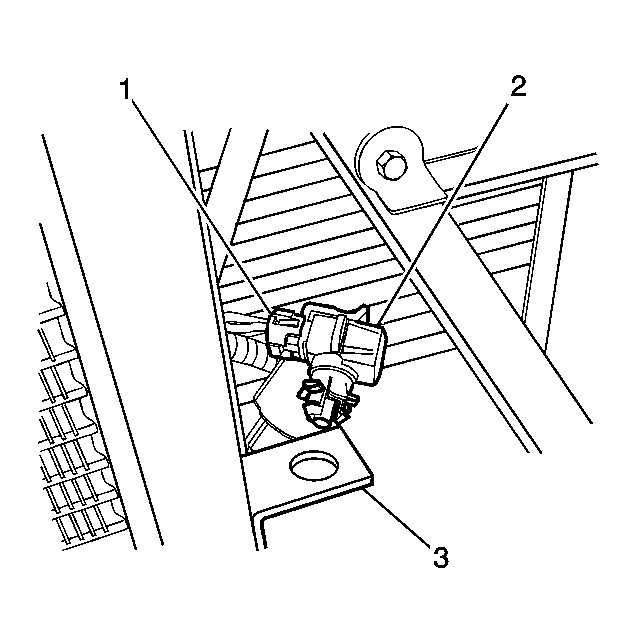

- Remove the ambient air temperature sensor (2) from the SGCM radiator bracket (3).
- Disconnect the electrical connector from the SGCM cooling fan.

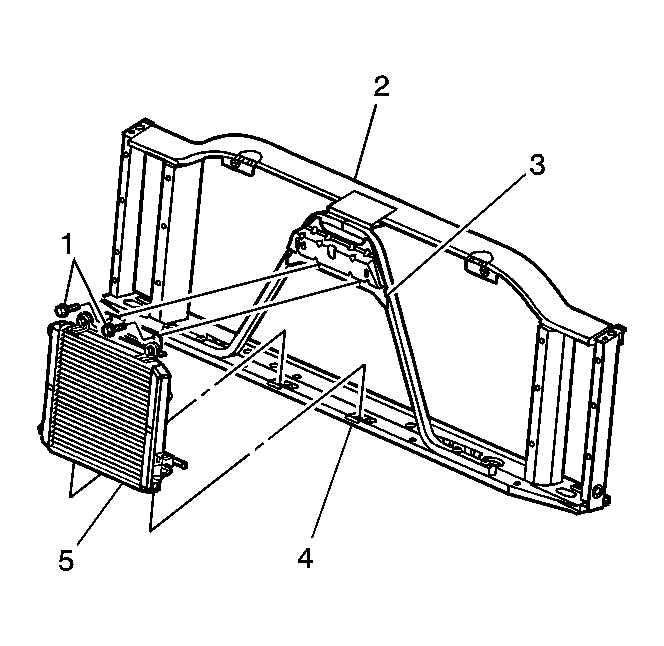

- Remove the bolts (1) from the SGCM radiator (5).
- Remove the SGCM radiator (5) from the radiator core support (4).

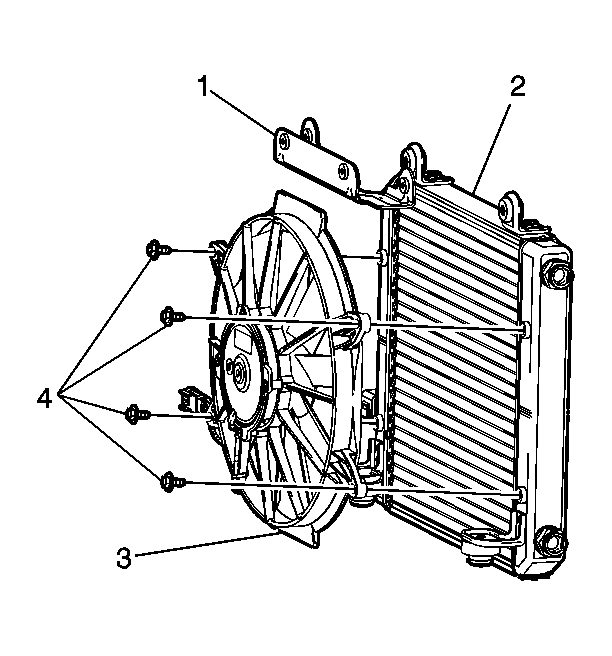

- Remove the bolts (4) from the SGCM cooling fan (3).
- Remove the SGCM cooling fan (3) from the SGCM radiator (2).
