2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Removal Procedure
WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the fuel sender. Refer to Fuel Sender Assembly Replacement .
- Disconnect the fuel pump electrical connector.

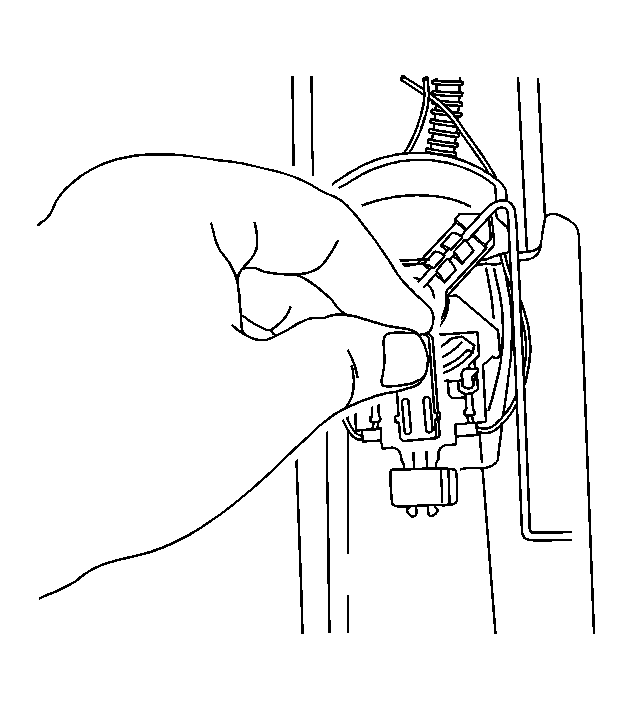

- Remove the fuel level sensor electrical connector retaining clip.
- Disconnect the fuel level sensor electrical connector.

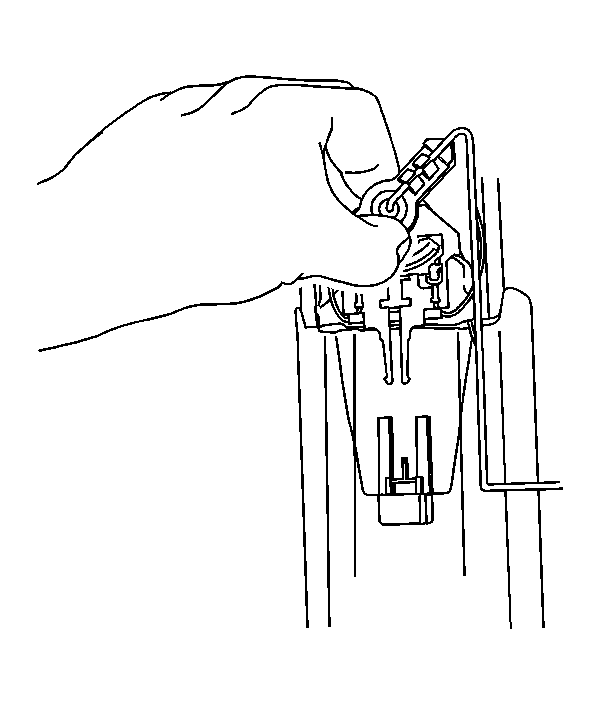

- Remove the fuel level sensor retaining clip.
- Remove the fuel level sensor.
