Installation Procedure

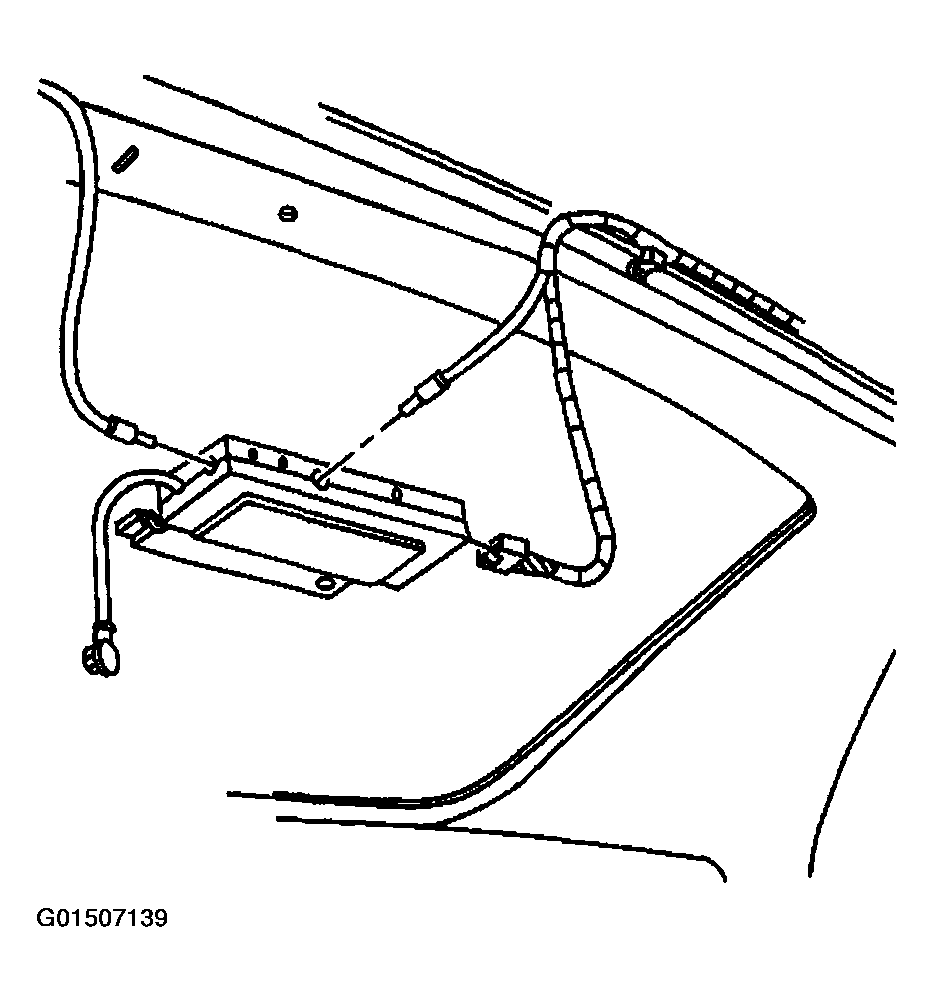

- Install the radio antenna module to the roof beam, ensuring that the alignment tab is properly located.
- Install radio module retaining fastener.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Tighten
Tighten the radio module retaining fasteners to 9 N.m (80 lb in).
- Connect the electrical connectors to the radio antenna module.
- Install the headliner. Refer to HEADLINER REPLACEMENT (WITH SUNROOF) or HEADLINER REPLACEMENT (WITHOUT SUNROOF) in Interior Trim.
