2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Front Tweeter Inspection
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

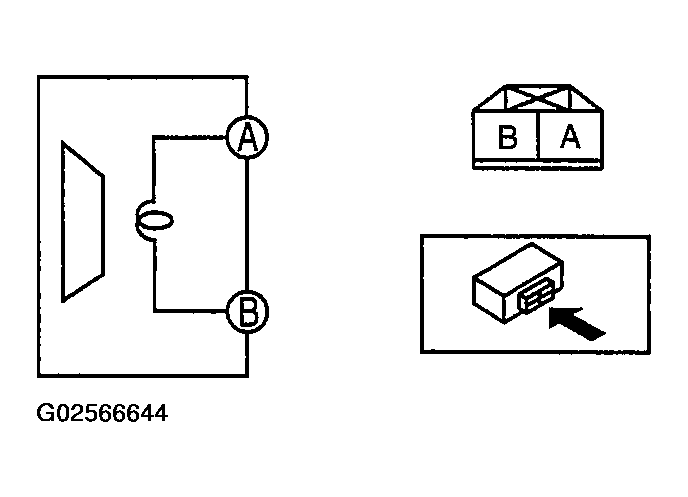

- Verify the resistance between front tweeter terminals.
- If the resistance is not within the specification, replace the front tweeter.
Resistance 3.2 ohms
- If the resistance is not within the specification, replace the front tweeter.
- Connect a 1.5 V battery to the front tweeter and verify that noise is sound from the front tweeter.
- If no sound is output, replace the front tweeter.
