2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

Socket Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Insert a tape-wrapped flathead screwdriver into the socket hole and push on the ring projection to lift the socket outward.

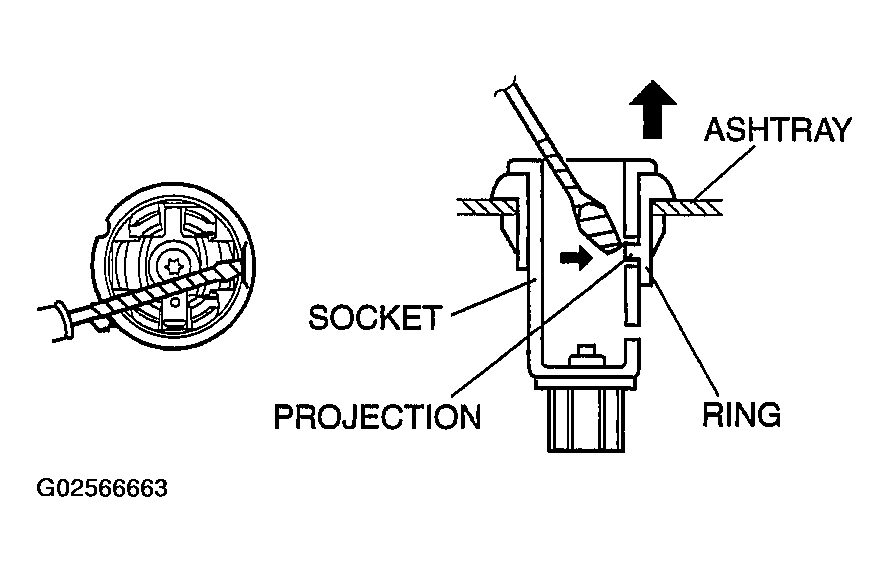

Fig 1: Pushing On Ring Projection To Lift Cigarette Lighter Socket Outward
Courtesy of MAZDA MOTORS CORP.
Lift out the socket until the ring projection locks into the lower socket hole as shown in the figure.

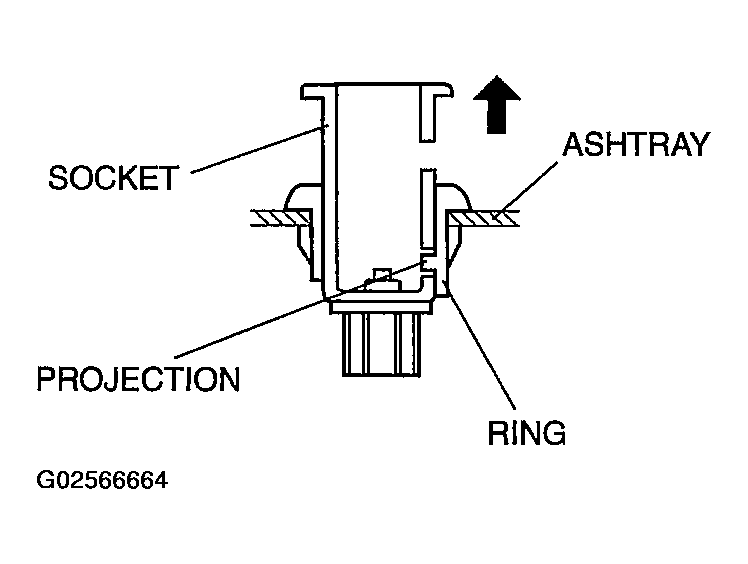

Fig 2: Identifying Cigarette Lighter Socket Components
Courtesy of MAZDA MOTORS CORP.
From the rear of the ashtray, insert a tape-wrapped flathead screwdriver between the socket and the ring as shown in the figure.
While lifting the ring projection with the flathead screwdriver, push out and remove the socket.

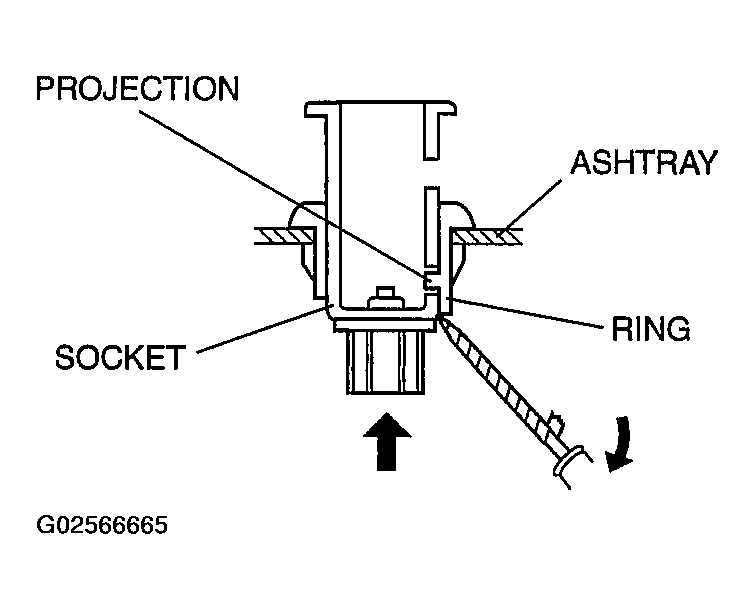

Fig 3: Removing Cigarette Lighter Socket
Courtesy of MAZDA MOTORS CORP.
