2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

Center Panel Module Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    REMOVAL ORDER OF CENTER MODULE

    1 Screw
    2 Connector
    3 Antenna feeder
    4 Center panel module (See Center Panel Module Removal Note .)

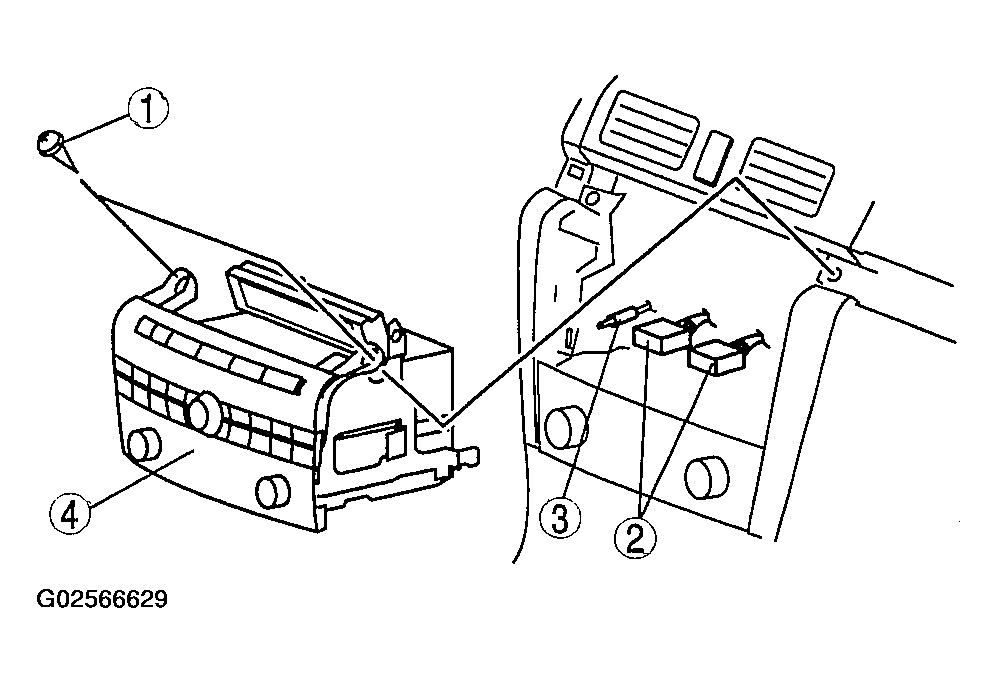

    Fig 1: Removing/Installing Center Panel Module
    G02566629Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
