Terminal H Inspection
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

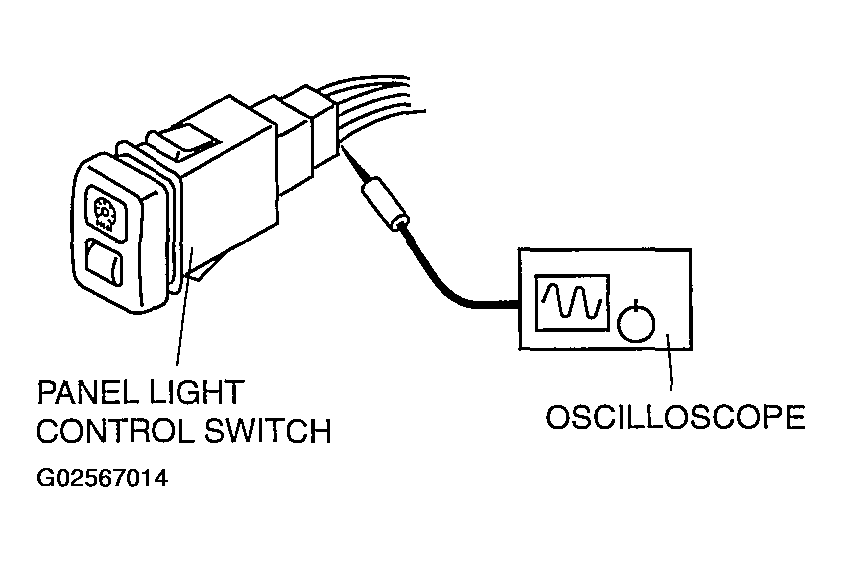

- Measure the wave pattern of panel light control switch terminal H using a tester.
- Turn the light switch to the TNS or ON position.
- Verify that the resistance changes smoothly while turning the panel light control switch from the brightest to the darkest setting.
