2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Inboard Light Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the trunk lid trim. (4 door) (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
- Remove the service hole cover. (5 door)

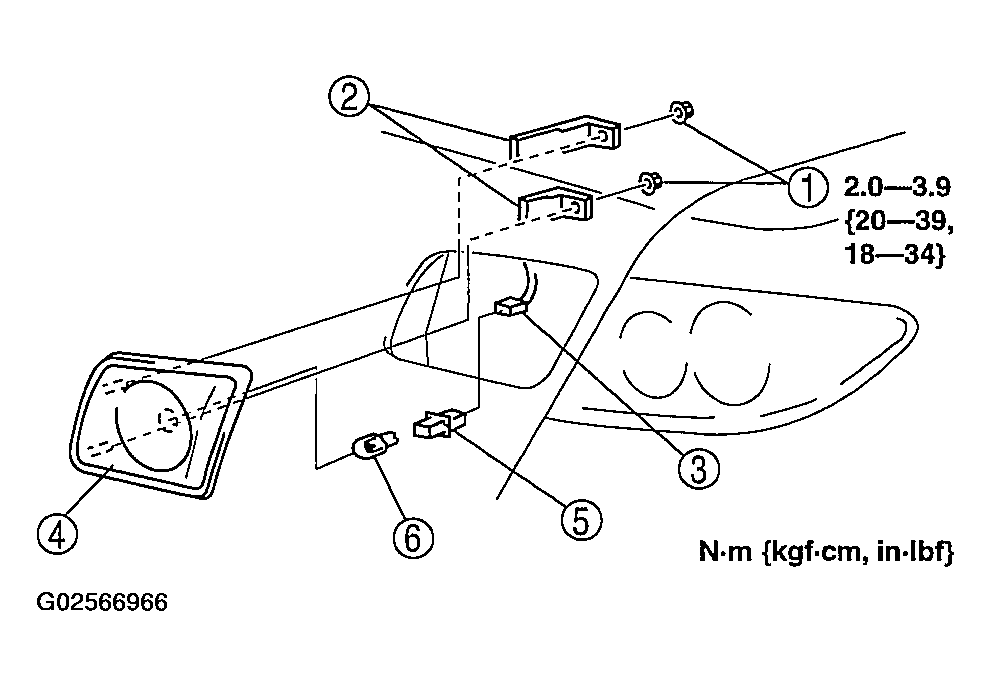

- Remove in the order indicated in the table.REMOVAL ORDER OF INBOARD LIGHT
Removal Order Part 1 Nut 2 Bracket 3 Connector 4 Inboard light (See Inboard Light Installation Note .) 5 Socket 6 Back-up light bulb - Install in the reverse order of removal.
