2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

Combination Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Driver-side air bag module
2. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
4. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
5. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION )
6. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
7. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
8. Clock spring

Remove in the order indicated in the table.

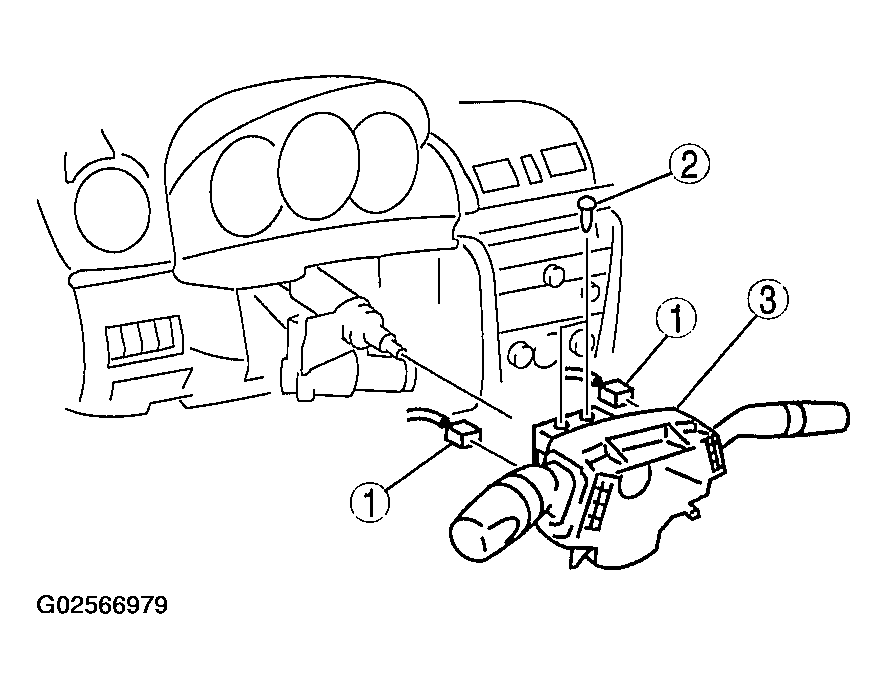

Fig 1: Removing/Installing Combination Switch

Courtesy of MAZDA MOTORS CORP.

REMOVAL ORDER OF COMBINATION SWITCH

Removal Order	Part
1	Connector
2	Screw
3	Combination switch (See Combination Switch Removal Note .)

Install in the reverse order of removal.
