2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Power Window Main Switch Inspection
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- When inspecting the passenger-side and rear power windows, turn the power-cut switch to UNLOCK.

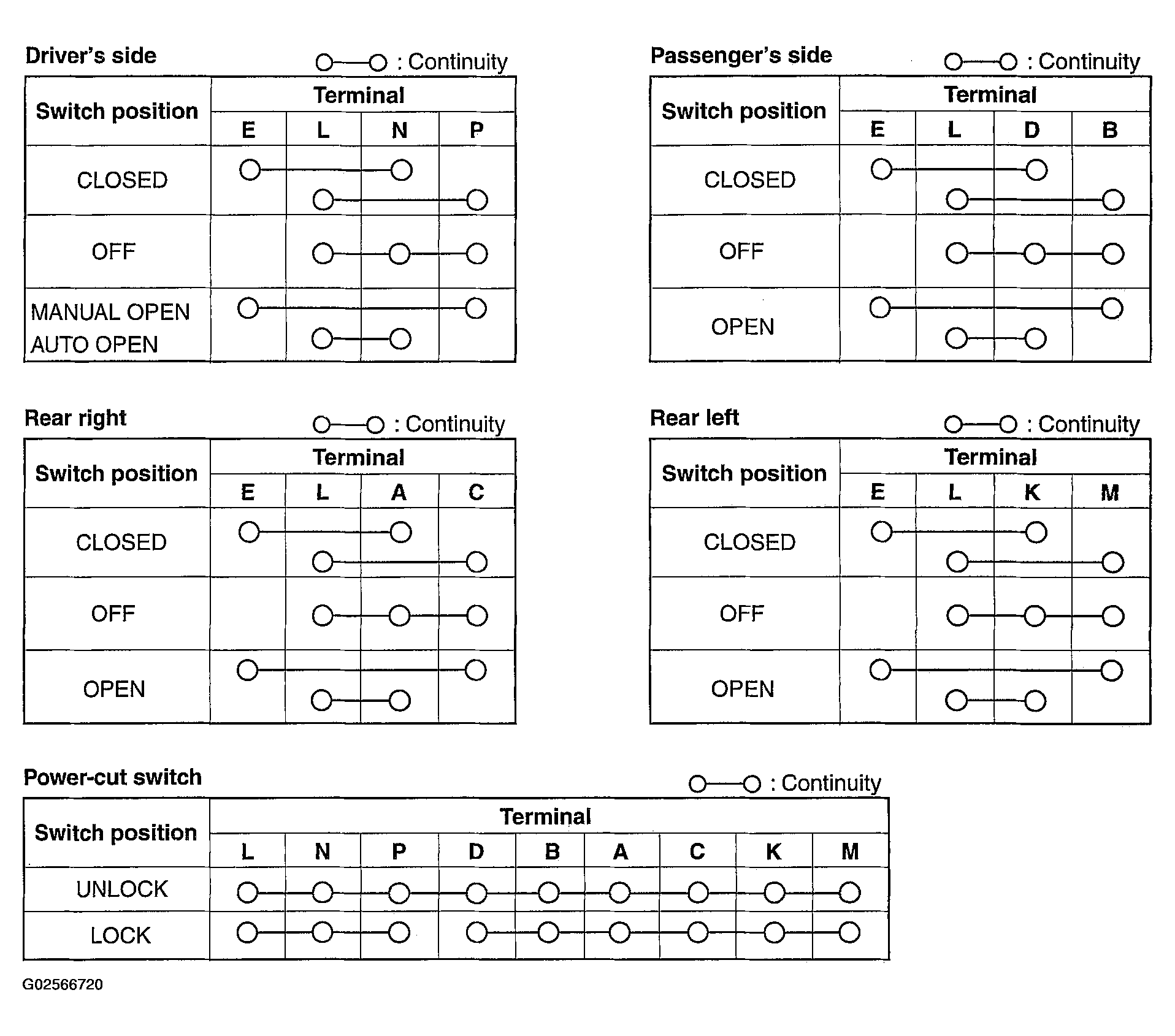

- Inspect for continuity between the power window main switch terminals.
- If not as specified, replace the power window main switch.
- Connect battery positive voltage to terminal E and ground to terminal I. Verify that there is continuity.
- If not as specified, replace the power window main switch.
