2003 Hummer H2FACTORY OEM SERVICE PROCEDURE
Front Power Window Regulator Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the following parts:
- Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
- Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
- Power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

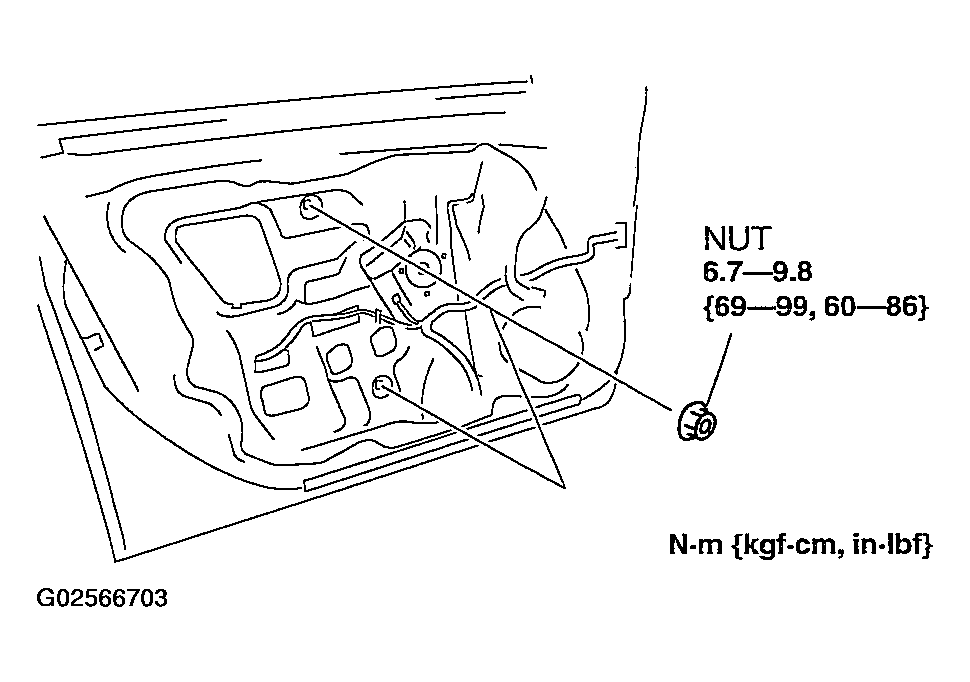

- Remove the nuts.

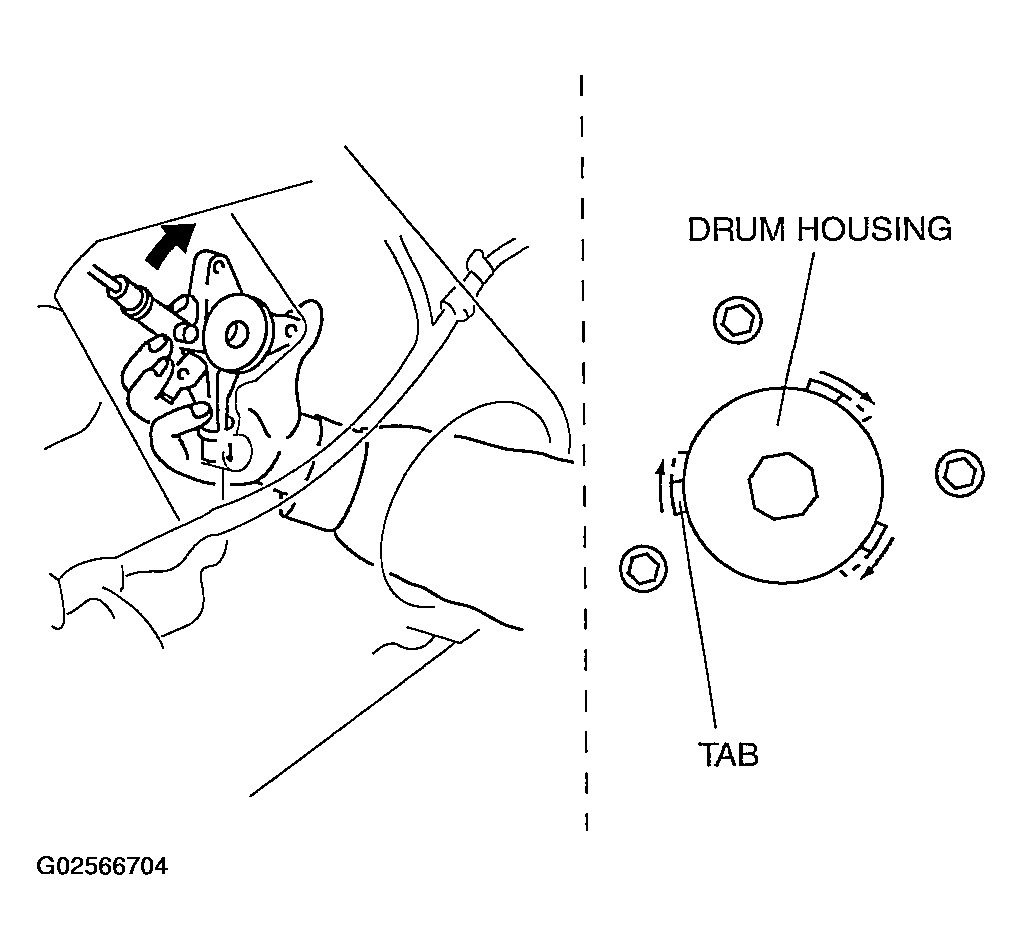

- Insert your hand through the front speaker installation hole, rotate the drum housing in the direction shown in the figure and disengage the tabs from the rear door module.

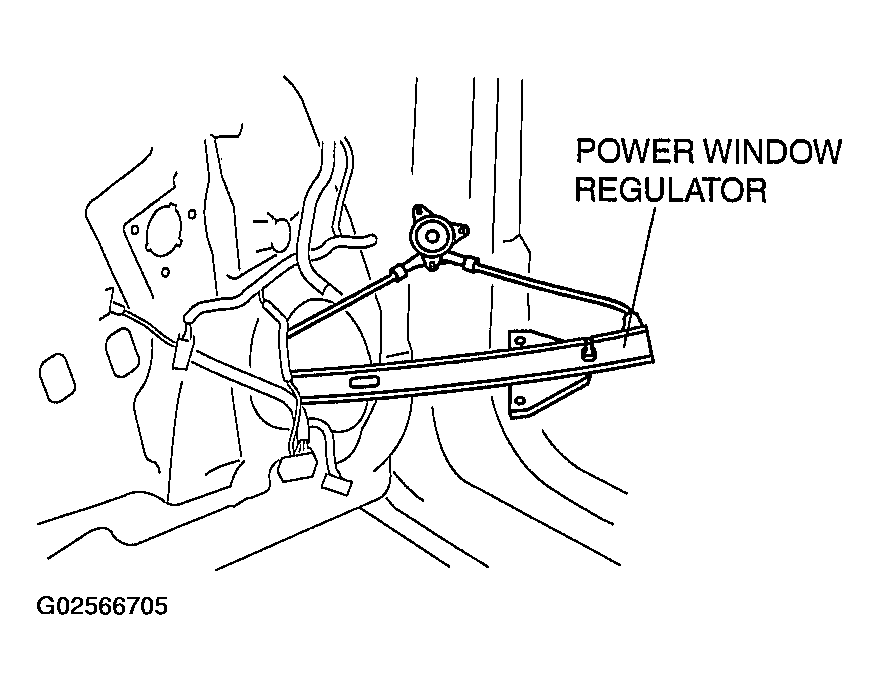

- Remove the front power window regulator through the speaker installation hole.
- Install in the reverse order of removal.
CAUTION:
- Make sure the cable does not unspool from the drum housing when installing.
