Steering Angle Adjustment

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the locknut of the tie-rod end.
  2. Remove the rack boot clamp.
  3. Rotate the tie rod and adjust the steering angle.
    NOTE:
    • The travel distance of the right and left tie rods should be the same.
  4. Rotate the tie rod and adjust so that the difference between right and left dimension L shown in the figure is less than the specification.
    1. Standard 3 mm {0.12 in} or less
  5. Tighten the locknut of the tie-rod end.

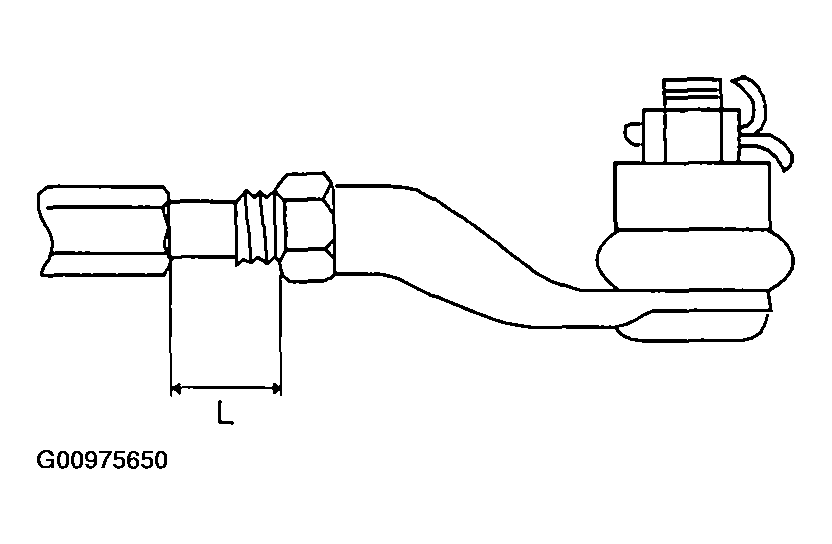

    Fig 1: Identifying Tie-Rod End Measurement
    G00975650Courtesy of MAZDA MOTORS CORP.
    1. Tightening torque 68.6-98.0 N.m {7.00-9.99 kgf.m, 50.6-72.2 ft.lbf}
  6. Correct the rack boot twists.
  7. Install and fix the rack boot clamp.
  8. After adjusting the steering angle, always inspect and adjust the toe angle.
