2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

Cruise Control Module: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module (2) to the bracket.
  2. Install the module to bracket fasteners. Tighten the fasteners to 66 INCH lbs. (7.5 N.m).
  3. Install the cruise control module and bracket assembly to the vehicle.
  4. Install the module retaining fasteners (1, 3). Tighten the fasteners to 80 INCH lbs. (9 N.m).
  5. Connect the electrical connector (2) to the cruise control module. See Fig 1.
  6. Install cruise control cable from the cruise control module. See CRUISE CONTROL CABLE (3.5L V6)  or CRUISE CONTROL CABLE (4.0L V8)  .
  7. Inspect the component operation.

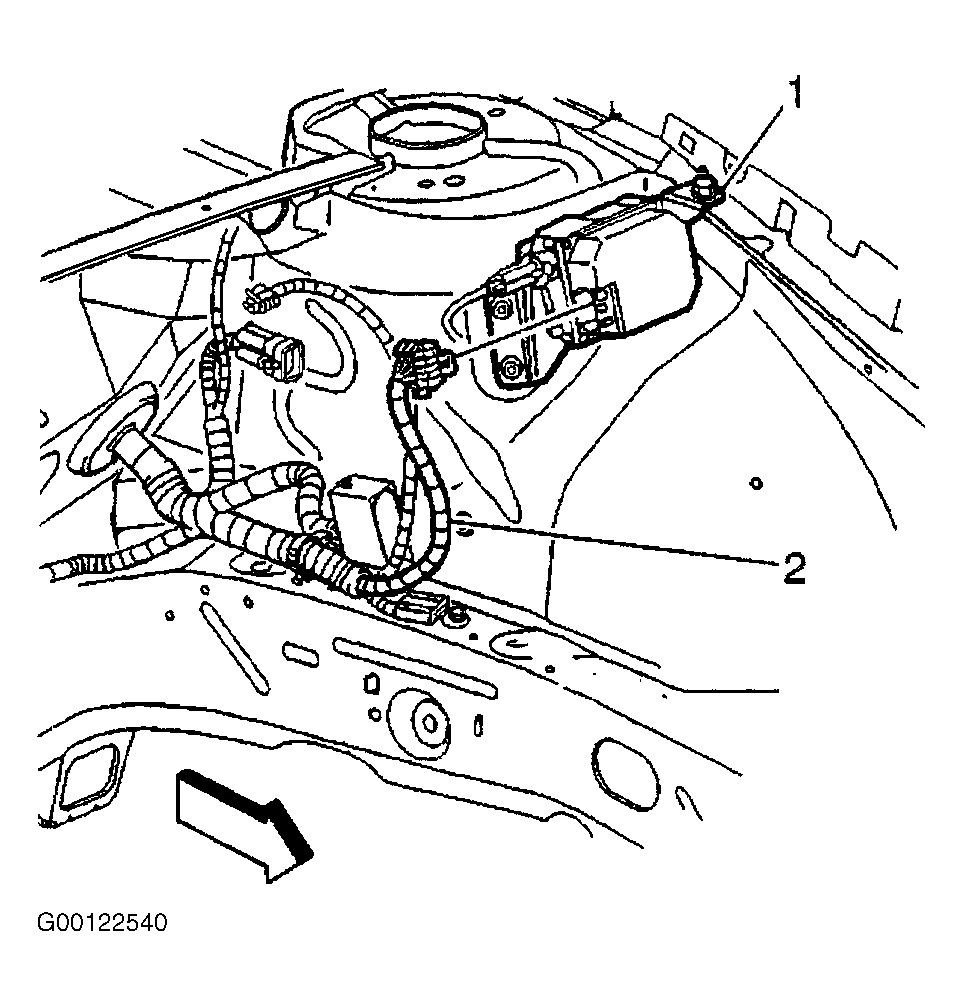

Fig 1: Removing & Installing Cruise Control Module Connector
G00122540Courtesy of GENERAL MOTORS CORP.
