2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

ABS Component Views

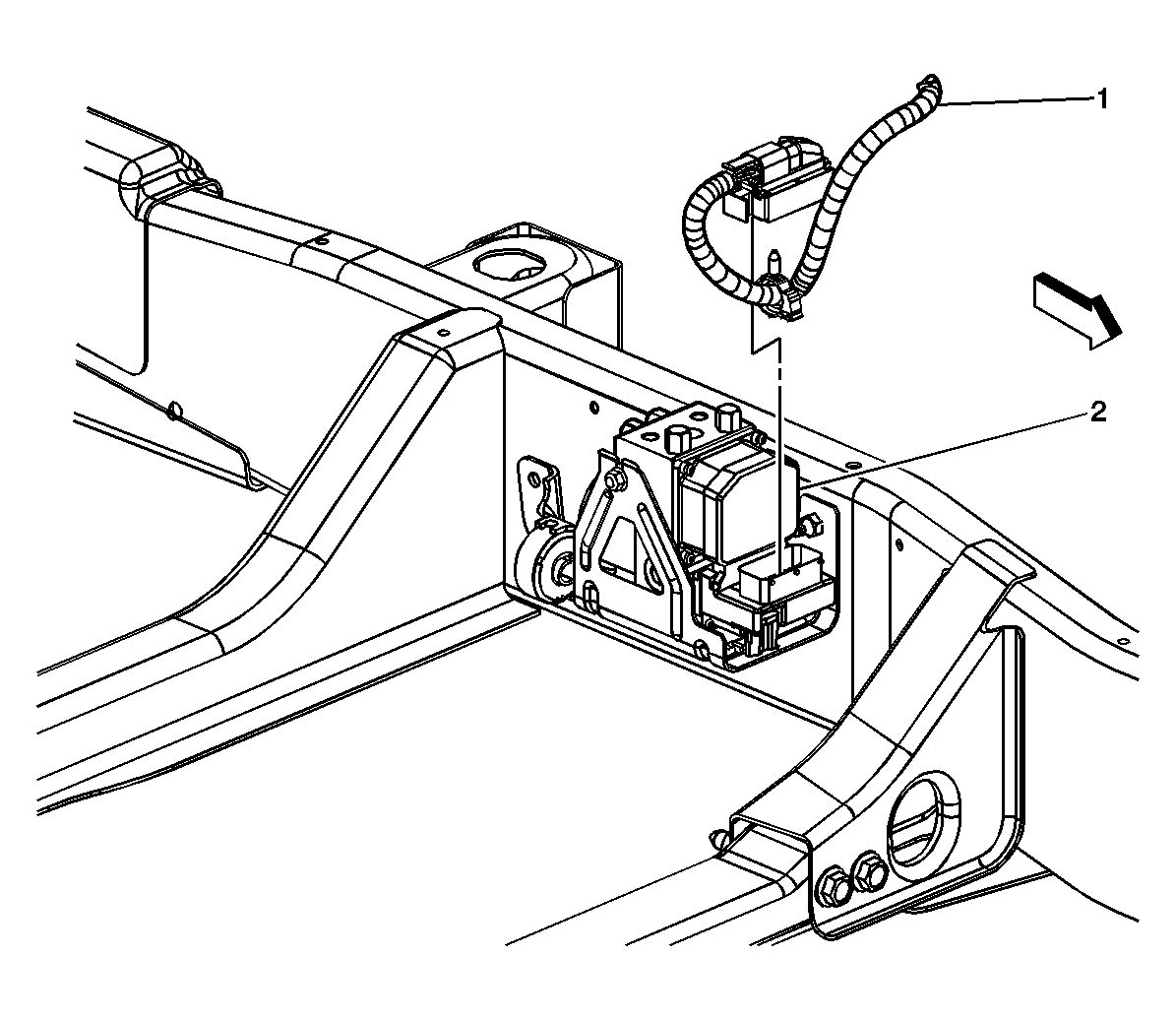

Fig 1: Electronic Brake Control Module (EBCM) Component View
GM828180Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 EBCM

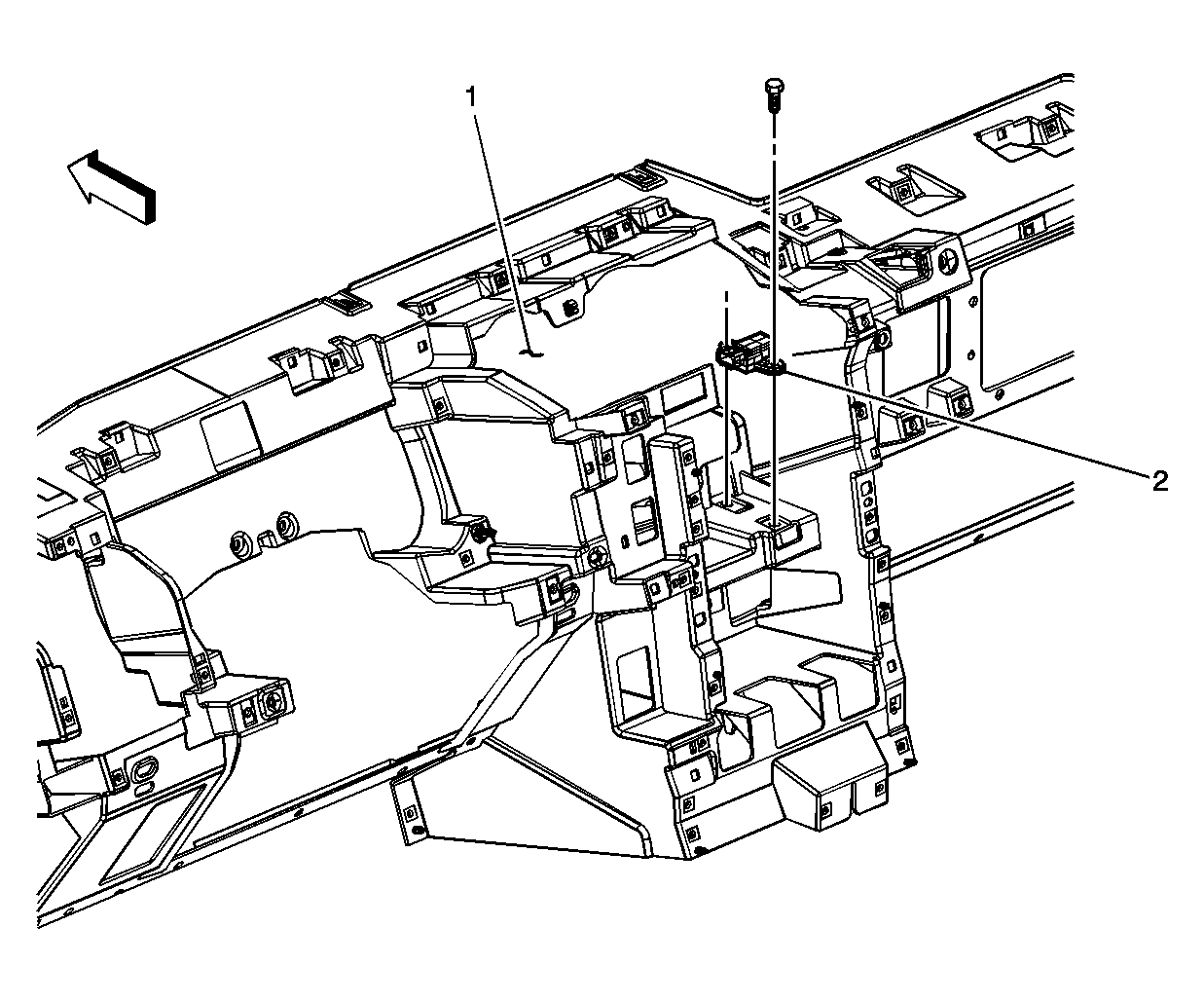

Fig 2: Longitudinal Accelerometer Component View
GM819748Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Longitudinal Accelerometer

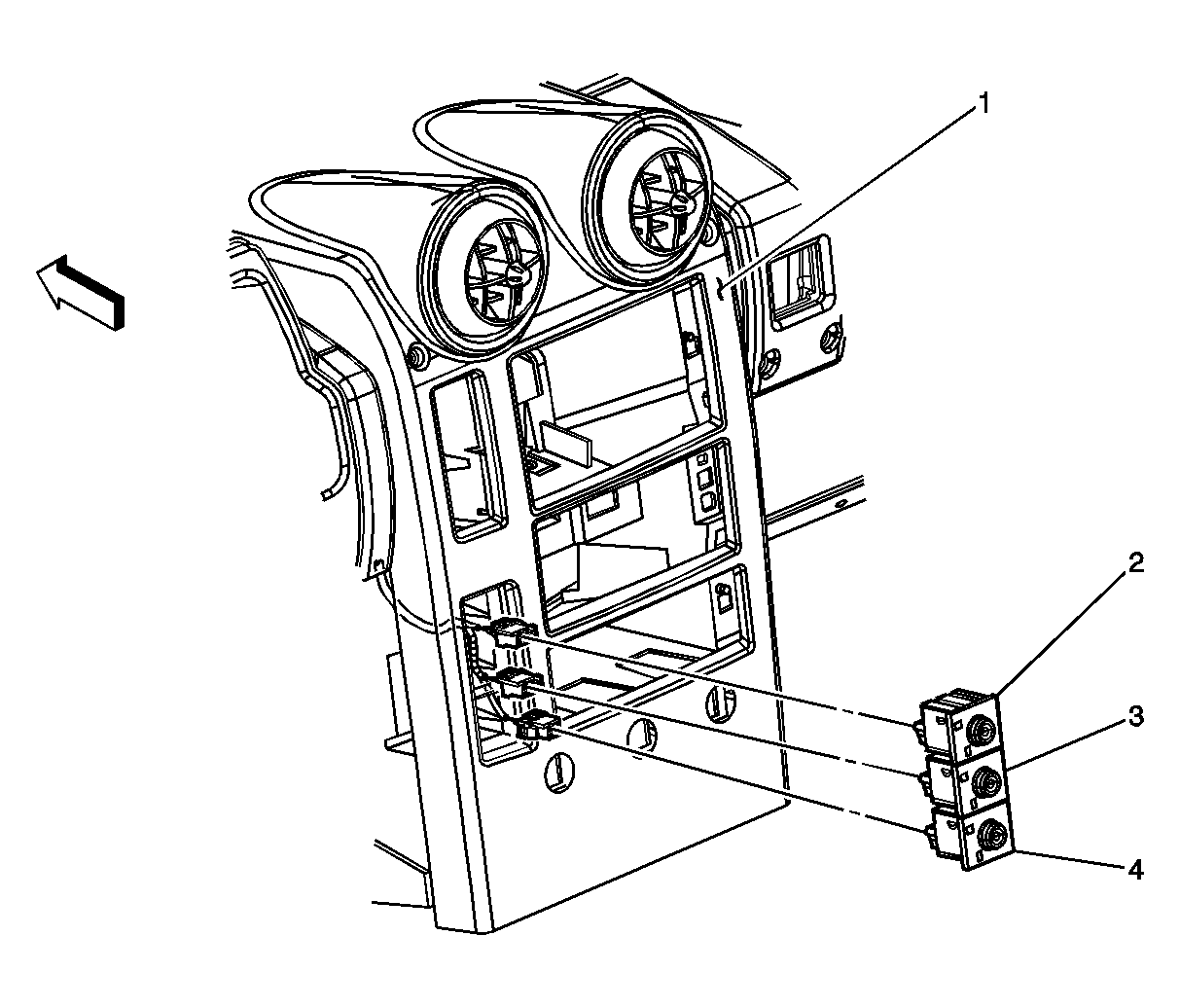

Fig 3: Traction Control Switch Component View
GM819761Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Compartment
2 Traction Control Switch
3 Tow/Haul Switch
4 Ride Height Switch

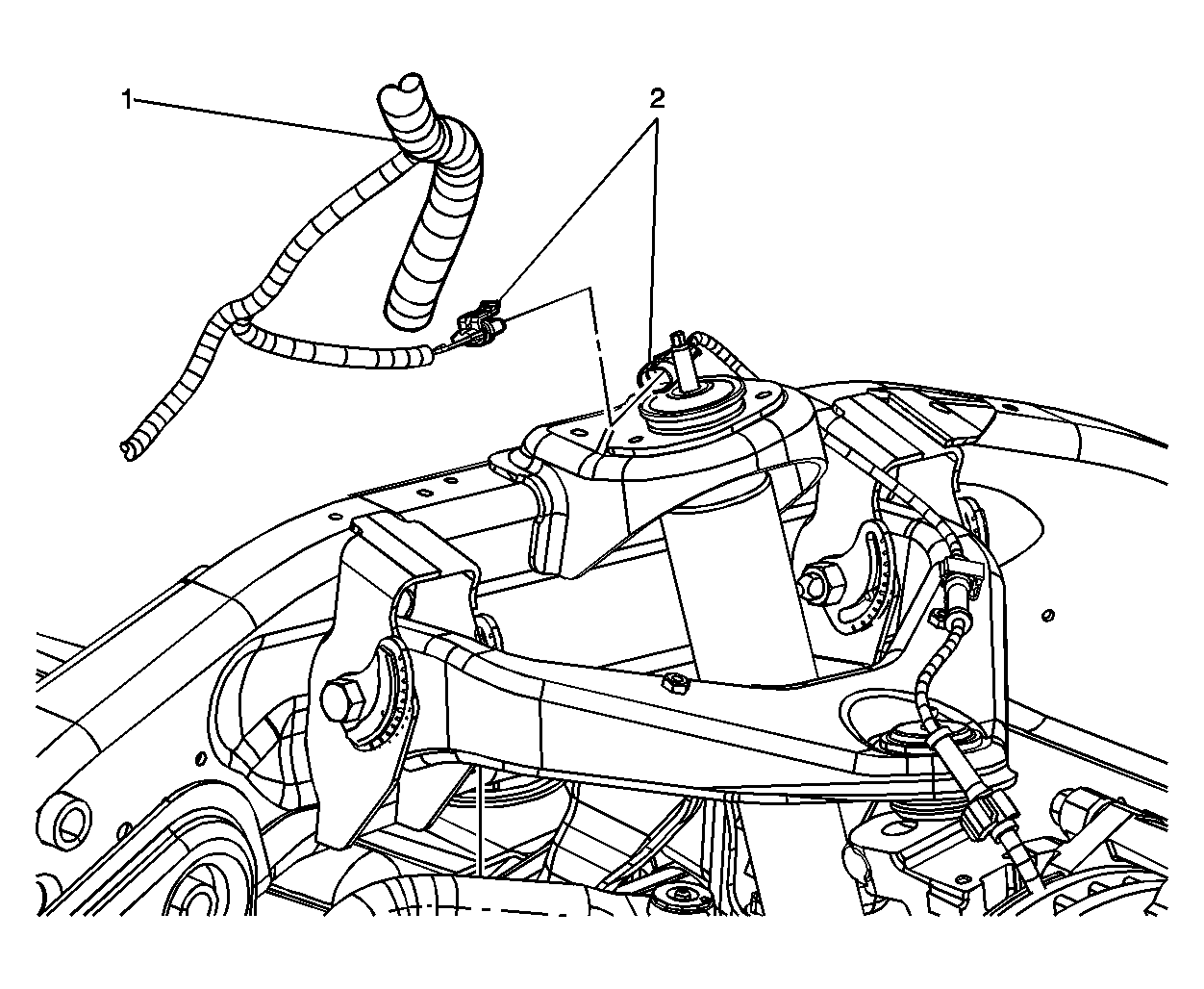

Fig 4: Wheel Speed Sensor (WSS) Component View - LF (RF Similar)
GM828164Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 WSS Connector-LF

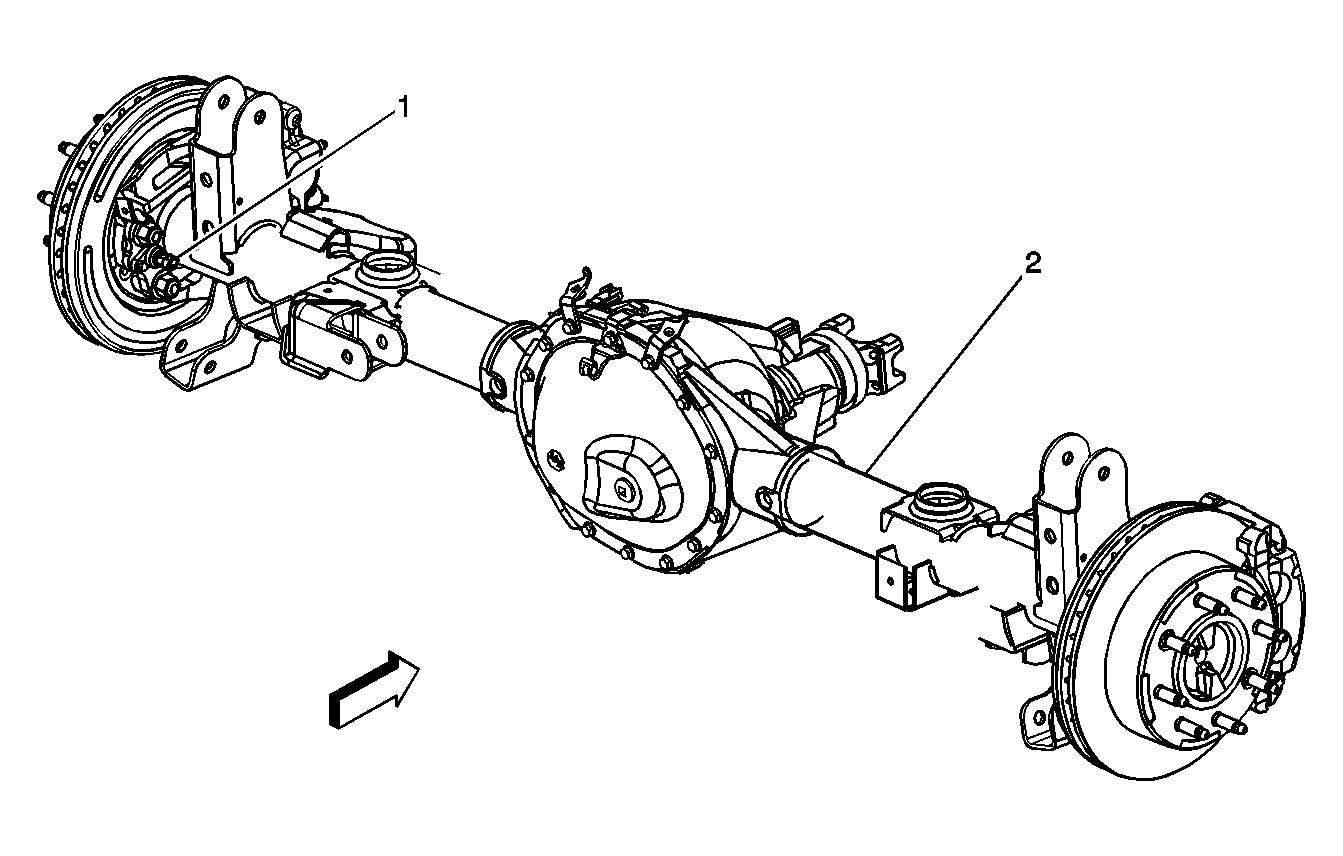

Fig 5: Wheel Speed Sensor (WSS) Component View - LR
GM865849Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 WSS-LR
2 Rear Axle Assembly
