2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

Stationary Windows Component Views

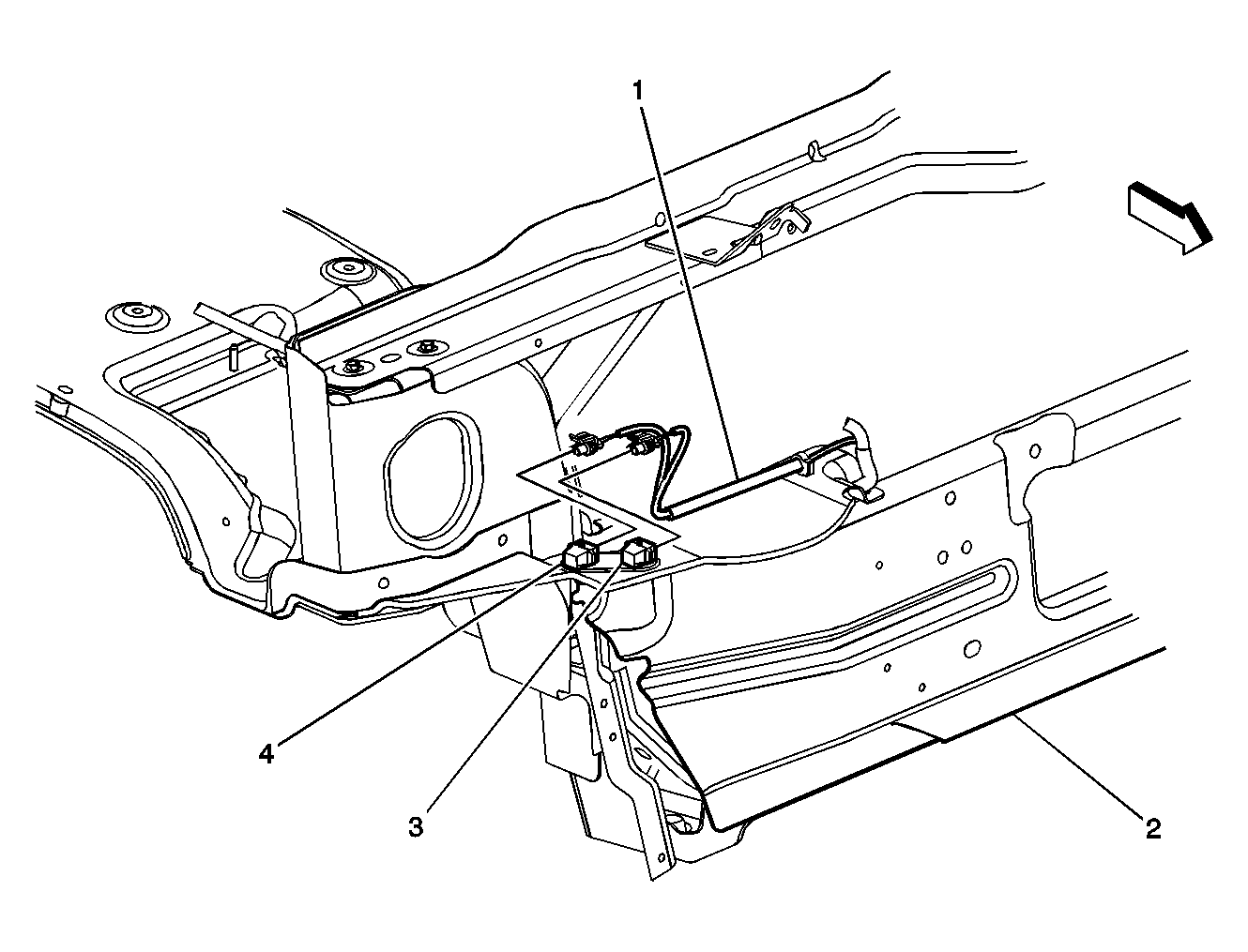

Fig 1: Ambient Air Temperature Sensor - Mirror
GM828997Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Forward Lamp Harness
2 Radiator Support
3 Ambient Air Temperature Sensor - HVAC
4 Ambient Air Temperature Sensor - Mirror

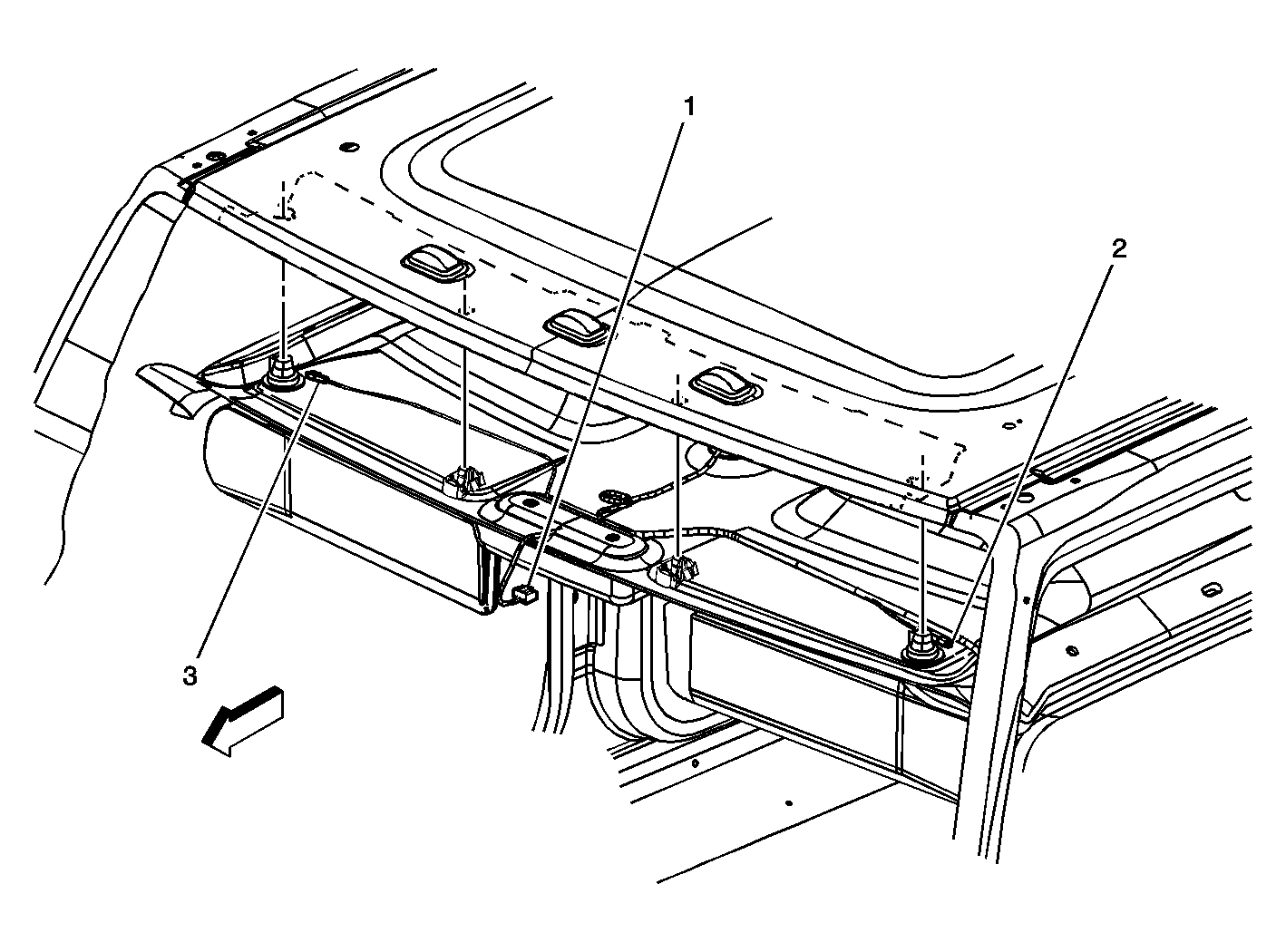

Fig 2: Inside Rearview Mirror Connector
GM826774Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror Connector
2 Vanity Mirror Lamp Connector - Left
3 Vanity Mirror Lamp Connector - Right

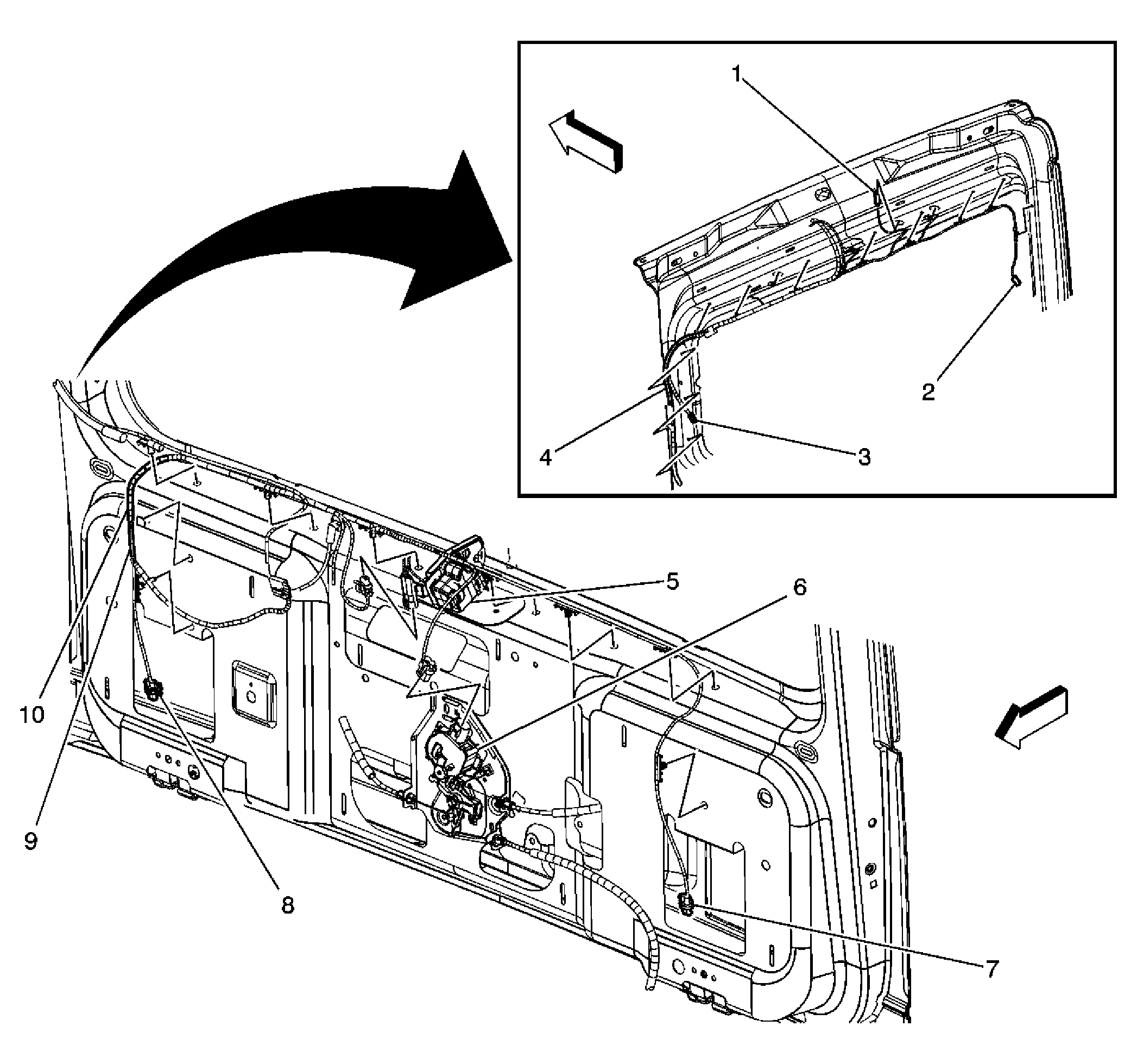

Fig 3: Rear Window Defogger Grid
GM827705Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Center High Mounted Stop Lamp (CHMSL) Connector
2 Rear Window Defogger Grid Connector
3 Rear Window Defogger Grid Connector
4 Splice S900
5 Rear Window Wiper Module - w/Motor
6 Door Lock Actuator-Liftgate
7 Liftgate Ajar Switch-Left
8 Liftgate Ajar Switch-Right
9 Splice S902
10 Splice S901
