2003 Hummer H2FACTORY OEM SERVICE PROCEDURE

Keyless Entry Connector End Views

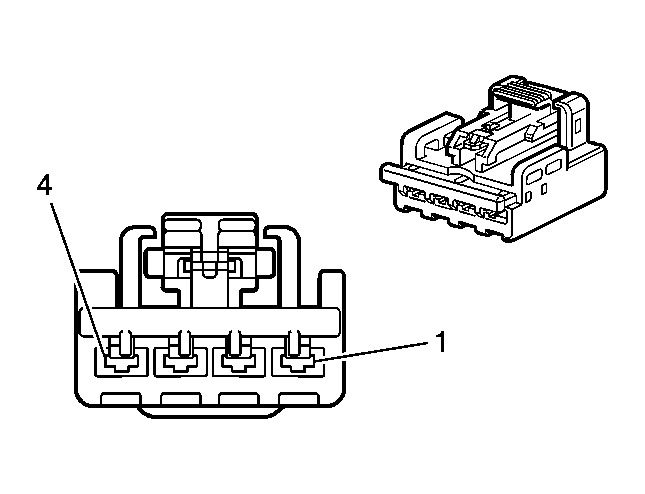

Driver Door Module (DDM) Connector End View - C1

GM845628Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15393410
  • 4-Way F AMP 2.8mm Sealed (NAT)
Pin Wire Color Circuit No. Function
1 BRN 165 Power Window Motor Left Front Down Control
2 ORN 1240 Battery Positive Voltage
3 DK BLU 164 Power Window Motor Left Front Up Control
4 BLK 1050 Ground

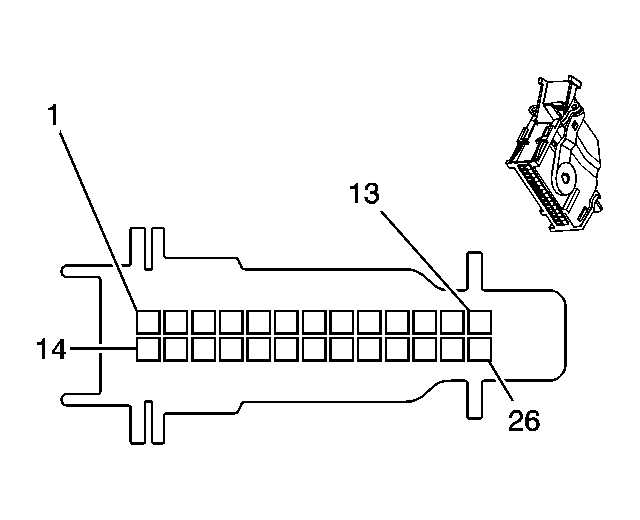

Driver Door Module (DDM) Connector End View - C2

GM845629Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15398841
  • 26-Way F AMP Lever Assist (BLK)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 BRN 1183 Left Front Door Switch Low Reference
4 DK BLU 660 Left Front Door Courtesy Lamp Control
5-9 - - Not Used
10 GRY 1690 Automatic Day/Night Mirror Signal
11 - - Not Used
12 PNK 1691 Automatic Day/Night Mirror Low Reference
13 DK BLU/WHT 149 Courtesy Lamp-Left Front Door Supply Voltage
14 ORN 4140 Battery Positive Voltage
15 LT GRN 262 Driver Door Key Switch Signal
16-17 - - Not Used
18 GRY/BLK 745 Left Front Door Ajar Switch Signal
19 - - Not Used
20 TAN 294 Door Lock Actuator Unlock Control
21 GRY 295 Door Lock Actuator Lock Control
22 BRN 1046 DDM Class 2 Serial Data
23-26 - - Not Used
Front Passenger Door Module (FPDM) Connector End View - C1

GM845628Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15393410
  • 4-Way F 2.8mm Sealed AMP (NAT)
Pin Wire Color Circuit No. Function
1 BRN 667 Power Window Motor Right Front Down Control
2 ORN 1340 Battery Positive Voltage
3 BLK 1050 Ground
4 DK BLU 666 Power Window Motor Right Front Up Control
Front Passenger Door Module (FPDM) Connector End View - C2

GM845629Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15398841
  • 26-Way F AMP Lever Assist (BLK)
Pin Wire Color Circuit No. Function
1-4 - - Not Used
5 BLK/WHT 746 Right Front Door Ajar Switch Signal
6-7 - - Not Used
8 WHT 156 Courtesy Lamp-Right Front Door Supply Voltage
9 - - Not Used
10 GRY 295 Door Lock Actuator Lock Control
11 TAN 294 Door Lock Actuator Unlock Control
12-13 - - Not Used
14 ORN 4240 Battery Positive Voltage
15-18 - - Not Used
19 LT BLU 661 Right Front Door Courtesy Lamp Control
20 DK GRN 1178 Right Front Door Switch Low Reference
21 - - Not Used
22 TAN 1047 PDM Class 2 Serial Data
23 - - Not Used
24 LT GRN 265 Passenger Door Key Switch Signal
25-26 - - Not Used
