1998 Hummer H1 V8-6.5L DSLFACTORY OEM SERVICE PROCEDURE
Coolant Temperature Sensor/Switch (For Computer): Service and Repair

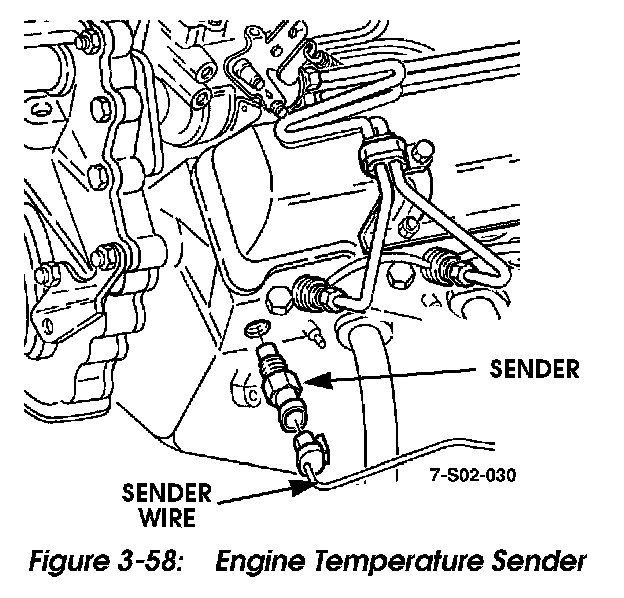

Figure 3-58: Engine Temperature Sender:
ENGINE TEMPERATURE SENDER REPLACEMENT
1. Remove nut, lockwasher, lead, and sender from engine (Figure 3-58).
2. Apply teflon sealant to sender threads, and install sender, lead, lockwasher, and nut on engine (Figure 3-58).
