Engine Oil Jet Replacement: Replacement
NOTE:
Where icon is shown for further information continue to the information below.
| Detailed information, notes, and precautions | |
| Torque: N.m (kgf.m, lbf.ft) | |
| Replace |

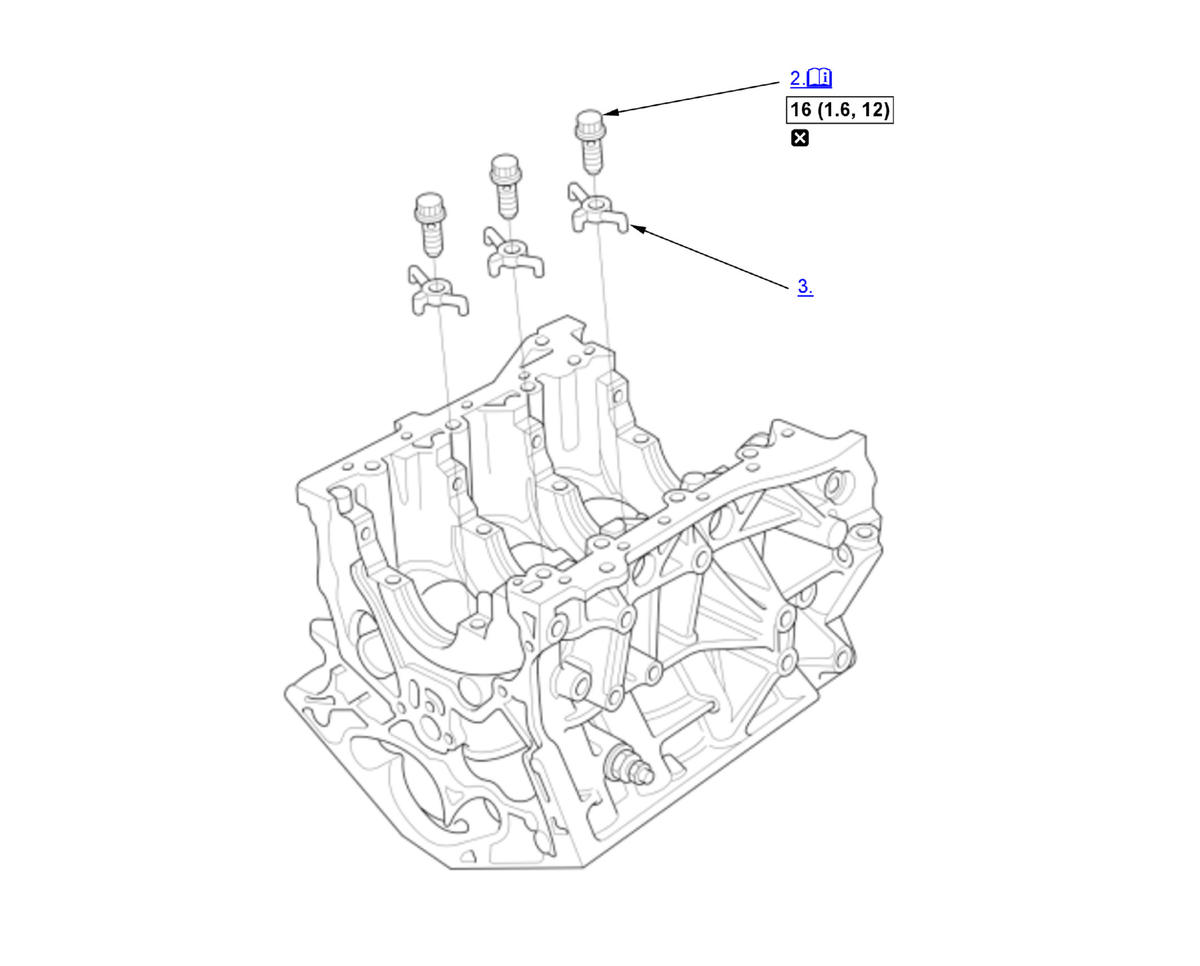

- Crankshaft - Remove
- Oil Jet Bolt - Remove
Note for installation
When installing the oil jet bolt, apply new engine oil to the bolt threads.
- Oil Jet - Remove
- All Removed Parts - Install
1. Install the parts in the reverse order of removal.
