2021 Honda Ridgeline RTL, AWDFACTORY OEM SERVICE PROCEDURE

Valve Guide Replacement: Replacement

  1. Valve Seal and Valve Spring Seat - Remove
  2. Valve Guide - Remove
    GHH455006Courtesy of HONDA, U.S.A., INC.

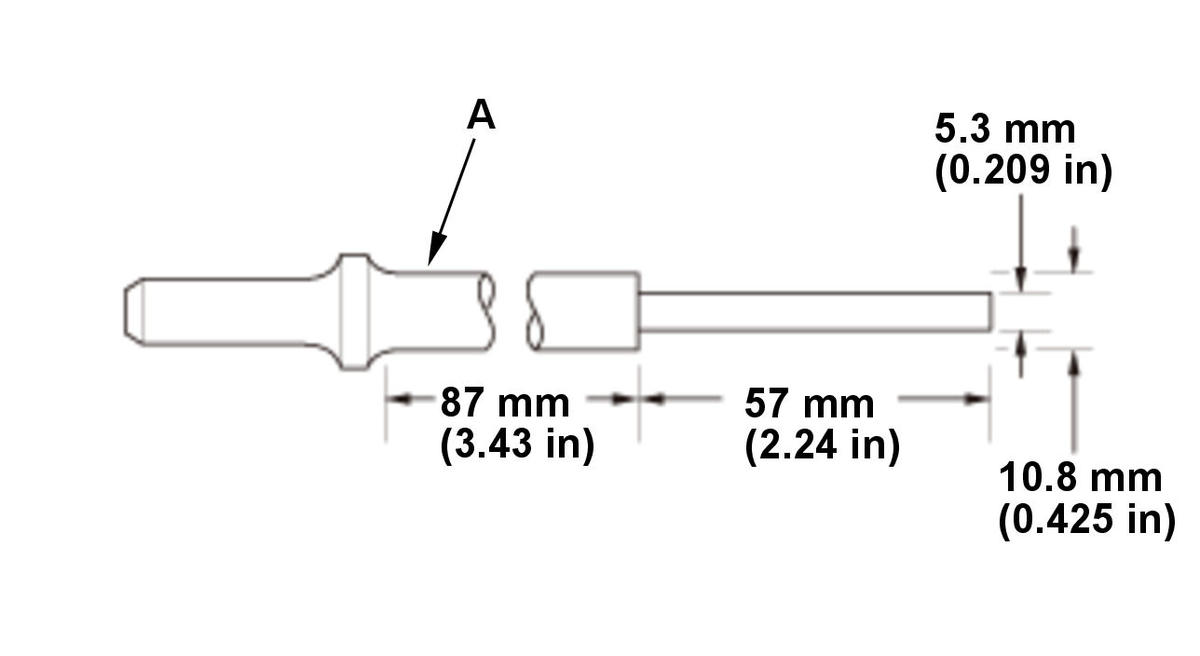

    		 1. As illustrated, use a commercially available air-impact valve guide driver (A) modified to fit the diameter of the valve guides. In most cases, the same procedure can be done using the valve guide driver, 5.35 x 9.7 mm and a conventional hammer.

    2. Select the proper replacement valve guides, and chill them in the freezer section of a refrigerator for at least an hour.
    GHH455007Courtesy of HONDA, U.S.A., INC.

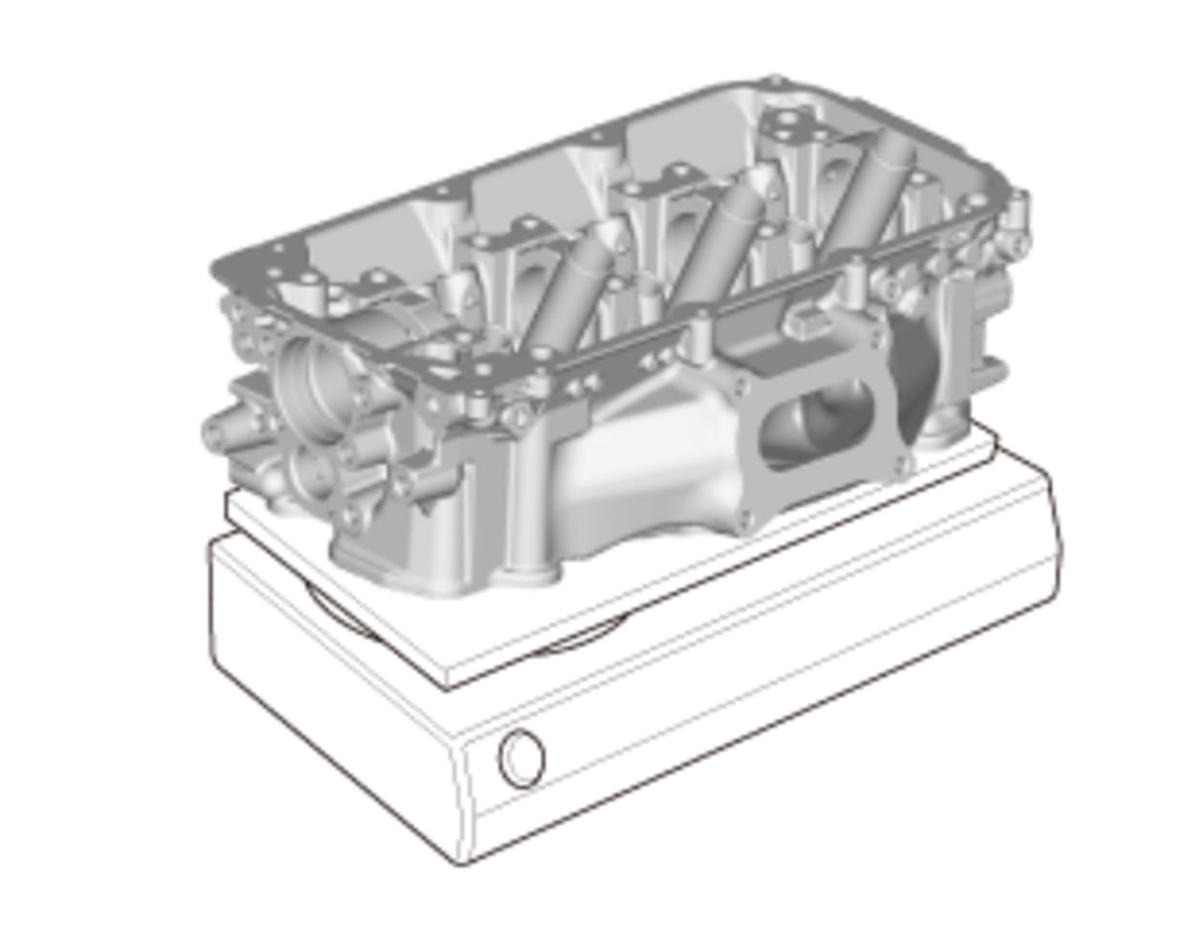

    		 3. Use a hot plate or an oven to evenly heat the cylinder head to 300°F (150°C). Monitor the temperature with a cooking thermometer. Do not get the cylinder head hotter than 300°F (150°C); excessive heat may loosen the valve seats.

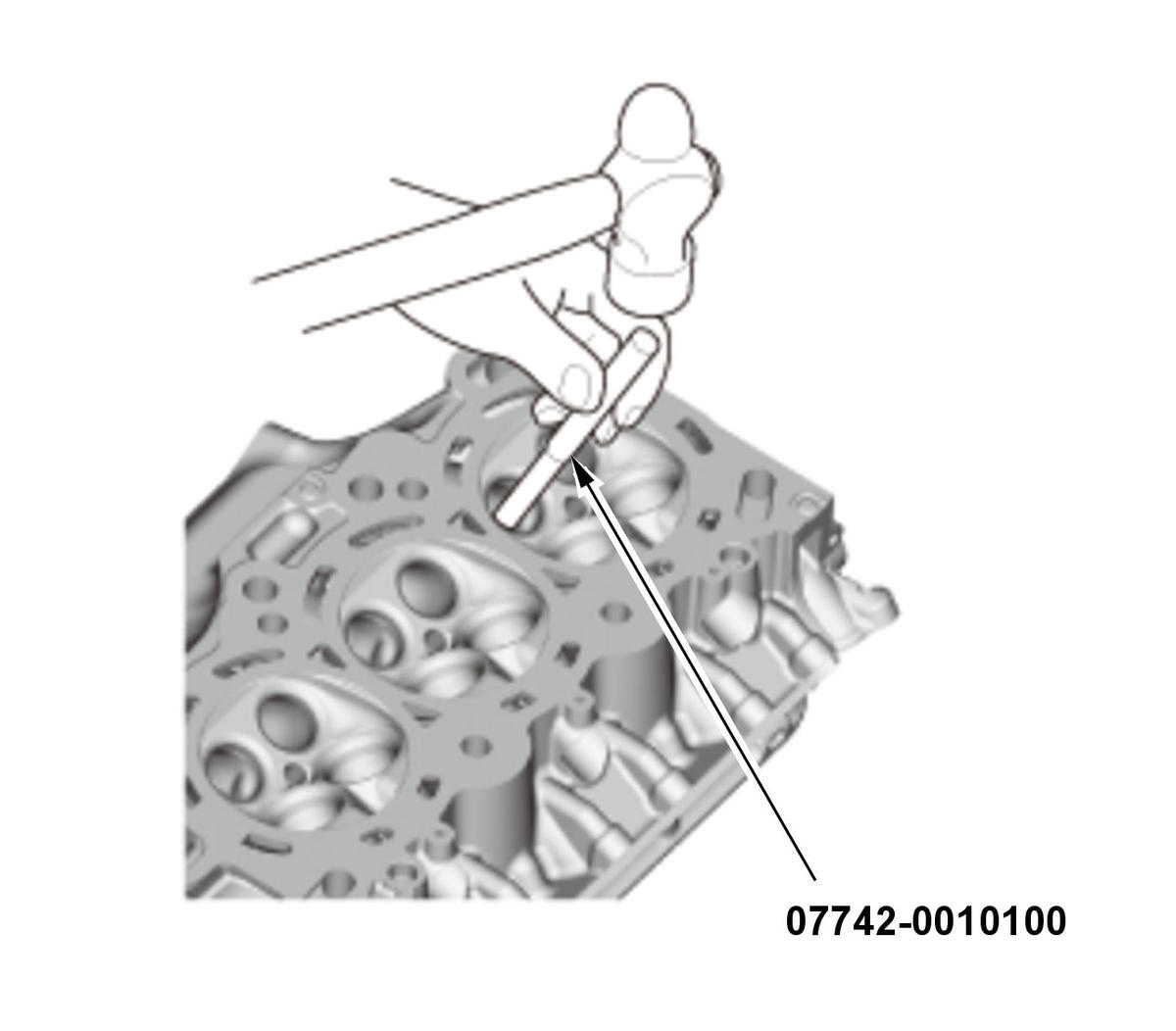

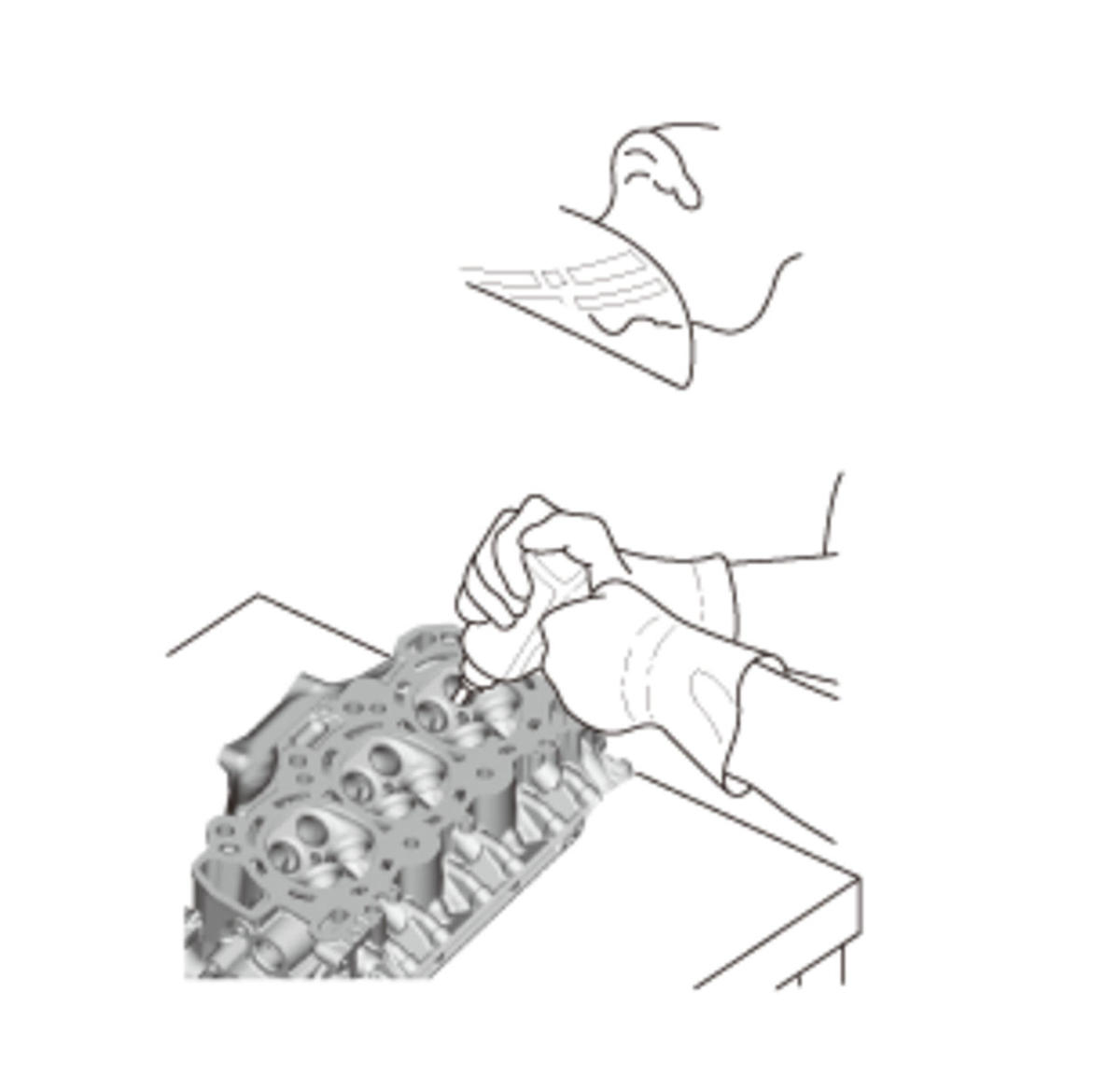

    GHH455008GHH455009Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
