VTEC Rocker Arm
Rear bank intake rocker arm

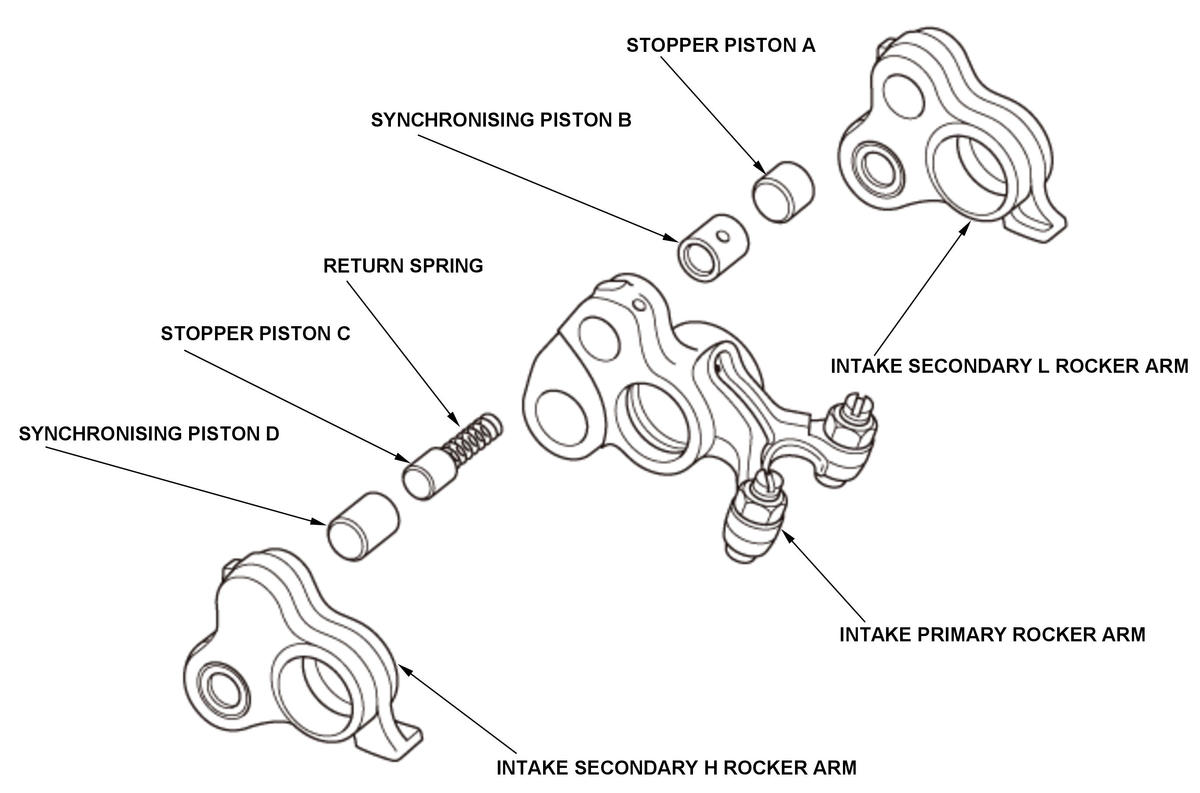

The intake rocker arms on the rear bank are divided into intake primary rocker arms, intake secondary H rocker arms, and intake secondary L rocker arms; stopper piston A, synchronizing piston B, stopper piston C, synchronizing piston D, and the return spring are installed in the hole on the rocker arm.
Rear bank exhaust rocker arm

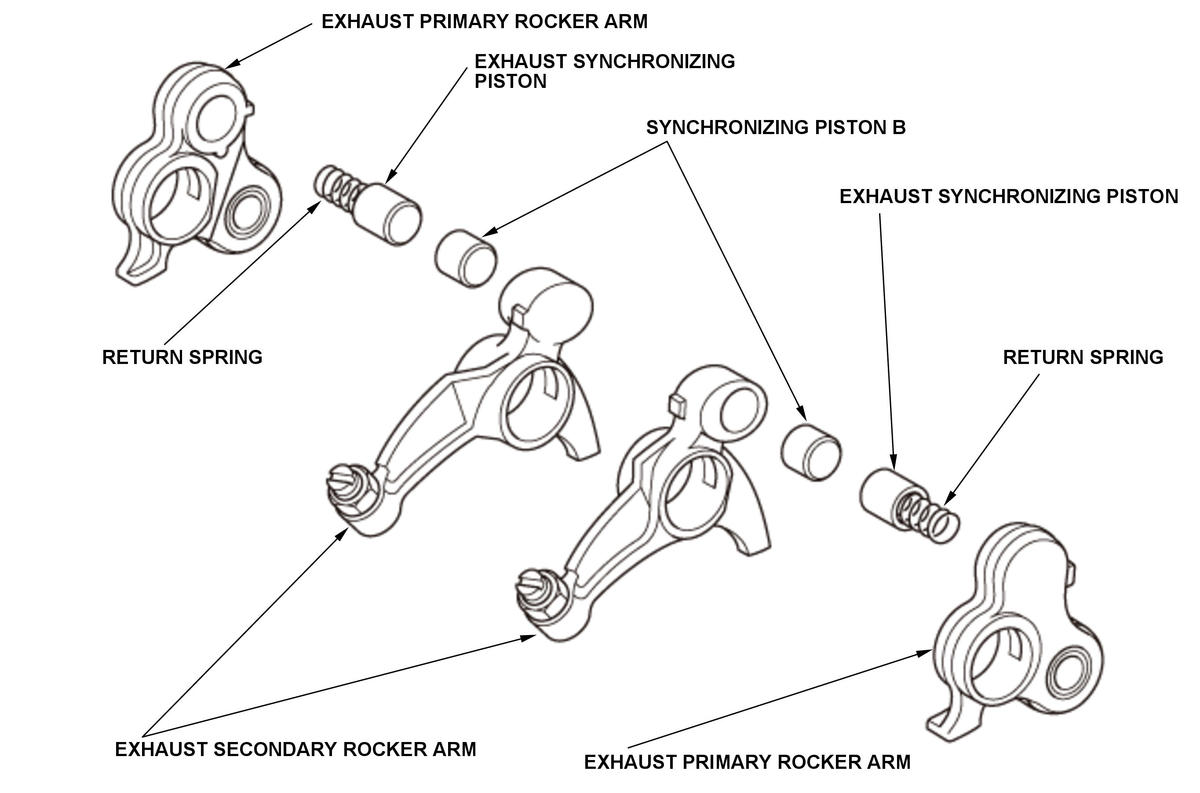

The exhaust rocker arms on the rear bank are divided into exhaust primary rocker arms and exhaust secondary rocker arms; the exhaust synchronizing piston, synchronizing piston B, and the return spring are installed in the hole on the rocker arm.
Front bank intake rocker arm

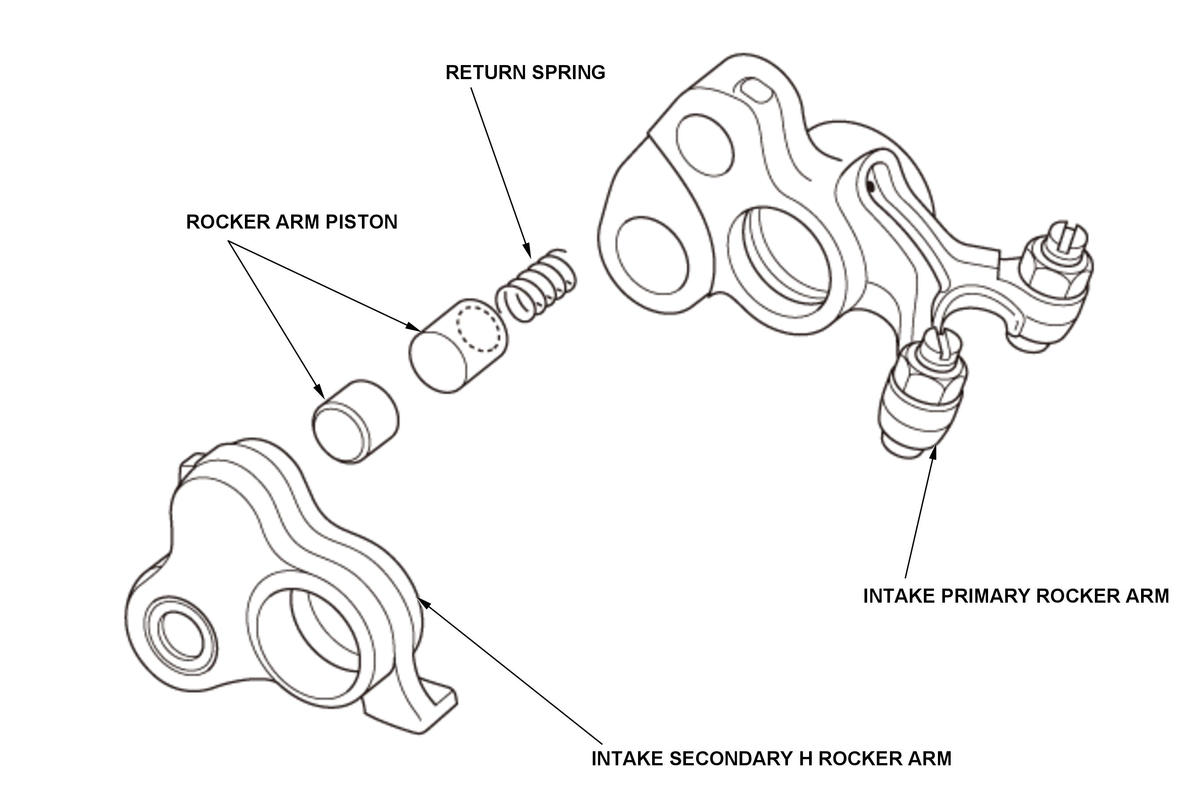

The intake rocker arms on the front bank are divided into intake primary rocker arms and intake secondary H rocker arms; the rocker arm piston and the return spring are installed in the hole on the rocker arm.
