2021 Honda Pilot EliteFACTORY OEM SERVICE PROCEDURE

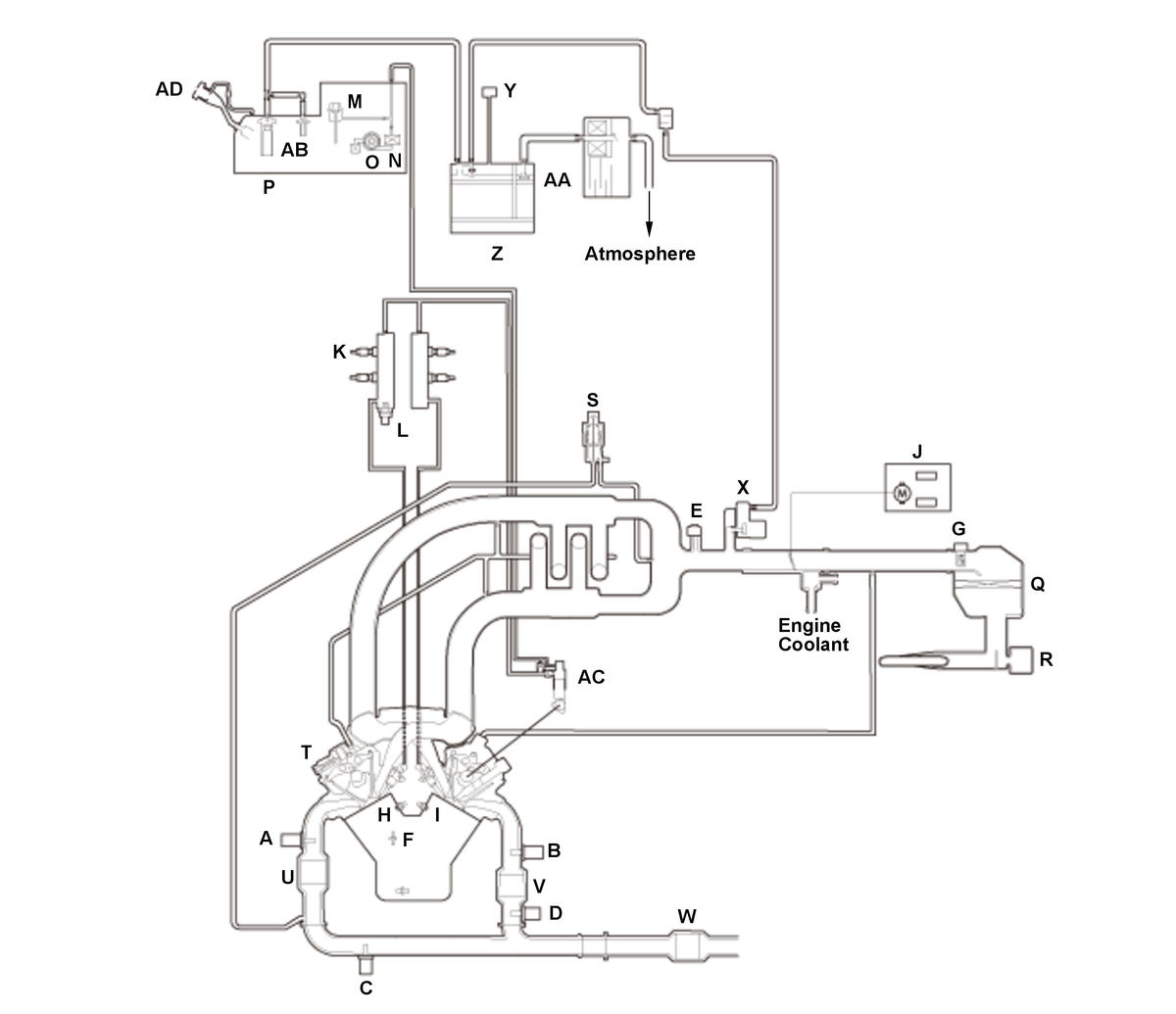

PGM-FI - Components
| A | FRONT A/F SENSOR (BANK 2, SENSOR1) | P | FUEL TANK | ||
| B | REAR A/F SENSOR (BANK 1, SENSOR 1) | Q | AIR CLEANER | ||
| C | FRONT SECONDARY HO2S (BANK 2, SENSOR 2) | R | INTAKE AIR RESONATOR | ||
| D | REAR SECONDARY HO2S (BANK 1, SENSOR 2) | S | EGR VALVE AND EGR VALVE POSITION SENSOR | ||
| E | MAP SENSOR | T | PCV VALVE | ||
| F | ECT SENSOR 1 | U | FRONT WU-TWC (BANK 2) | ||
| G | MAF SENSOR/IAT SENSOR | V | REAR WU-TWC (BANK 1) | ||
| H | KNOCK SENSOR 2 (BANK 2) | W | UNDER-FLOOR TWC | ||
| I | KNOCK SENSOR 1 (BANK 1) | X | EVAP CANISTER PURGE VALVE | ||
| J | THROTTLE BODY | Y | FTP SENSOR | ||
| K | FUEL INJECTOR | Z | EVAP CANISTER | ||
| L | FUEL RAIL PRESSURE SENSOR | AA | EVAP CANISTER VENT SHUT VALVE | ||
| M | FUEL PRESSURE REGULATOR | AB | FUEL TANK VAPOR CONTROL VALVE | ||
| N | FUEL FILTER | AC | HIGH PRESSURE FUEL PUMP | ||
| O | FUEL PUMP | AD | MIS-FUEL INHIBIT DEVICE |
