2021 Honda Pilot EliteFACTORY OEM SERVICE PROCEDURE

Engine Control System / Engine Mechanical - Service, Testing & Troubleshooting: Inspection: Valve: Inspection

  1. Valve - Remove
  2. Valve - Inspect

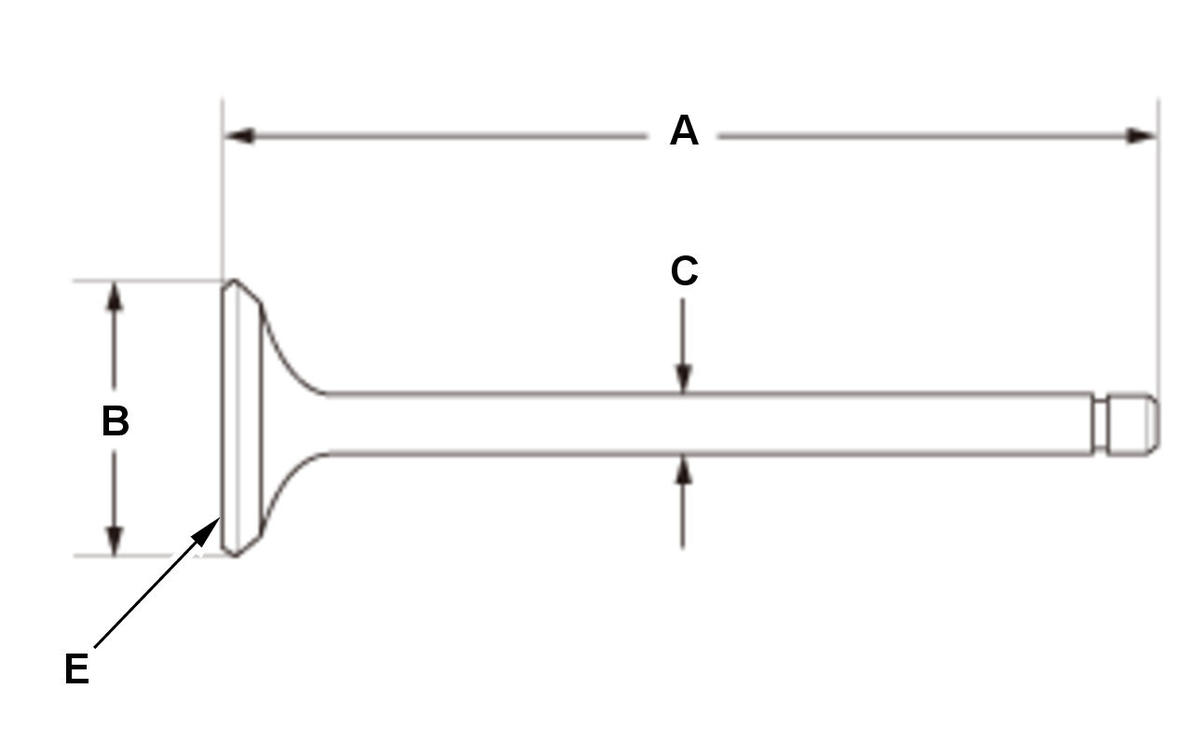

    GHH308427Courtesy of HONDA, U.S.A., INC.
    		 1. Measure the valve in these areas.

    NOTE:  The letter (D or S) is stamped on the exhaust valve head (E).

    Intake Valve Dimensions
    A Standard (New): 116.55-117.15 mm (4.5886-4.6122 in)

    B Standard (New): 35.9-36.1 mm (1.413-1.421 in)

    C Standard (New): 5.485-5.495 mm (0.21594-0.21634 in)

    C Service Limit: 5.485 mm (0.21594 in)


    Exhaust Valve Dimensions

    A Standard (New): 113.90-114.50 mm (4.4842-4.5079 in)

    B Standard (New):
    D: 29.85-30.15 mm (1.1752-1.1870 in)
    S: 29.9-30.1 mm (1.177-1.185 in)

    C Standard (New): 5.450-5.460 mm (0.21457-0.21496 in)

    C Service Limit: 5.450 mm (0.21457 in)
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
