Engine Block Overhaul: Removal

NOTE:

• Where icon is shown for further information continue to the information below.

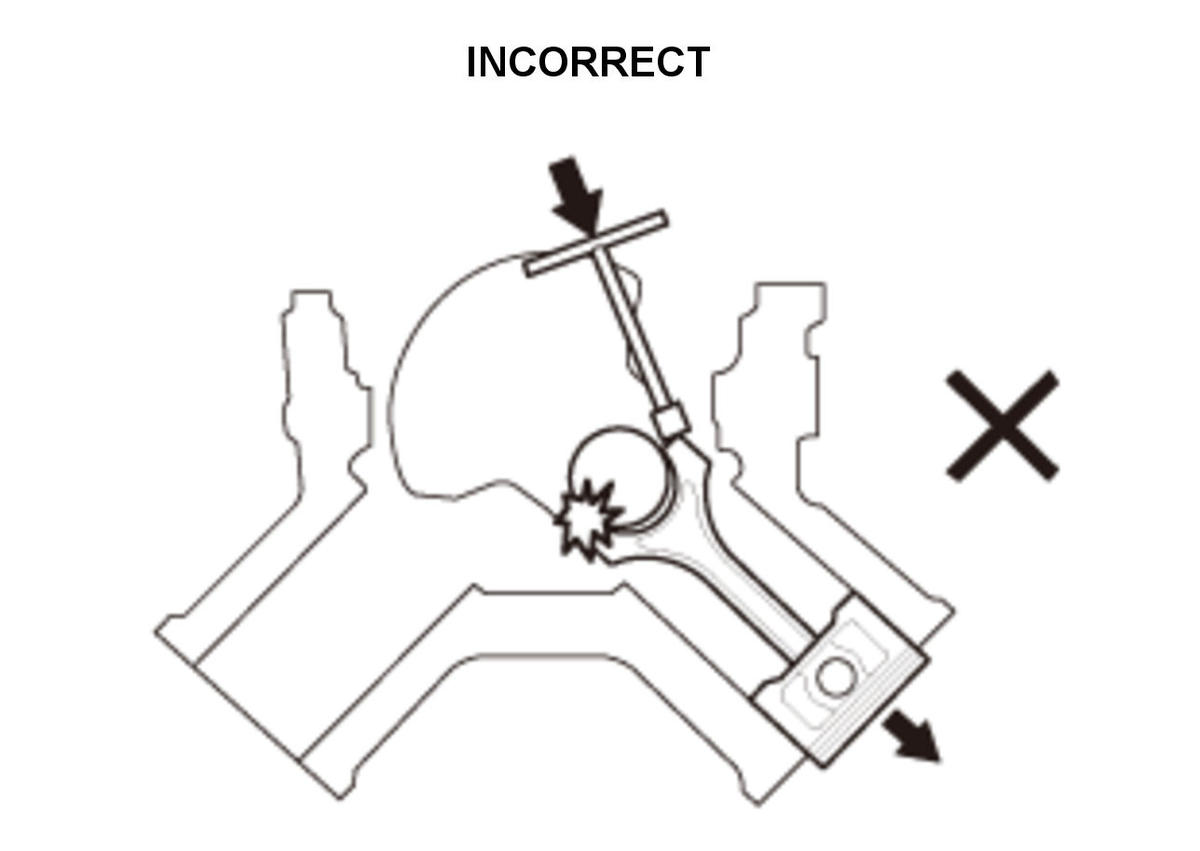

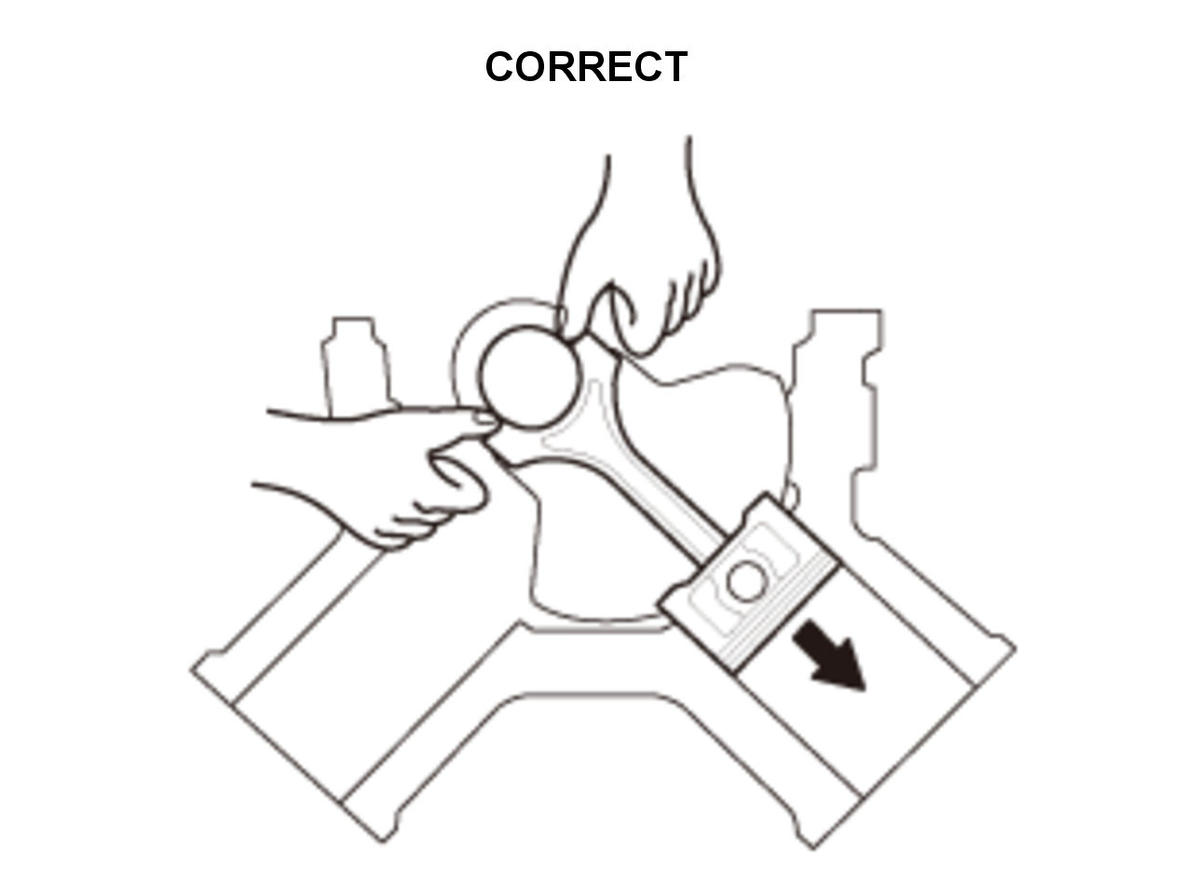

• Be careful not to damage the journals and the CKP pulse plate.

Courtesy of HONDA, U.S.A., INC.

Replace

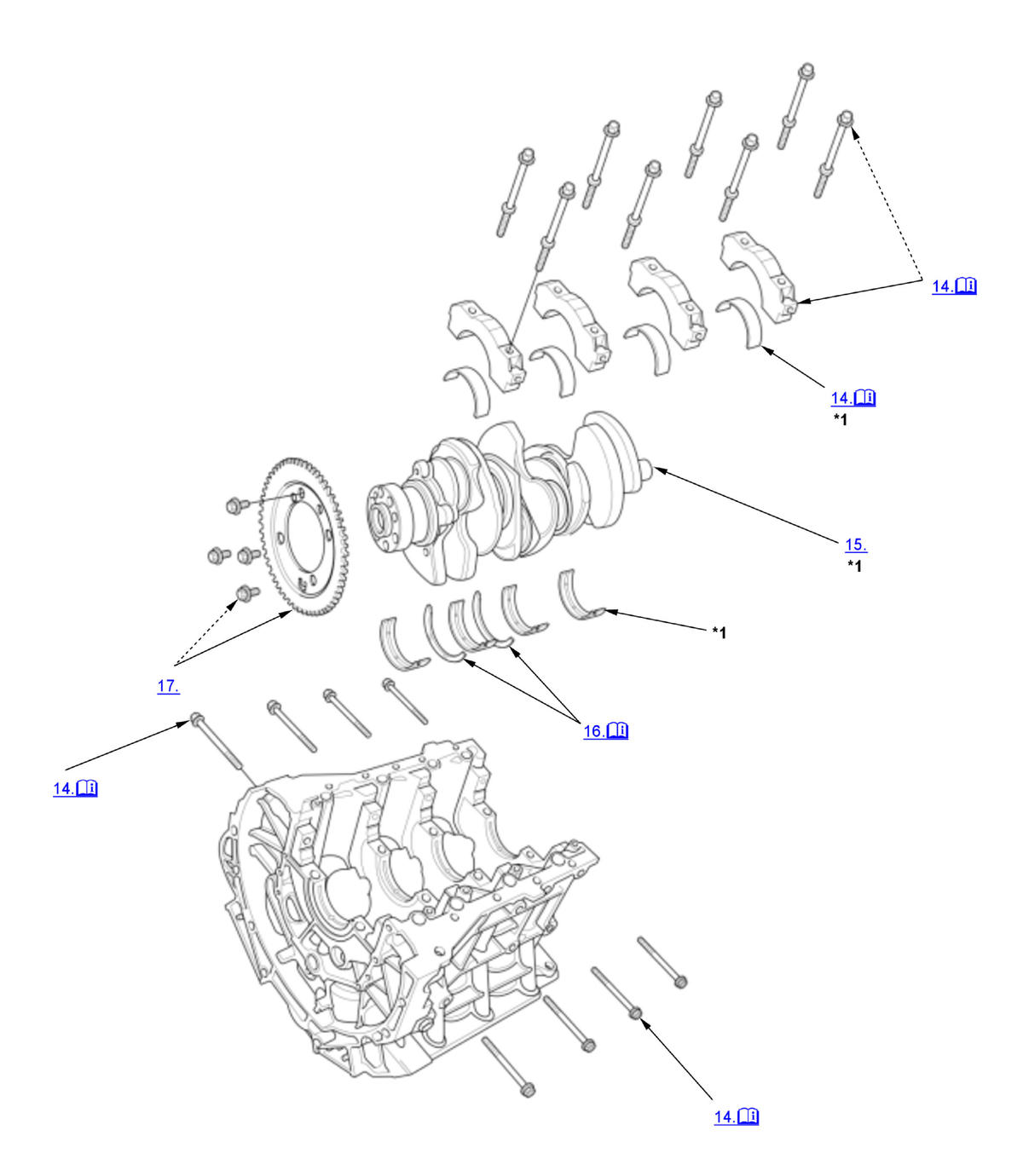

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
*1	These parts have inspection items.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
*1	These parts have inspection items.

1. Transmission - Remove
2. Drive Plate - Remove
3. Oil Pan - Remove
4. Oil Strainer - Remove
5. Oil Pump - Remove

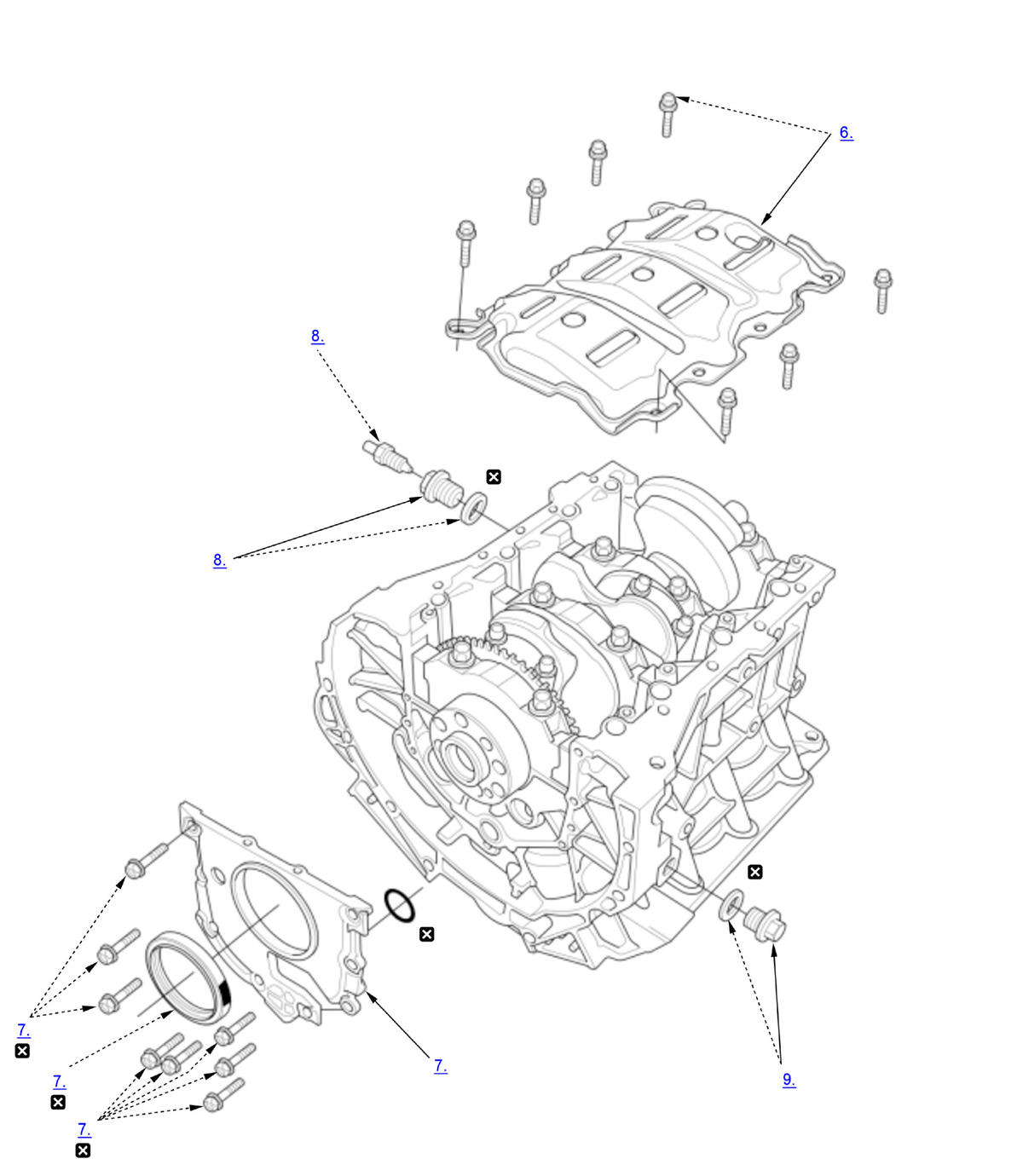

6. Baffle Plate - Remove
7. Engine Block End Cover - Remove
8. Drain Bolt - Remove (If needed)
9. Sealing Bolt - Remove (If needed)

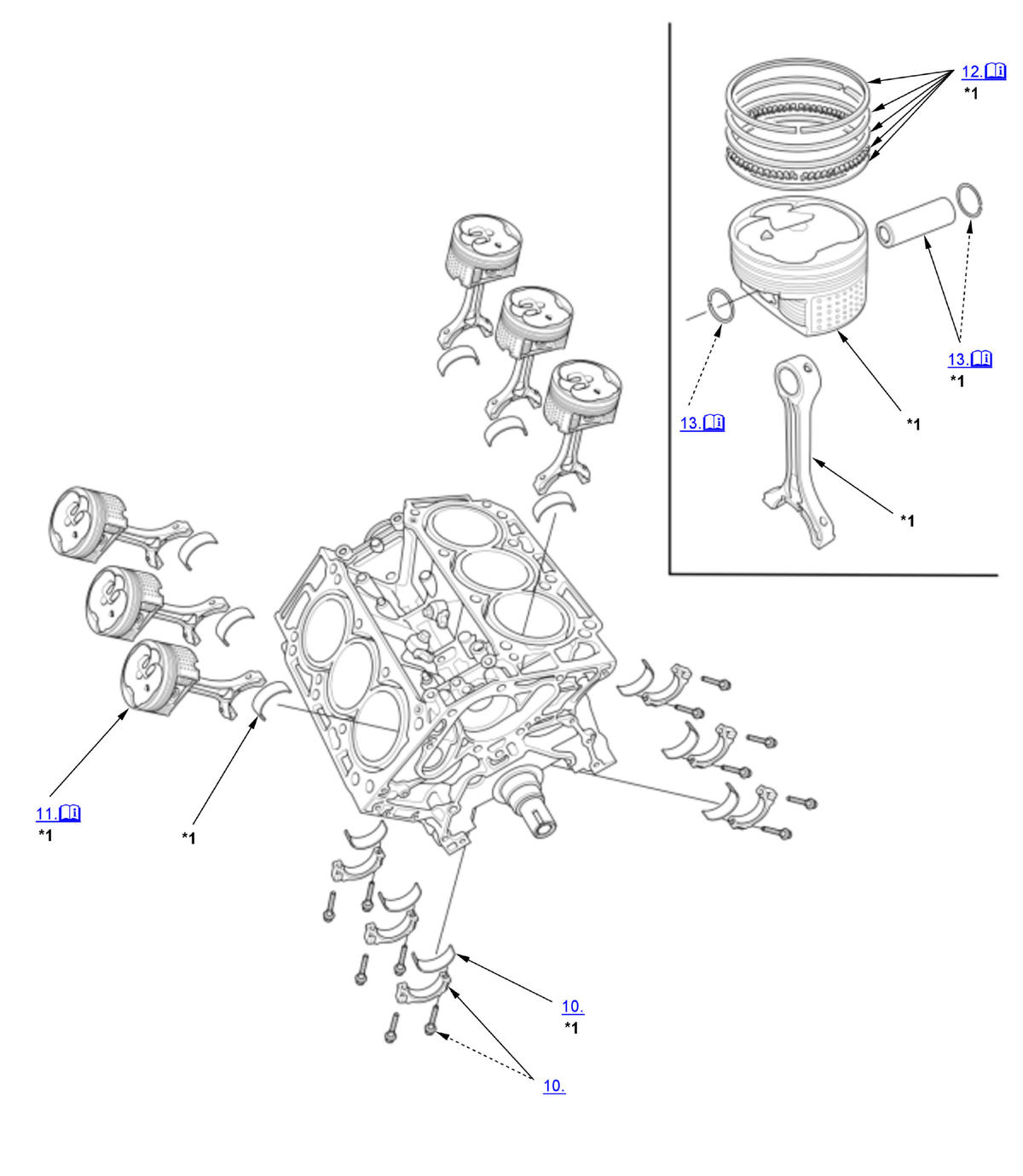

10. Connecting Rod Cap and Bearing Half - Remove
11. Piston/Connecting Rod Assembly - Remove

    Courtesy of HONDA, U.S.A., INC.

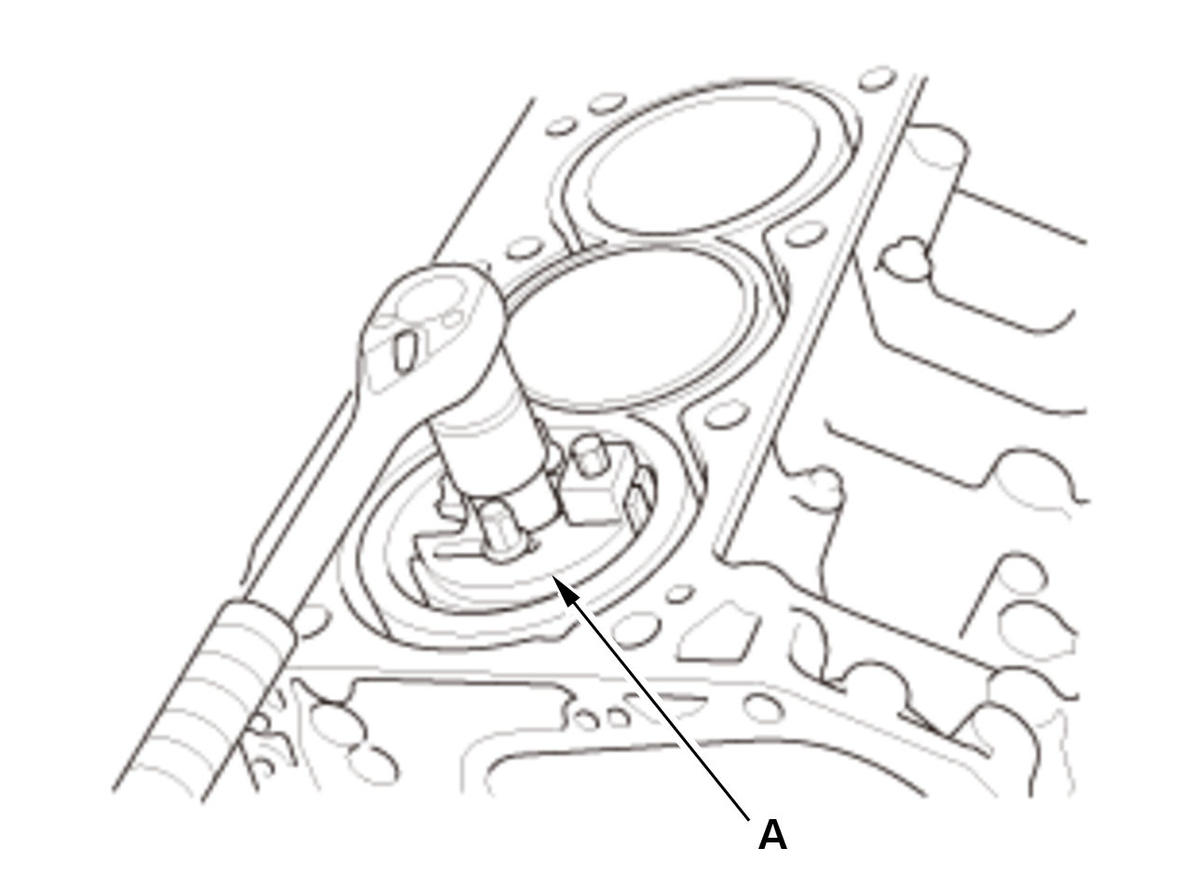

    1. If you can feel a ridge of metal or hard carbon around the top of each cylinder, remove it with a ridge reamer (A). Follow the reamer manufacturer's instructions. If the ridge is not removed, it may damage the piston as it is pushed out.
