DTC P0973: General Description
| Capacity of Over Drive Clutch | Shift Solenoid Valve A | ||
| ON (12 V) | OFF (0 V) | ||
| Shift Solenoid Valve B | ON (12 V) | ON | OFF |
| OFF (0 V) | OFF | OFF | |

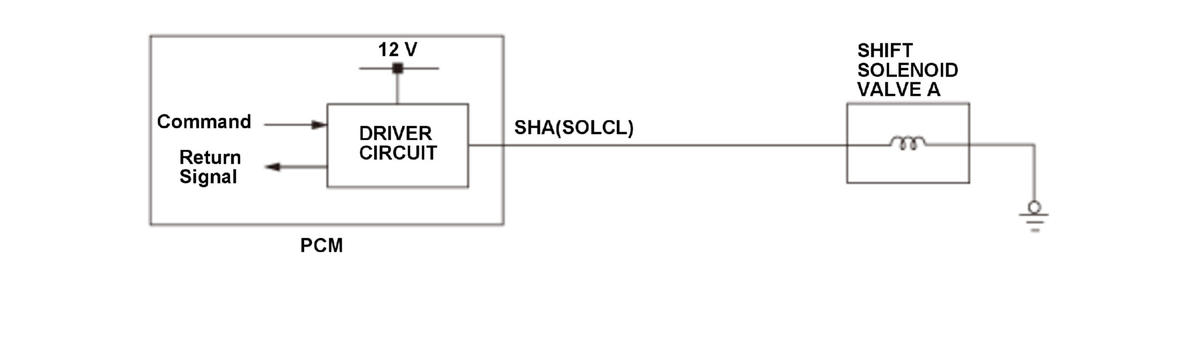

When shift solenoid valves A and B are turned ON, the hydraulic pressure circuit opens. The hydraulic pressure circuit supplies/discharges hydraulic pressure to/from each clutch according to the combination of the ON/OFF status of the shift solenoid valves. The powertrain control module (PCM) commands the driver circuit to turn on the shift solenoid valve. The circuit detects malfunctions such as a circuit short or open, and sends back a return signal during the PCM's command. When the return signal does not match the PCM command to turn ON the shift solenoid valve, the PCM detects a malfunction and stores a DTC.
