DTC P04DF: General Description

Courtesy of HONDA, U.S.A., INC.

The fuel vapor in the fuel tank is temporarily stored in the evaporative emission (EVAP) canister and drawn into the engine through the EVAP canister purge valve. The powertrain control module (PCM) controls the amount of vapor introduced into the engine by varying the duty cycle of the EVAP canister purge valve according to the condition of the engine.

<STEP 1>

The EVAP canister purge valve opens normally (EVAP canister purge valve OPEN OK) and detects that the purge flow is normal when the pulse of the EVAP canister purge valve duty cycle is transmitted to the fuel tank pressure (FTP) sensor during purge flow (pulse method).

OK determination: Pulse exists (P0441 OK)

• P04F1 Purge flow OK
• P04DF EVAP canister purge valve stuck Open OK

NG determination: No pulse (P0441 NG)

• Either purge flow P04F1 abnormality or P04DF EVAP canister purge valve OPEN failure
• In this case, classify the failed part according to <STEP 2>

<STEP 2>

If there is no pulse, it is determined as either no purge flow or the EVAP canister purge valve is stuck OPEN:

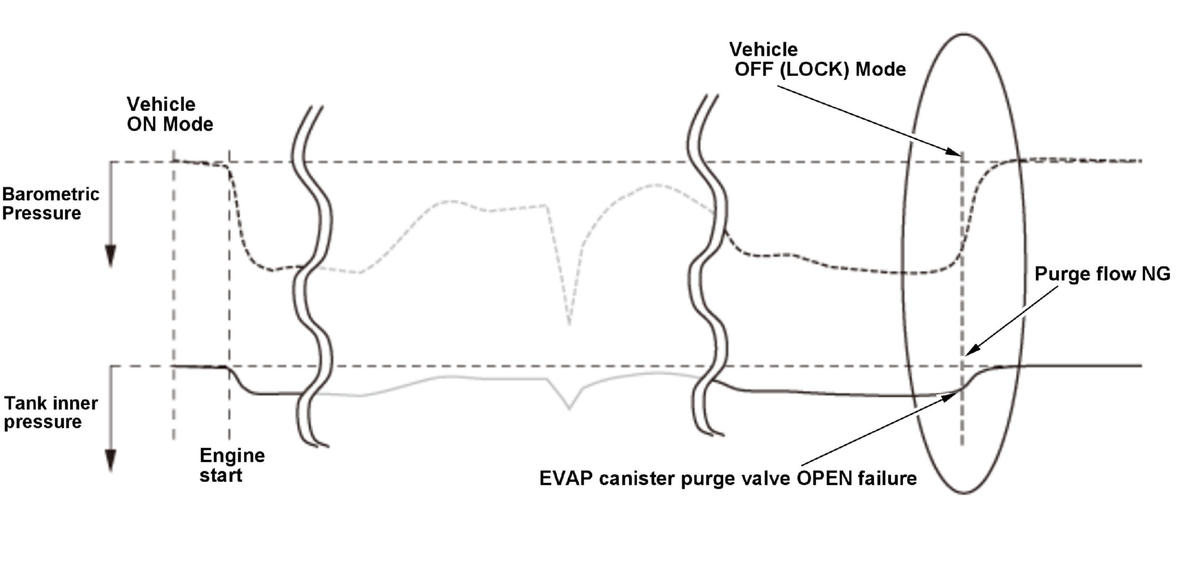

When the EVAP leak check module pressure sensor fluctuates from negative pressure to atmospheric pressure after the engine stopped: P04DF EVAP canister purge valve stuck OPEN

When there is no fluctuation of the EVAP leak check module pressure sensor: P04F1 purge flow NG
