DTC P04C2: General Description

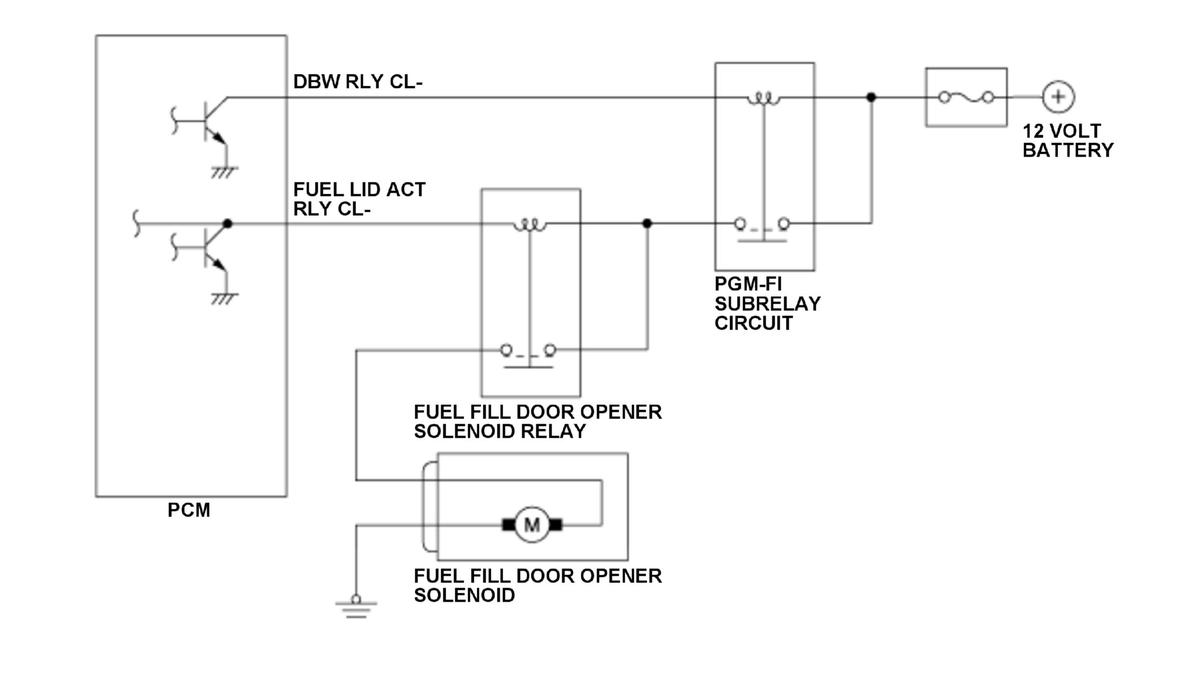

The fuel fill door opener solenoid relay is installed to switch the power source of the actuator for the fuel lid open control for refueling. The fuel fill door opener solenoid relay is normally non-energized and the fuel lid is closed. The powertrain control module (PCM) detects a malfunction and stores a DTC when close signal is returned continuously for the prescribed time or more though open signal is not output to the fuel fill door opener solenoid relay.
