DTC P011A: General Description

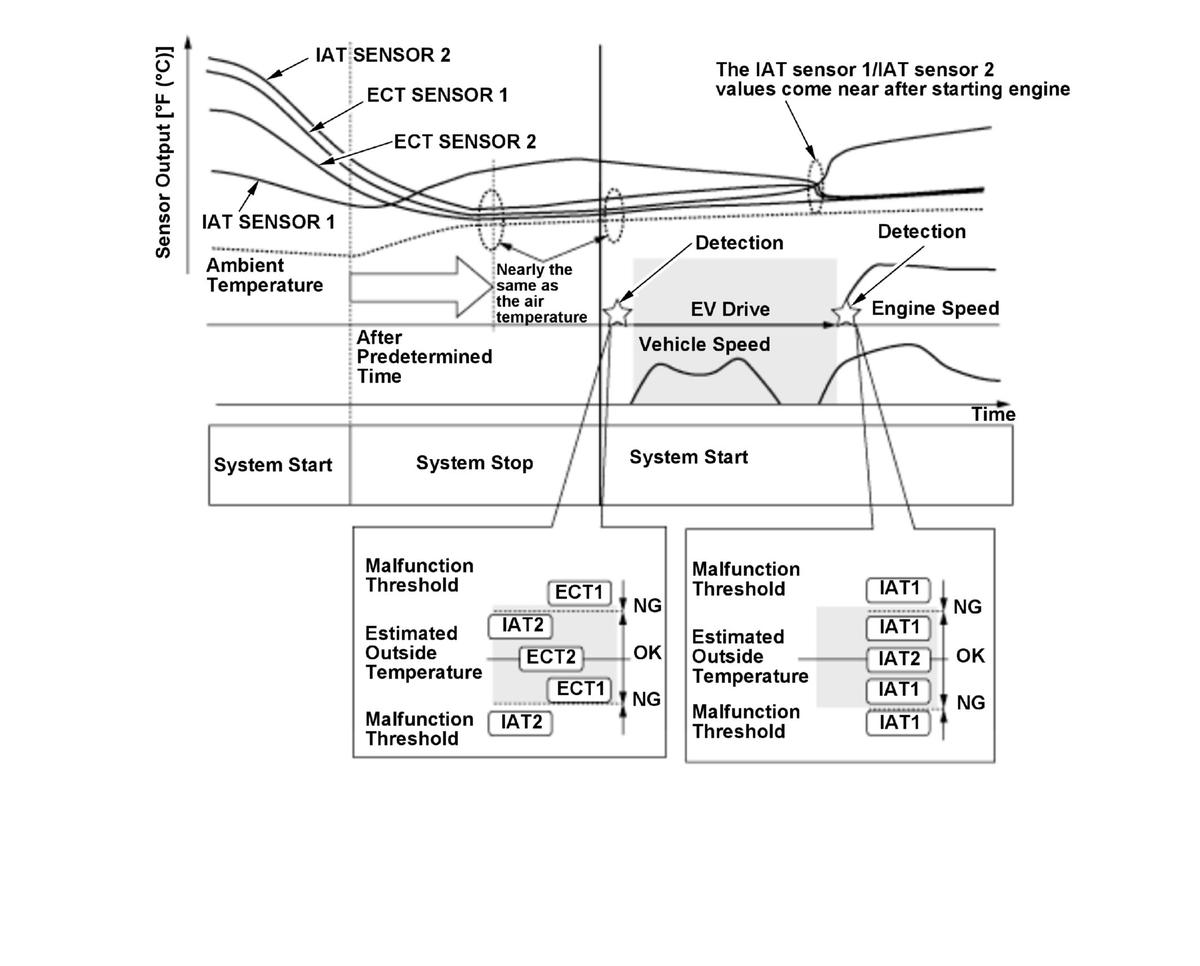

The powertrain control module (PCM) is equipped with two engine coolant temperature (ECT) sensors and two intake air temperature (IAT) sensors in order to measure engine temperature. The ECT sensor 1 / ECT sensor 2 and the IAT sensor 2 temperatures are nearly the same as the air temperature after sufficient time has passed. Furthermore, the IAT sensor 1 / IAT sensor 2 values equalize after starting the engine since they are located in the same air intake path. When the system is started after the prescribed time stopped, the IAT sensor 2 detects a malfunction comparing the ECT sensor 1 and ECT sensor 2. When the sensors are normal, the PCM detects a malfunction in the IAT sensor 1 and stores a DTC comparing temperatures of from the IAT 1 sensor and IAT 2 sensor after starting the engine.
