System Description: Overview: Notes
The active control engine mount (ACM) system reduces the amount of engine vibration which is transmitted to the passenger's compartment.

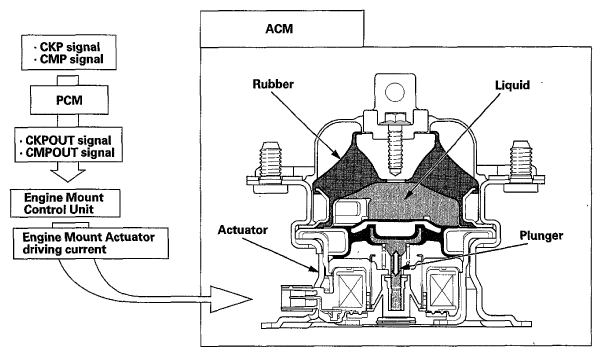

The ACM system consists of the engine mount actuators, the engine mount control unit, and the PCM.
The PCM receives the engine vibration signal from the CKP sensor and the CMP sensor, then sends the signal which is in phase with the predicted engine vibration to the engine mount control unit.

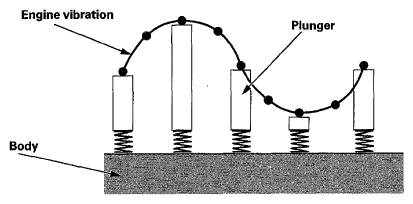

The engine mount control unit sends current for driving the ACM actuator to the actuator and it operates the plunger to reduce the amount of engine vibration.
The ACM changes the engine mount firmness with the actuator and the plunger.
