2012 Honda Ridgeline V6-3.5LFACTORY OEM SERVICE PROCEDURE
Intake Manifold

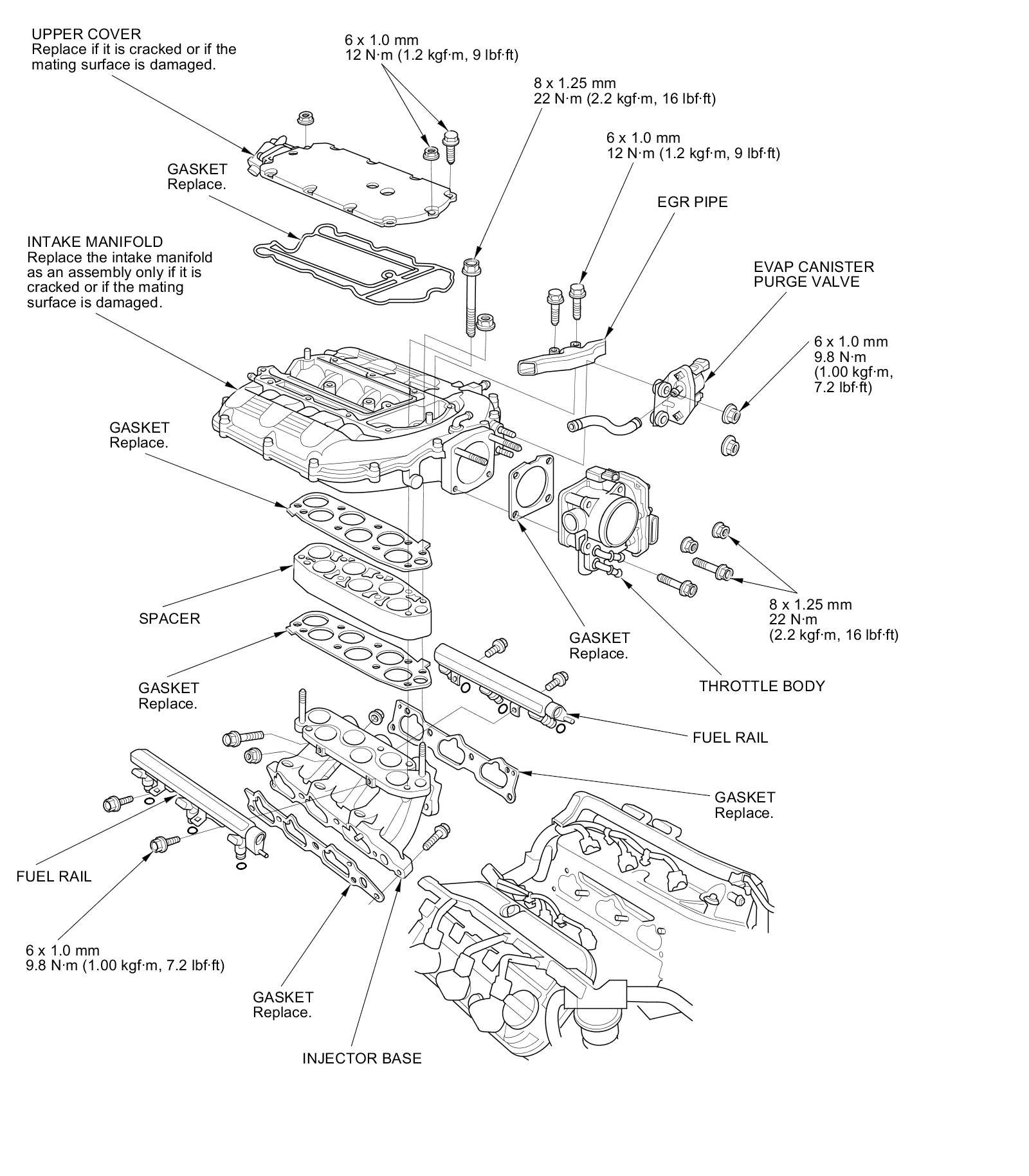

Exploded View
Intake Manifold Torquing:
Tighten the manifold bolts and nuts sequentially in three steps. Always use a new intake manifold gasket.

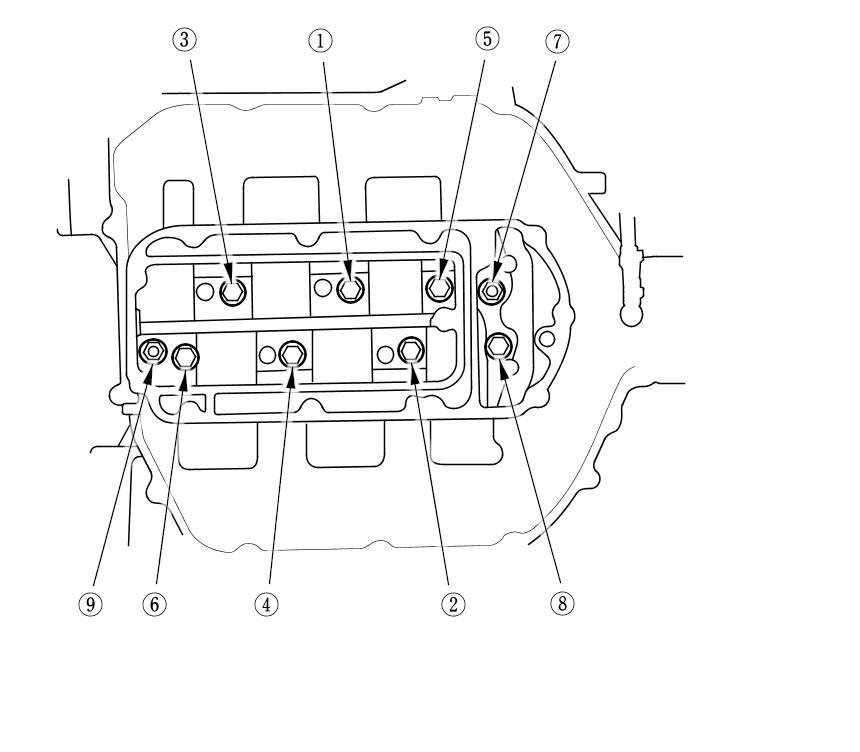

Tighten the upper cover bolts and nuts sequentially in three steps. Always use a new gasket.
