Transfer Assembly: Reassembly

Special Tools Required

• Driver Handle, 40 mm I.D. 07746-0030100
• Driver Handle, 15 x 135L 07749-0010000
• Attachment, 65 mm 07JAD-SH30100
• Flange Holder 07XAB-0010101
• Attachment, 78 x 80 mm 07NAD-PX40100

1. Select the 40 mm thrust shim if the transfer output shaft (hypoid gear) is replaced. Calculate the thickness of the 40 mm thrust shim using the following formula, and select the shim from the following table.

   FORMULA: A/100 - B/100 + C = X

   A: Number on the existing transfer output shaft (hypoid gear)

   B: Number on the replacement transfer output shaft (hypoid gear)

   C: Thickness of the existing 40 mm thrust shim

   X: Thickness needed for the replacement 40 mm thrust shim

   NOTE: The number on the transfer output shaft (hypoid gear) is shown in 1/100 mm.

   EXAMPLE

   A: Existing transfer output shaft (hypoid gear) Numbers +2

   B: Replacement transfer output shaft (hypoid gear) Numbers -1

   C: Existing 40 mm thrust shim thickness = 1.05 mm

   X: Replacement 40 mm thrust shim thickness

   X = A/100-B/100+C

   = 2/100-(-1)/100+1.05

   = 0.02+0.01 + 1.05 = 1.08 (mm)

   Select No. M 40 mm thrust shim of 1.08 mm (0.043 in)

   Fig 1: Identifying Transfer Output Shafts And Shims

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   THRUST SHIM, 40 mm

   THRUST SHIM REFERENCE CHART



   Shim No.	Thickness
   A	0.72 mm (0.028 in)
   B	0.75 mm (0.030 in)
   C	0.78 mm (0.031 in)
   D	0.81 mm (0.032 in)
   E	0.84 mm (0.033 in)
   F	0.87 mm (0.034 in)
   G	0.90 mm (0.035 in)
   H	0.93 mm (0.037 in)
   I	0.96 mm (0.038 in)
   J	0.99 mm (0.039 in)
   K	1.02 mm (0.040 in)
   L	1.05 mm (0.041 in)
   M	1.08 mm (0.043 in)
   N	1.11 mm (0.044 in)
   O	1.14 mm (0.045 in)

2. Select the 40 mm thrust shim if the tapered roller bearing on the transfer output shaft (hypoid gear) is replaced. Measure the thickness of the replacement bearing and the existing bearing, and calculate the difference of the bearing thickness. Adjust the thickness of the existing 40 mm thrust shim by the amount of difference in bearing thickness, and select the replacement 40 mm thrust shim.

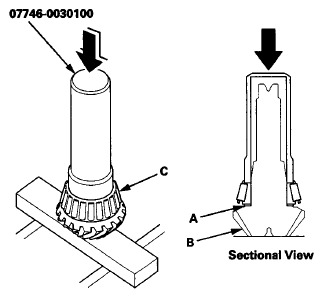

3. Install the 40 mm thrust shim (A) on the transfer output shaft (hypoid gear) (B), then install the tapered roller bearing (C) using the driver handle (40 mm I.D.) and a press.
   Fig 2: Installing 40 mm Thrust Shim On Transfer Output Shaft (Hypoid Gear)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Place the tapered roller bearing (A) on the tapered roller bearing outer race of the companion flange side of the transfer housing, and install a new oil seal (B).
   Fig 3: Identifying Tapered Roller Bearing And Oil Seal

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Drive the oil seal securely in the transfer housing using the driver handle (15 x 135L) and the attachment (65 mm).
   Fig 4: Driving Oil Seal Securely In Transfer Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the transfer output shaft (hypoid gear) (A) in the transfer housing (B). Do not install the transfer spacer and thrust washer on the transfer output shaft (hypoid gear).
   Fig 5: Identifying Transfer Output Shaft (Hypoid Gear) In Transfer Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the companion flange (A), the conical spring washer (B) (in the direction shown), and the locknut (C) on the transfer output shaft (hypoid gear) (D). Do not install the O-ring and back-up ring.
   Fig 6: Direction Of Installing Companion Flange And Conical Spring Washer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

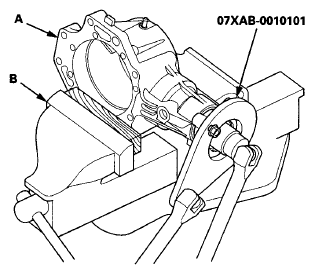

8. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damaging the transfer housing, always use soft jaws or equivalent materials between the transfer housing and a vise.
   Fig 7: Securing Transfer Housing In Bench Vise Using Soft Jaws

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Install the flange holder on the companion flange.
10. Tighten the locknut while measuring the starting torque of the transfer output shaft (hypoid gear) so the starting torque is within 1.15-1.71 N.m (11.7-17.4 kgf.cm, 10.2-15.1 lbf.in). Do not stake the locknut in this step.
11. Remove the flange holder.
12. Apply Prussian Blue to both sides of the transfer hypoid drive gear teeth lightly and evenly.

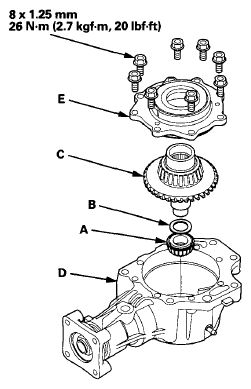

13. Install the tapered roller bearing (A), the 25 mm thrust shim (B), and the transfer drive gear/shaft assembly (C) in the transfer housing (D).
    Fig 8: Identifying Tapered Roller Bearing, 25 mm Thrust Shim And Transfer Drive Gear/Shaft Assembly In Transfer Housing

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Install the transfer cover (E) and secure the cover with the bolts. Do not install the O-ring on the transfer cover.
15. Rotate the companion flange in both directions until the transfer gears rotate one full turn in both directions.

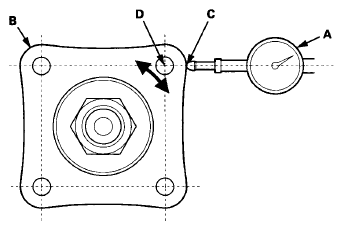

16. Set a dial indicator (A) on the transfer companion flange (B); position dial indicator tip (C) on the direct extension of the bolt hole center (D).
    Fig 9: Measuring Transfer Gear Backlash

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
17. Measure the transfer gear backlash.

    Standard: 0.06-0.17 mm (0.002-0.007 in)

18. Remove the transfer cover, the transfer hypoid drive gear/shaft assembly, and check the transfer hypoid drive gear tooth contact pattern.

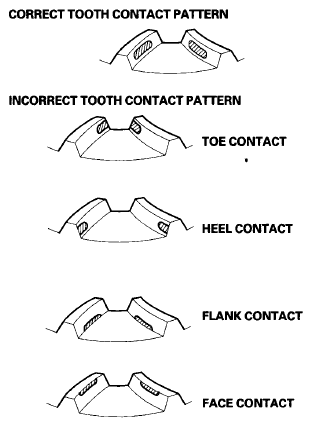

    Fig 10: Identifying Correct And Incorrect Tooth Contact Pattern

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
19. If the backlash measurement is out of the standard, adjust the backlash with the 40 mm thrust shim and recheck. Do not use more than two 40 mm thrust shims to adjust the transfer gear backlash.
20. If the transfer gear tooth contact is incorrect, adjust the transfer gear tooth contact with the 25 mm, 40 mm, or 80 mm thrust shim. Do not use more than two shims of each thrust shim to adjust the tooth contact,
    • Toe Contact

      Use a thinner 40 mm thrust shim to move the transfer output shaft (hypoid gear) away from the transfer hypoid drive gear. Because this movement causes the transfer gear backlash to change, move the transfer hypoid drive gear toward the transfer output shaft (hypoid gear) to adjust the transfer gear backlash as follows:

      • Reduce the thickness of the 25 mm thrust shim.
      • Increase the thickness of the 80 mm thrust shim by amount the 25 mm thrust shim was reduced.
    • Heel Contact

      Use a thicker 40 mm thrust shim to move the transfer output shaft (hypoid gear) toward the transfer hypoid drive gear. Because this movement causes the transfer backlash to change, move the transfer hypoid drive gear away from the transfer output shaft (hypoid gear) to adjust the transfer gear backlash as follows:

      • Increase the thickness of the 25 mm thrust shim.
      • Reduce the thickness of the 80 mm thrust shim by the amount the 25 mm thrust shim was reduced.
    • Flank Contact

      Use a thicker 25 mm thrust shim to move the transfer hypoid drive gear away from the transfer output shaft (hypoid gear). Flank contact must be adjusted within the limits of the transfer gear backlash. If the backlash exceeds the limits, adjust as described under Heel Contact.

    • Face Contact

      Use a thinner 25 mm thrust shim to move the transfer hypoid drive gear away from the transfer output shaft (hypoid gear). Face contact must be adjusted within the limits of the transfer gear backlash. If the backlash exceeds the limits, adjust as described under Toe Contact.

    THRUST SHIM, 25 mm

    THRUST SHIM REFERENCE CHART



    Shim No.	Thickness
    1.70	1.70 mm (0.067 in)
    1.73	1.73 mm (0.068 in)
    1.76	1.76 mm (0.069 in)
    1.79	1.79 mm (0.070 in)
    1.82	1.82 mm (0.072 in)
    1.85	1.85 mm (0.073 in)
    1.88	1.88 mm (0.074 in)
    1.91	1.91 mm (0.075 in)
    1.94	1.94 mm (0.076 in)
    1.97	1.97 mm (0.078 in)
    2.00	2.00 mm (0.079 in)
    2.03	2.03 mm (0.080 in)
    2.06	2.06 mm (0.081 in)
    2.09	2.09 mm (0.082 in)
    2.12	2.12 mm (0.083 in)
    2.15	2.15 mm (0.085 in)
    2.18	2.18 mm (0.086 in)
    2.21	2.21 mm (0.087 in)
    2.24	2.24 mm (0.088 in)

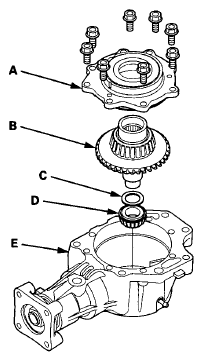

21. Remove the transfer cover (A), the transfer hypoid drive gear/shaft assembly (B), the 25 mm thrust shim (C), and the tapered roller bearing (D) from the transfer housing (E) after adjusting the transfer gear backlash or transfer gear tooth contact.
    Fig 11: Identifying Transfer Cover, Transfer Hypoid Drive Gear/Shaft Assembly And 25 mm Thrust Shim

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. Secure the transfer housing (A) in a bench vise (B) with soft jaws, then install the flange holder on the companion flange. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.
    Fig 12: Securing Transfer Housing In Bench Vise Using Soft Jaws

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

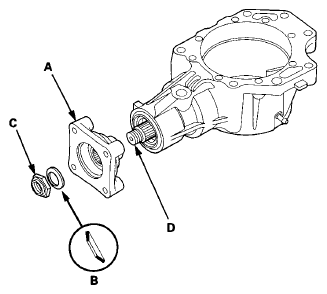

23. Remove the locknut (A), the conical spring washer (B), and the companion flange (C) from the transfer output shaft (hypoid gear) (D).
    Fig 13: Identifying Locknut, Conical Spring Washer And Companion Flange

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
24. Remove the transfer output shaft (hypoid gear) from the transfer housing.

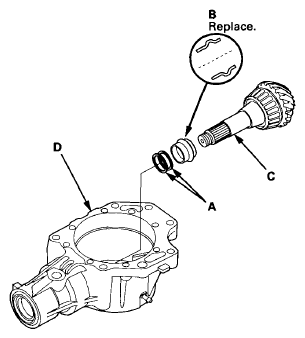

25. Install the two thrust washers (A) and a new transfer spacer (B) on the transfer output shaft (hypoid gear) (C) in the direction shown, and install them in the transfer housing (D).
    Fig 14: Direction Of Installing Thrust Washers, Transfer Spacer On Transfer Output Shaft (Hypoid Gear)

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
26. Coat the threads of the locknut and transfer output shaft (hypoid gear) with transfer fluid (hypoid gear oil).

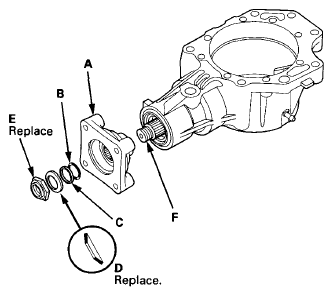

27. Install the companion flange (A), a new O-ring (B), back-up ring (C), a new conical spring washer (D), and a new locknut (E) on the transfer output shaft (hypoid gear) (F). Install the conical spring washer in the direction shown.
    Fig 15: Direction Of Installing Conical Spring Washer

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

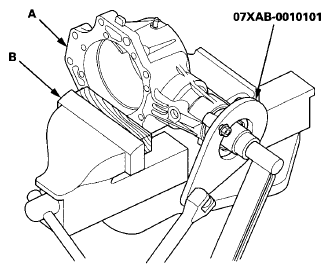

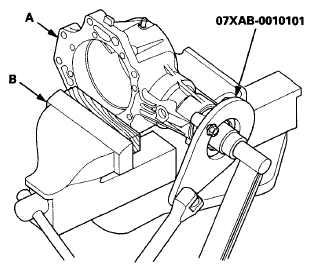

28. Secure the transfer housing (A) in a bench vise (B) with soft jaws, then install the flange holder on the companion flange. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.
    Fig 16: Securing Transfer Housing In Bench Vise Using Soft Jaws

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
29. Tighten the locknut while measuring the starting torque of the transfer output shaft (hypoid gear) so the starting torque is within 1.15-1.71 N.m (11.7-17.4 kgf.cm, 10.2-15.1 lbf.in).

    Tightening Torque:

    108-294 N.m (11.0-30.0 kgf.m, 79.6-217 lbf.ft)

    Starting Torque: 1.15-1.71 N.m (11.7-17.4 kgf.cm, 10.2-15.1 lbf.in)

    NOTE:

    • Rotate the companion flange several times to seat the tapered roller bearings, then measure the starting torque.
    • If the starting torque exceeds 1.71 N.m (17.4 kgf.cm, 15.1 lbf.in), replace the transfer spacer and reassemble the parts. Do not adjust the torque with the locknut loose.
    • If the tightening torque exceeds 294 N.m (30.0 kgf.m, 217 lbf.ft), replace the transfer spacer and reassemble the parts.
30. Remove the flange holder.

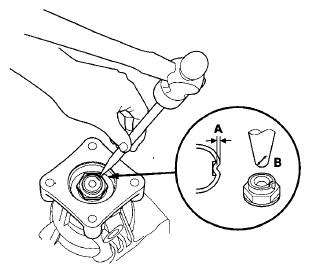

31. Stake the locknut to a depth (A) of 0.7-1.2 mm (0.03-0.05 in) using a 3.5 mm punch (B).
    Fig 17: Staking Locknut

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

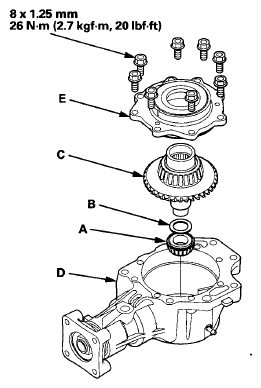

32. Install the tapered roller bearing (A), the 25 mm thrust shim (B), and the transfer hypoid drive gear/shaft assembly (C) in the transfer housing (D).
    Fig 18: Tapered Roller Bearing, 25 mm Thrust Shim And Transfer Hypoid Drive Gear/Shaft Assembly With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
33. Temporarily install the transfer cover (E) without the O-ring. Install and tighten the bolts.

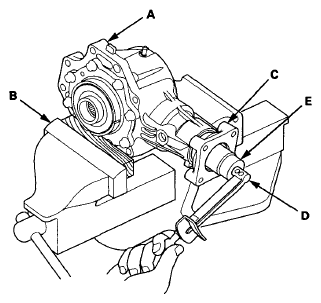

34. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.
    Fig 19: Securing Transfer Housing In Bench Vise Using Soft Jaws

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
35. Rotate the transfer companion flange (C) several times to seat the tapered roller bearings.
36. Measure the starting torque at the companion flange using a torque wrench (D) and a socket (E).

    Total Starting Torque:

    3.20-4.16 N.m (32.6-42.4 kgf.cm, 28.3-36.8 lbf.in).

37. Calculate the transfer hypoid drive gear/shaft starting torque using the following formula.

    Transfer Hypoid Drive Gear/Shaft Starting Torque Formula:

    A - B = X

    A: Actual total starting torque (measured in step 36)

    B: Actual transfer output shaft (hypoid gear) starting torque (measured in step 29)

    X: Transfer hypoid drive gear/shaft starting torque

38. Check that the calculated transfer hypoid drive gear/shaft starting torque is within the following reference value range.

    Reference Value Range of Transfer Hypoid Drive Gear/Shaft Starting Torque:

    1.49-3.01 N.m

    (15.2-30.6 kgf.cm, 13.2-26.6 lbf.in)

    • If the calculated transfer hypoid drive gear/shaft starting torque is within the reference value range, remove the transfer cover from the transfer housing, then go to  44.
    • If the calculated transfer hypoid drive gear/shaft starting torque is out of the reference value range, go to  39.
39. Remove the tapered roller bearing outer race (A) and the 80 mm thrust shim (B) from the transfer cover (C). If the tapered roller bearing outer race is press-fitted, remove the tapered roller bearing outer race by heating the transfer cover to about 212 °F (100 °C) using a heat gun (D). Do not heat the transfer cover more than 212 °F (100 °C).
    NOTE: Let the transfer cover cool to room temperature before adjusting the bearing preload.
