2012 Honda Ridgeline RTFACTORY OEM SERVICE PROCEDURE

Back Power Window Position Switch Test

Remove the rear panel trim (see REAR PANEL INSULATOR REPLACEMENT ).
Disconnect the 2P connector (A) from the back power window position switch (B).

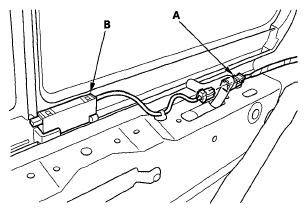

Fig 1: Identifying Back Power Window Position Switch 2P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each back power window position according to the table.

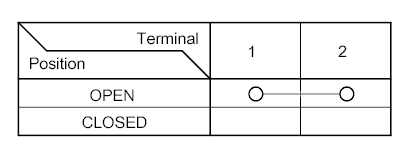

Fig 2: Terminal Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
