2012 Honda Pilot 4WD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Power Mirror Control Module: Service and Repair
Power Mirror Control Unit Input Test/Replacement
1. Turn the ignition switch to LOCK (0).
2. Remove the driver's door panel Service and Repair.

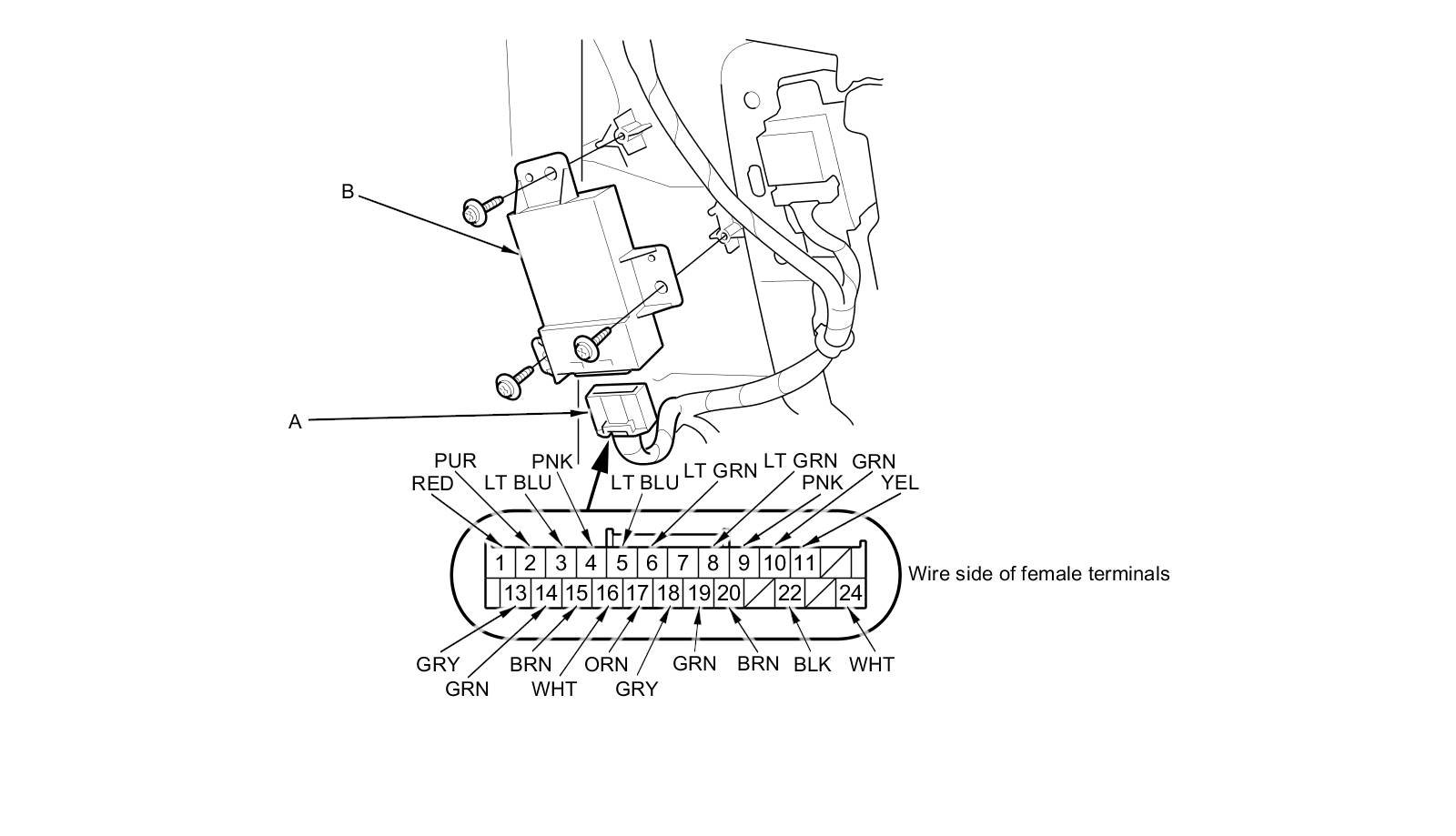

3. Disconnect the 24P connector (A) from the power mirror control unit (B).
4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

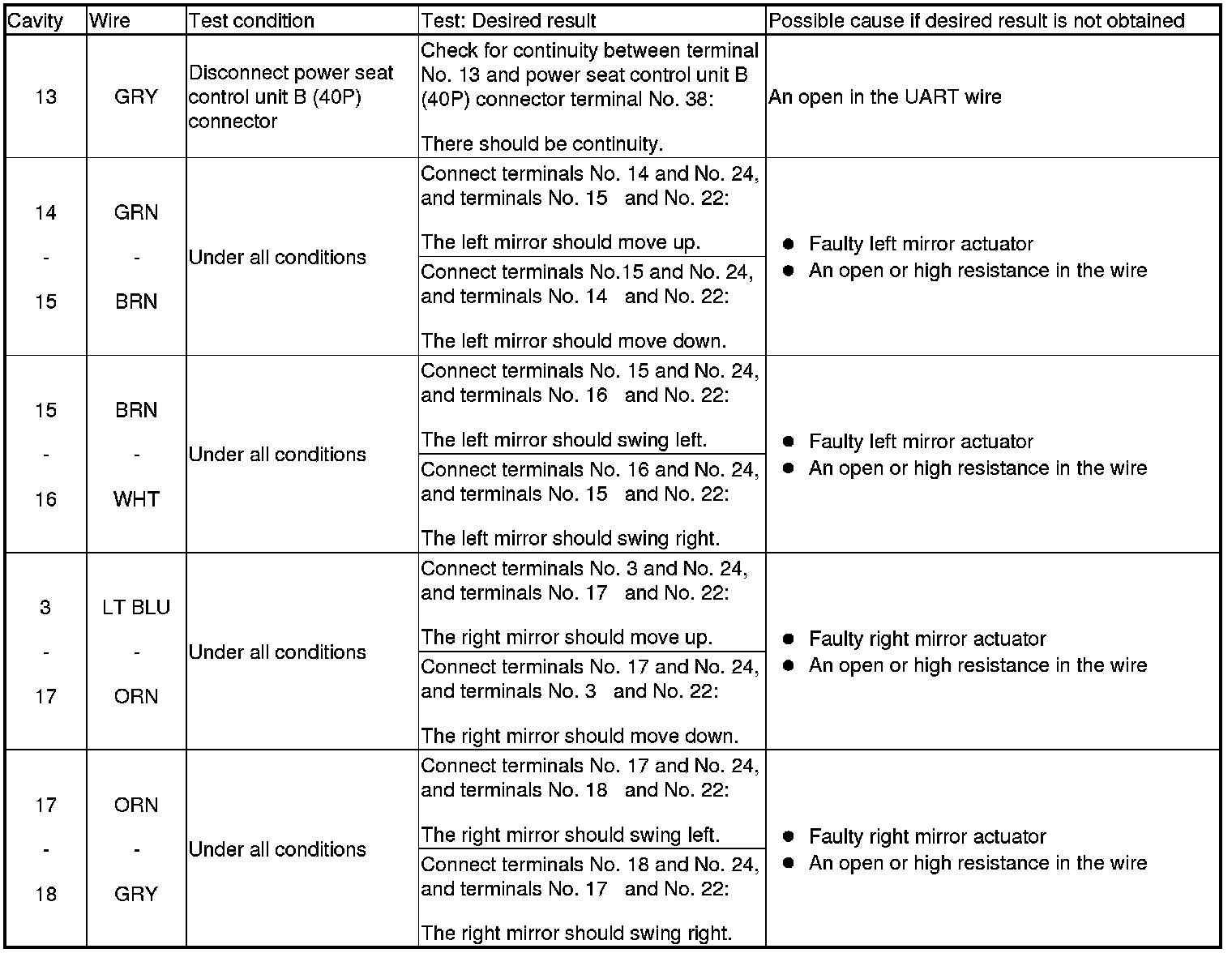

5. With the connector still disconnected, do the following input tests.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

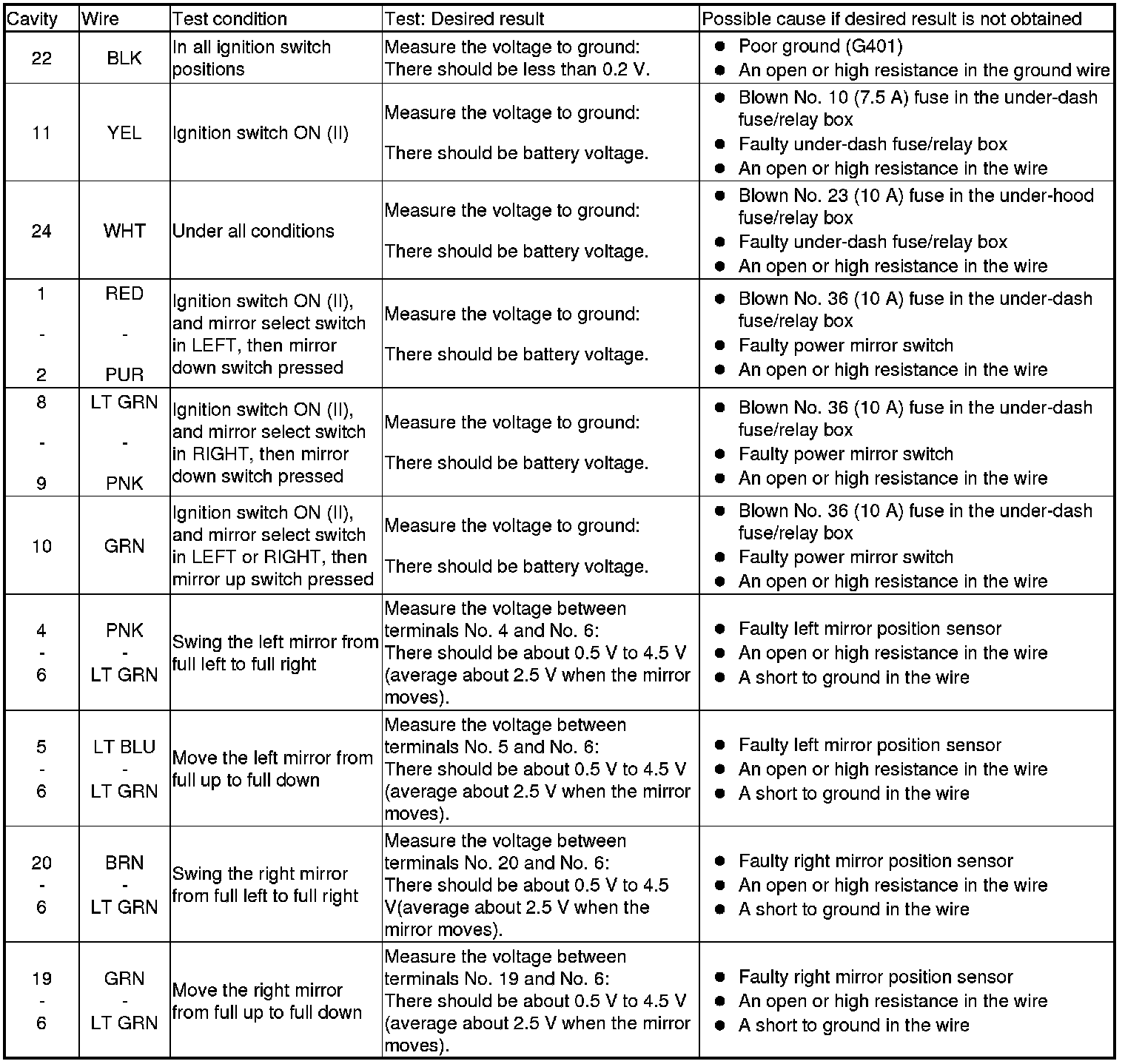

6. Reconnect the connector to the power mirror control unit, and do the following input tests.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.
