2012 Honda Pilot 2WD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Spark Plug: Service and Repair
Ignition Coil and Spark Plug Removal/Installation
1. Remove the engine cover.

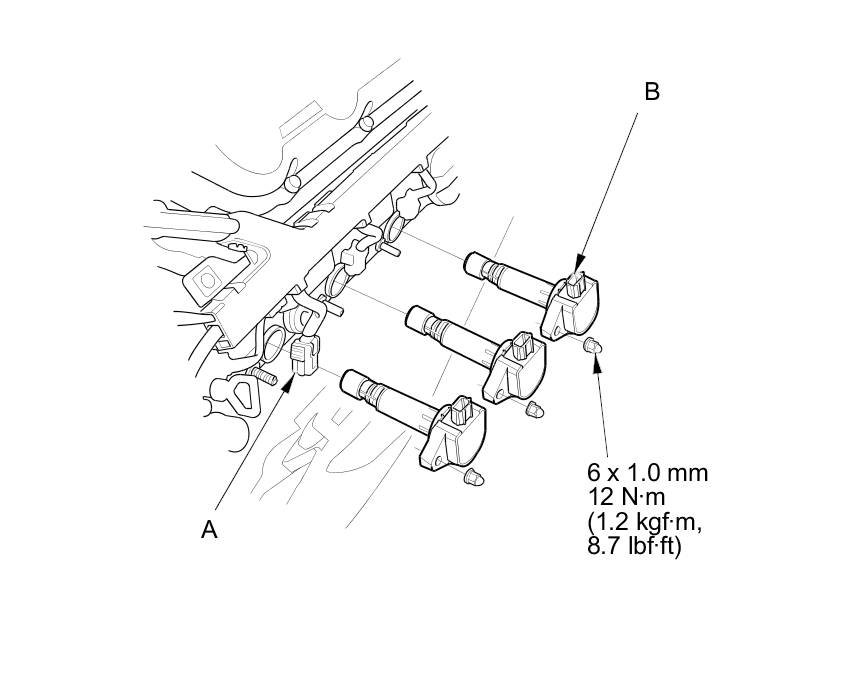

2. Disconnect the ignition coil connectors (A), then remove the ignition coils (B).
FRONT
REAR
3. Remove the spark plugs and inspect them Testing and Inspection.
4. Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight, then tighten the plugs to the specified torque.
5. Install the ignition coils in the reverse order of removal.
