2012 Honda Pilot 2WD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Engine Oil: Service and Repair
Engine Oil Replacement
1. Allow the engine to reach operating temperature (fan comes on at least twice).

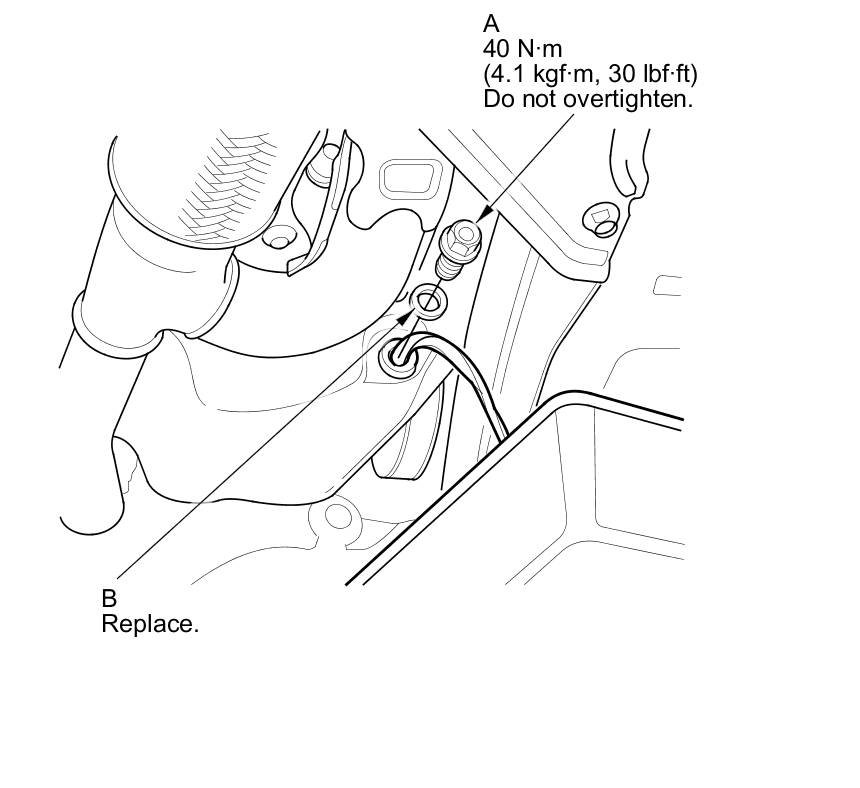

2. Remove the drain bolt (A), and drain the engine oil.
3. Reinstall the drain bolt with a new washer (B) and torque to specification.

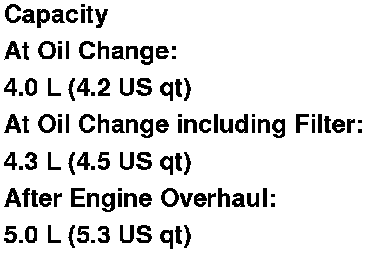

4. Refill the engine with the recommended engine oil. [1][2]Fluids
5. Run the engine for more than 3 minutes, then check the oil level Testing and Inspection and the oil leakage.
6. If the Maintenance Minder required engine oil replacement, reset the Maintenance Minder; information display Maintenance Minder General Information - Information Display, multi-information display Maintenance Minder General Information - Multi-Information Display, and this procedure is complete. If the Maintenance Minder did not require engine oil replacement, go to step 7.
7. Turn the ignition switch to LOCK (0).
8. Connect the HDS to the DLC.
9. Turn the ignition switch to ON (II).
10. Make sure the HDS communicates with the vehicle and the PCM. If it does not communicate, troubleshoot the DLC circuit Testing and Inspection.
11. Select GAUGES in the BODY ELECTRICAL with the HDS.
12. Select ADJUSTMENT in the GAUGES with the HDS.
13. Select MAINTENANCE MINDER in the ADJUSTMENT with the HDS.
14. Select RESET in the MAINTENANCE MINDER with the HDS.
15. Select RESETTING THE ENGINE OIL LIFE with the HDS.
NOTE: If you changed the ATF at the same time with the engine oil, select RESETTING THE ENGINE OIL LIFE AND ATF with the HDS instead.
