2012 Honda Pilot 2WD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Memory Positioning Switch: Service and Repair
Driving Position Memory Switch Test/Replacement
1. Remove the driver's door panel Service and Repair.

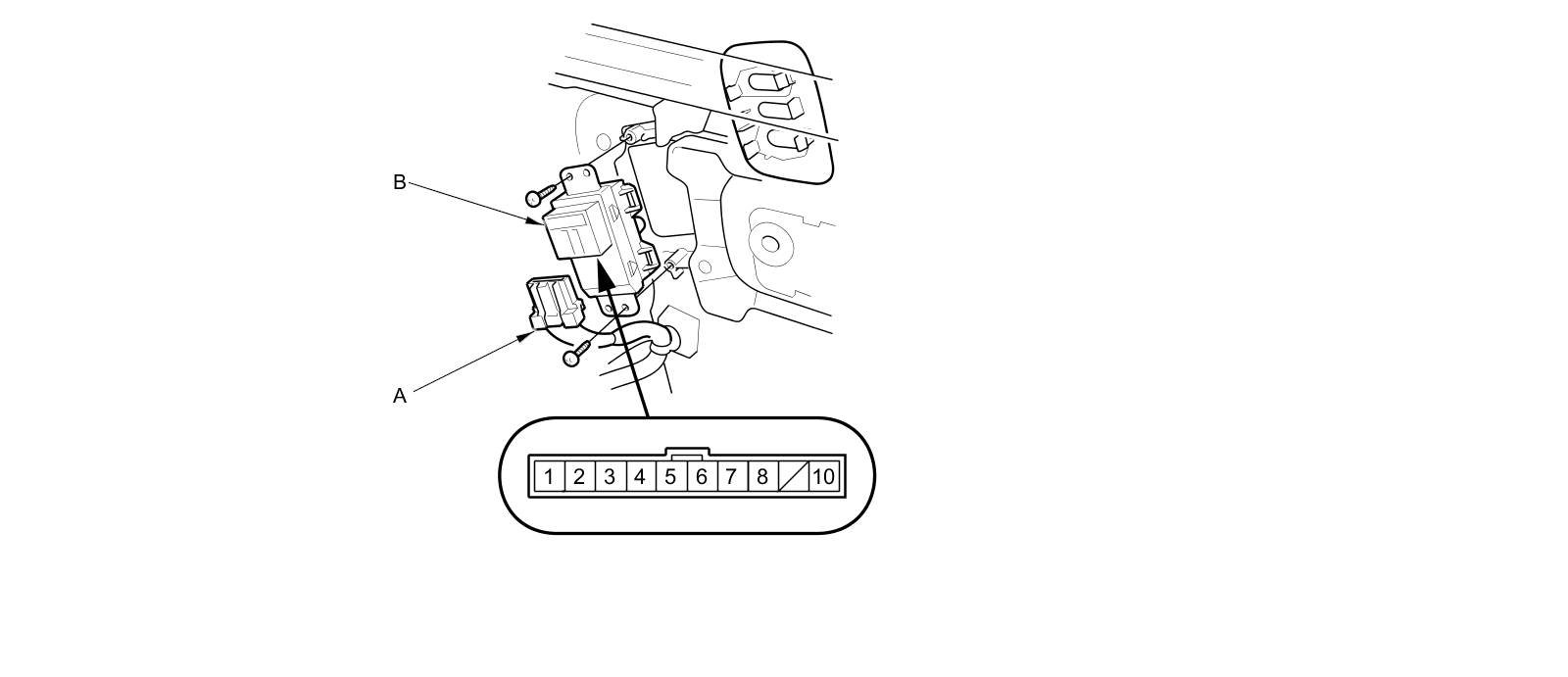

2. Disconnect the 10P connector (A) from the driving position memory switch (B).
3. Remove the two screws, then remove the switch from the door panel.
4. Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting () on the digital volt/ohm meter to check the diode bias.
- Be careful of this characteristic; a diode is one that conducts fully in one direction (forward) and not at all in the opposite direction (reverse).
5. If the continuity is not as specified, replace the switch.
